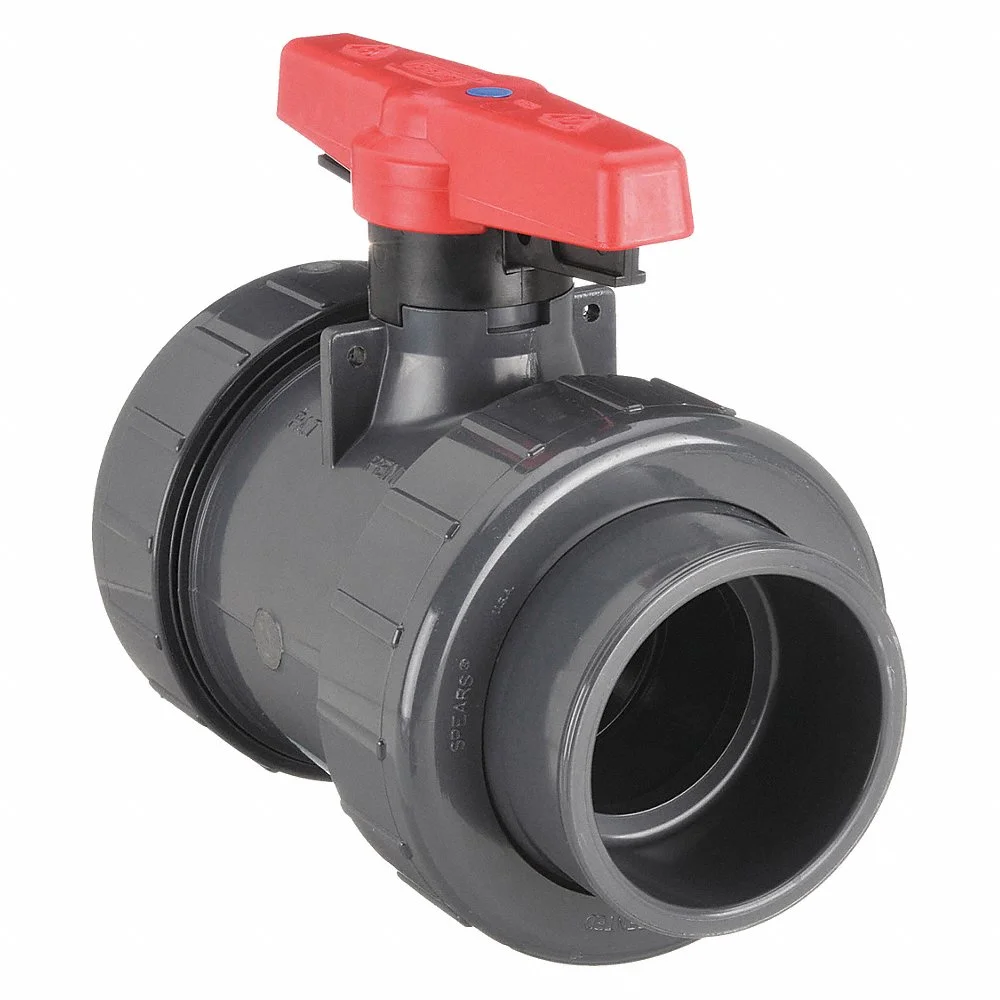

SPEARS VALVES 1822-040 Industrial Ball Valve, 4 Size, PVC, Socket End, EPDM
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,694.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | PVC |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | PVC |
| Coefficient Of Volume | 2865 |
| Connection Size - Side 1 | 4" |
| Connection Size - Side 2 | 4" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | Socket |
| Connection Type - Side 2 | Socket |
| Handle | Locking Tee |
| Handle Height | 6 3/4" |
| Handle Length | 9" |
| Handle Material | Polypropylene |
| Handle Type | Locking Tee |
| Max. Pressure | 235 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 235 psi |
| Media Temperature Range | 73°F to 140°F |
| Nominal Valve Size | 4" |
| Number Of Pieces | 2 |
| Overall Length | 11.88" |
| Pipe Size | 4" |
| Port | Full |
| Pressure For Water | 235 psi WOG |
| Product Datasheet | spears-valves-1822-040.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Standards | Astm F1970 |
| Stem Material | PVC |
| Stem Type | Safe T Shear |
| Temp. Range | +73°F to +140°F |
| Valve Body Color | Gray |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
Shipping Info:
| Ship weight (kg) | 6.19 |
| Ship height (cm) | 31.24 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 21.59 |
| HS code | 8481805090 |
| Country of Origin | US |
Documentation:
