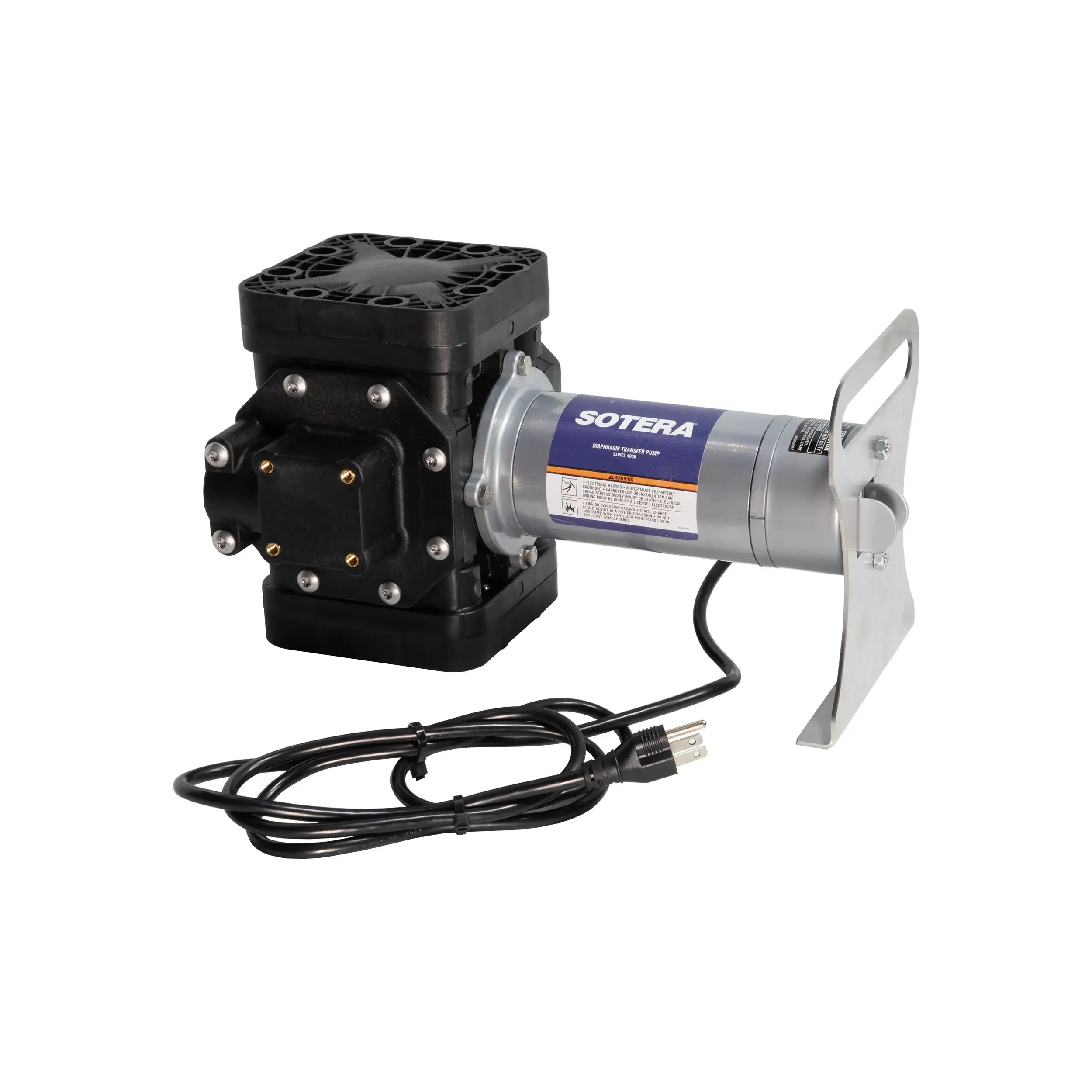

SOTERA SS460BX731 Electric Drum Pump Diaphragm 1/4 Hp
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,049.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Application | Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics |
| Compatible Chemicals | Fertilizers, Fungicides, Herbicides, Motor Oil |
| Def Compatible | Yes |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | NPT |
| Discharge Tube Inside Dia. | 3/4" |
| Discharge Tube Outlet I.d. | 3/4" |
| Discharge Tube Outlet O.d. | 1" |
| Discharge Tube Outside Dia. | 1" |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Fits Container Size | 55 gal. |
| Flow Rate | 15 GPM |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Fertilizers, Fungicides, Herbicides, Motor Oil |
| For Use On | Chemicals |
| For Use With | Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents |
| Frequency | 60 Hz |
| Full Load Amps | 2.5A |
| Gasket Material | Fluorocarbon |
| Hose Inside Dia. | 3/4" |
| Housing Material | Glass Filled Polypropylene |
| Housing Material - Pumps | Polypropylene |
| Includes | Pump Only |
| Includes Bung Adapter | No |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 16 1/4" |
| Max. Flow Rate | 13 GPM |
| Max. Flow Rate For Oil | 12 GPM |
| Max. Flow Rate For Water | 15 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Gpm For Oil | 12 GPM |
| Max. Gpm For Water | 15 GPM |
| Max. Head | 34 ft. |
| Max. Outlet Pressure | 15 psi |
| Max. Pressure | 15 psi |
| Max. Temp. | 130°F |
| Max. Viscosity | 3000 cPS |
| Media Type | Fertilizers, Fungicides, Herbicides, Motor Oil |
| Metered | No |
| Motor Enclosure | Tenv |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Hp | 1/4 hp |
| Motor Speed | 3450 RPM |
| Motor Type | Capacitor Start |
| Noise Level | 77 dBA |
| Noise Level | 77 dB |
| Nominal Voltage | 110V AC |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Length | 16 1/4" |
| Ph Range | 3.6 pH to 11.9 pH |
| Phase | 1 |
| Piston Material | Santoprene |
| Power Source | Electric |
| Pump Connection I.d. | 1" |
| Pump Connection Inside Dia. | 1" |
| Pump Connection O.d. | 1 1/4" |
| Pump Connection Outside Dia. | 1 1/4" |
| Pump Connection Type | FNPT |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Rated Voltage | 115V |
| Runs Dry | Yes |
| Seal Material | Fluorocarbon |
| Series | 400 Series |
| Variable Speed | No |
| Voltage Rating | 115V AC |
| Wetted Material | Fluorocarbon, Polypropylene, Santoprene, Stainless Steel |
| Wetted Materials | Fluorocarbon, Polypropylene, Santoprene, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 9.47 |
| Ship height (cm) | 37.34 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 31.5 |
| HS code | 8413110000 |
| Country of Origin | US |
Product Details:
- DEF Compatible (Yes)
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Food Grade | Diesel Exhaust Fluid Compatible | Max. Temp. | Inlet Size | Includes Discharge Hose | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1DLP4 | 55 gal. | 32 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €2,017.98 | |
 |
1DLP5 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €2,196.09 | |
 |
1DLP8 | 55 gal. | 15 GPM | 1500 cPS | No | No | 130°F | 1 3/5" | Yes | €1,966.25 | |
 |
1DLR1 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €3,004.15 | |
 |
1DLR3 | 55 gal. | 13 GPM | 300 cPS | No | - | 130°F | 1 3/5" | Yes | €4,412.74 | |
 |
1DLR4 | 55 gal. | 13 GPM | 300 cPS | No | No | 130°F | 1 3/5" | Yes | €4,905.15 | |
 |
1DLR5 | 55 gal. | 13 GPM | 300 cPS | No | No | 175°F | 1 3/5" | Yes | €8,290.17 |
