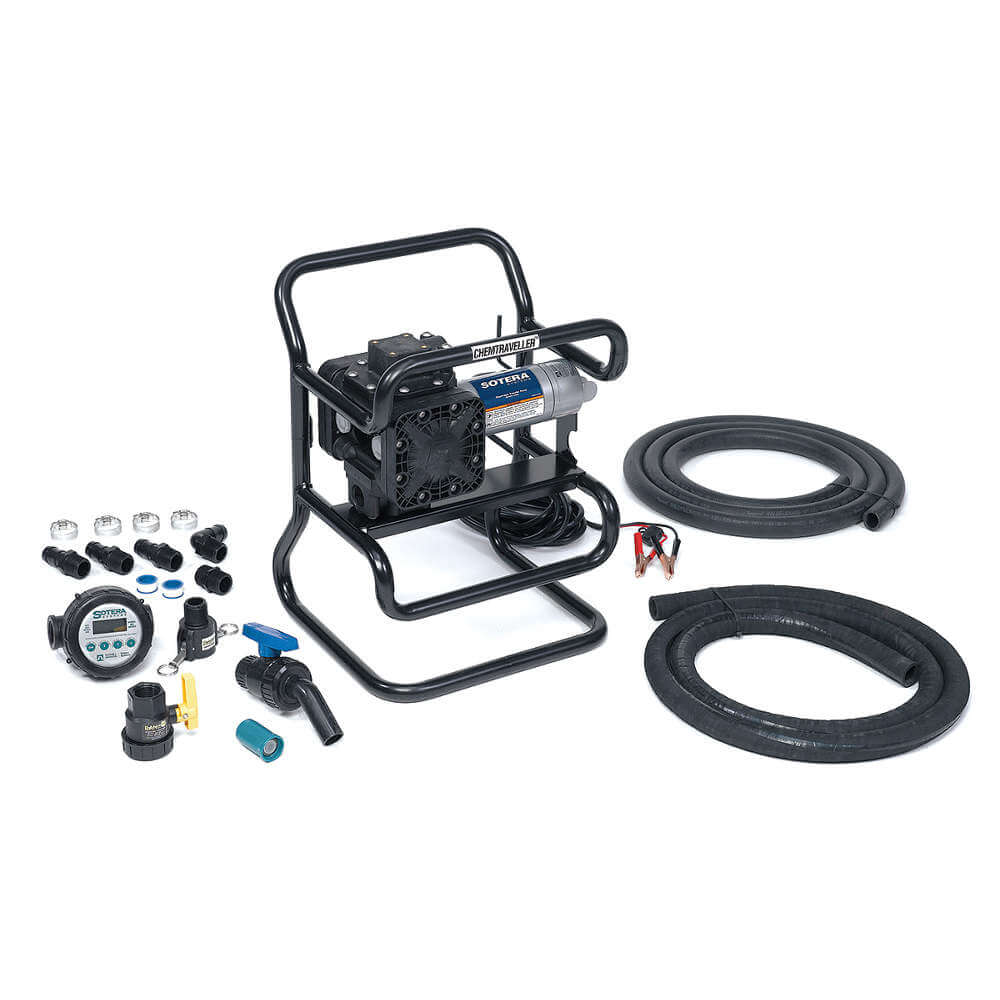

SOTERA SS435B Drum Pump Diaphragm 1/4 Hp 12vdc
Get it by Tuesday, Dec 23
10.00% off
€2,113.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Application | Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics |
| Compatible Chemicals | Fertilizers, Fungicides, Herbicides, Motor Oil |
| Def Compatible | Yes |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | NPT |
| Discharge Tube Inside Dia. | 3/4" |
| Discharge Tube Outlet I.d. | 3/4" |
| Discharge Tube Outlet Id Size | 1" |
| Discharge Tube Outlet O.d. | 1" |
| Discharge Tubing Material | EPDM |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Fits Container Size | 55 gal. |
| Flow Rate | 15 GPM |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Fertilizers, Fungicides, Herbicides, Motor Oil |
| For Use On | Chemicals |
| For Use With | Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents |
| Frequency | 60 Hz |
| Full Load Amps | 20A |
| Gasket Material | Fluorocarbon |
| Hose Cover Material | EPDM |
| Hose I.d. | 3/4" |
| Hose Inside Dia. | 3/4" |
| Hose Length | 12 ft. |
| Hose Material | EPDM |
| Hose Outside Dia. | 1" |
| Hose Tube Material | EPDM |
| Housing Material | Glass Filled Polypropylene |
| Housing Material - Pumps | Polypropylene |
| Includes | 1" Ball Valve, 1" Ball Valve Nozzle, 1" Female Camlock Coupler With 1" NPT Male Threads, 1" NPT 90° Outlet Flange, 20 ft Battery Cable With Clips, 30A Fuse, 825 Digital Meter, Anti-Drip Tip |
| Includes Bung Adapter | No |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 22 1/2" |
| Max. Flow Rate | 13 GPM |
| Max. Flow Rate For Oil | 12 GPM |
| Max. Flow Rate For Water | 15 GPM |
| Max. Fluid Temp. | 130°F |
| Max. Gpm For Oil | 12 GPM |
| Max. Gpm For Water | 15 GPM |
| Max. Head | 34 ft. |
| Max. Outlet Pressure | 15 psi |
| Max. Pressure | 15 psi |
| Max. Temp. | 130°F |
| Max. Viscosity | 3000 cPS |
| Media Type | Fertilizers, Fungicides, Herbicides, Motor Oil |
| Metered | Yes |
| Motor Enclosure | Tenv |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Hp | 1/4 hp |
| Motor Speed | 360-2600 RPM |
| Motor Type | DC Permanent Magnet |
| Noise Level | 77 dBA |
| Noise Level | 77 dB |
| Nominal Voltage | 12V DC |
| Nozzle Operation | Manual |
| Operation Type | Manual |
| Outlet Material | EPDM |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Length | 22 1/2" |
| Ph Range | 3.6 pH to 11.9 pH |
| Phase | 1 |
| Piston Material | Santoprene |
| Power Source | Electric |
| Pump Connection I.d. | 1" |
| Pump Connection Inside Dia. | 1" |
| Pump Connection O.d. | 1 1/4" |
| Pump Connection Outside Dia. | 1 1/4" |
| Pump Connection Type | FNPT |
| Pump Package Type | Metered Dispensing With Manual Shut-Off |
| Runs Dry | Yes |
| Seal Material | Fluorocarbon |
| Series | 400 Series |
| Variable Speed | No |
| Voltage Rating | 12V DC |
| Wetted Material | Fluorocarbon, Polypropylene, Santoprene, Stainless Steel |
| Wetted Materials | Fluorocarbon, Polypropylene, Santoprene, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 20.88 |
| Ship height (cm) | 38.86 |
| Ship length (cm) | 57.4 |
| Ship width (cm) | 54.61 |
| HS code | 8413110000 |
| Country of Origin | US |
Product Details:
- DEF Compatible (Yes)
Product Variants
| Product | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Food Grade | Diesel Exhaust Fluid Compatible | Max. Temp. | Inlet Size | Includes Discharge Hose | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1DLP4 | 55 gal. | 32 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €2,017.98 | |
 |
1DLP5 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €2,196.09 | |
 |
1DLP8 | 55 gal. | 15 GPM | 1500 cPS | No | No | 130°F | 1 3/5" | Yes | €1,966.25 | |
 |
1DLR1 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | €3,004.15 | |
 |
1DLR3 | 55 gal. | 13 GPM | 300 cPS | No | - | 130°F | 1 3/5" | Yes | €4,412.74 | |
 |
1DLR4 | 55 gal. | 13 GPM | 300 cPS | No | No | 130°F | 1 3/5" | Yes | €4,905.15 | |
 |
1DLR5 | 55 gal. | 13 GPM | 300 cPS | No | No | 175°F | 1 3/5" | Yes | €8,290.17 |
