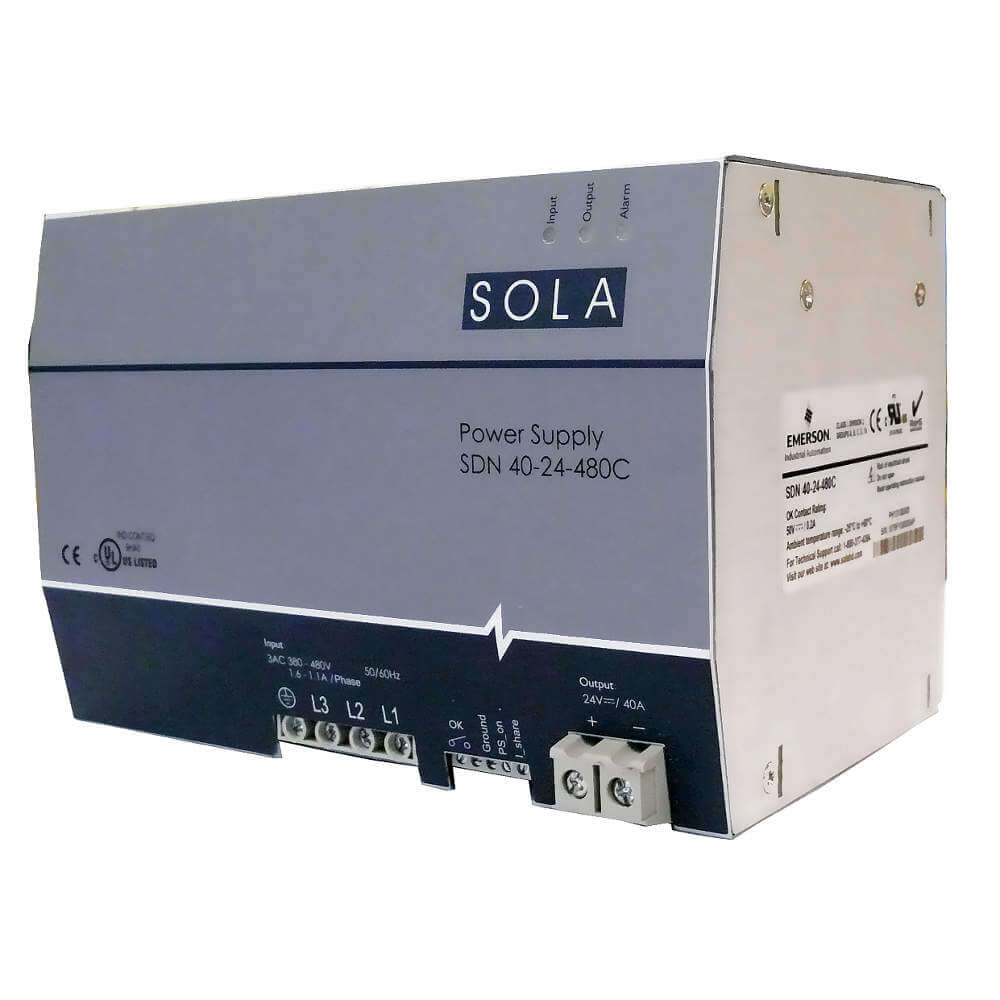

SOLA/HEVI-DUTY SDN40-24-480C Dc Power Supply 24vdc 40a 47-63hz
Item: AA2GBXModel: SDN40-24-480CCross Ref: 10G790
7 In Stock
Ships within 2 days via
10.00% off
€1,408.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Redundant DC Power Supply |
| Case Material | Metal |
| Current - Peak | 45A |
| Depth | 7.09" |
| Frequency | 47-63 Hz |
| Height | 5.51" |
| Hold Up Time | Greater Than 20 ms |
| Hold Up Time | Greater Than 20 msec |
| Hold Up Time - Minimum | 15 ms |
| Housing Material | Metal |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 380-480V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 5 yrs. Limited |
| Mean Time Between Failures (mtbf) | 600000 hrs. |
| Mounting | Din Rail |
| Operating Temp. Range | -25°C to +60°C |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Amps | 40 |
| Output Amps | 40A |
| Output Noise | Less Than 100mV |
| Output Noise | Less Than 100 mV |
| Output Noise - Maximum | 100 mV |
| Output Power - Rated | 960 W |
| Output Voltage | 24V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 4.66" |
| Overall Height | 4.85" |
| Overall Width | 7.09" |
| Peak Amps | 45A |
| Peak Amps | 45 |
| Phase | Three |
| Power Rating | 960 W |
| Power Supply Style | Switching |
| Series | SDN-C Series |
| Special Features | Parallel Capability, Power Boost Function |
| Status Indicator | Green/Yellow/Red LED |
| Status Indicator | LED |
| Style | Switching |
| Width | 11.1" |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 16 AWG |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 18.8 |
| HS code | 8504409540 |
| Country of Origin | PH |
Product Variants
| Product | Model | Hold Up Time | Peak Amps | Mounting | Phase | Input Voltage | Ip Rating | Operating Temp. Range | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

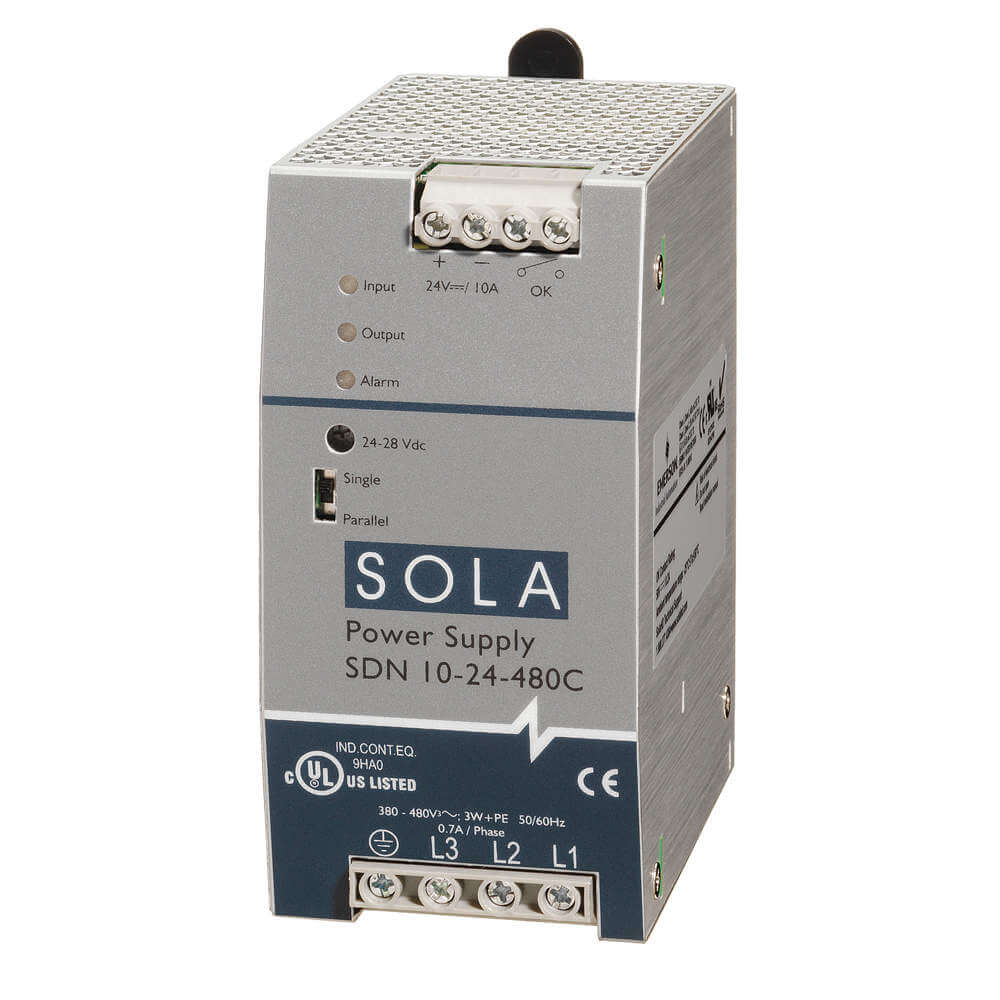

SDN10-24-480C | Greater Than 40 ms | 12A | Din Rail | Three | 380-480V AC | IP20 | -25°C to +60°C | Switching | €750.93 |
