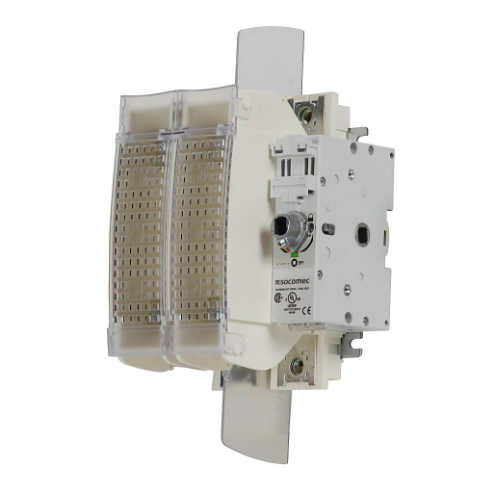

SOCOMEC 38612020 Rotary Disconnect Switch, Fusible, Class J, Load Break Capable, 2-Pole, 600 VAC/250 VDC
Get it by Tuesday, Aug 18
€1,150.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Switch |
| Amps | 200A |
| Cable Entries | Top, Bottom |
| Conditioned Rated Short Circuit Amps | 50 kA |
| Control Element Type | Long Rotary Handle |
| Degree Of Protection | IP20 |
| Depth | 130 mm |
| Electrical Connection Of Main Circuit Type | Bolt Connection |
| Equipped With Connectors | No |
| Error Protection | No |
| Frame Size | 6 |
| Fuse Size | J |
| Fusible | Yes |
| Gross Weight | 5.84 lbs. |
| Length | 195 mm |
| Max. Hp 230/240v 3ph | 60 hp |
| Max. Hp 460/480v 3ph | 125 hp |
| Max. Hp 600v 3ph | 150 hp |
| Max. Rated Operation Voltage | 600V |
| Motor Drive Integrated | No |
| Mounting | Panel |
| Poles | 2 |
| Position Control Element | Front Side |
| Product Datasheet | socomec-37299992.pdf |
| Rated Operation Power @ Ac 23, 400v | 220 kW |
| Suitable For Busbar Mounting | No |
| Suitable For Floor Mounting | Yes |
| Suitable For Front Mounting | Yes |
| Type | I-0-Test |
| Version As Emergency Stop Installation | Yes |
| Version As Main Switch | Yes |
| Version As Safety Switch | Yes |
| Width | 146.2 mm |
Shipping Info:
| Ship weight (kg) | 2.66 |
| Ship height (cm) | 2.5 |
| Ship length (cm) | 1.6 |
| Ship width (cm) | 2.4 |
| HS code | 853630 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Amps | Type | Depth | Max. Rated Operation Voltage | No. Of Poles | Conditioned Rated Short Circuit Amps | Frame Size | Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
37103003 | 30A | I-0 | 83.5 mm | 600V | - | 100 kA | 1 | Cc | €259.20 | |
 |
37103004 | 30A | I-0 | 99 mm | 600V | - | 100 kA | 2 | J | €259.20 | |
 |
37104003 | 30A | I-0 | 83.5 mm | 600V | 4 | 100 kA | 1 | Cc | €333.00 | |
 |
37104004 | 30A | I-0 | 99 mm | 600V | 4 | 100 kA | 2 | J | €333.00 | |
 |
37105003 | 30A | I-0 | 83.5 mm | 600V | 4 | 100 kA | 1 | Cc | €316.80 | |
 |
37105004 | 30A | I-0 | 99 mm | 600V | 4 | 100 kA | 2 | J | €318.60 | |
 |
38503060 | 600A | I-0 | 250 mm | 600V | - | 200 kA | 8 | J | - | RFQ
|
