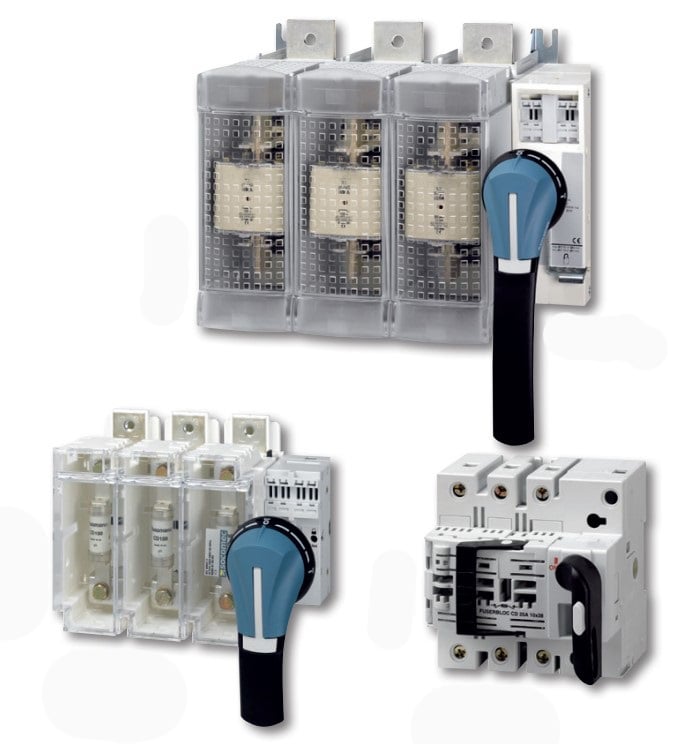

SOCOMEC 38313016 Disconnect Switch, 3 Pole, 160 A, Fusible, DIN Class
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disconnect Switch |
| Amps | 160A |
| Cable Entries | Top, Bottom |
| Conditioned Rated Short Circuit Amps | 100 kA |
| Control Element Type | Long Rotary Handle |
| Control Operator | Direct H11, External S2 |
| Degree Of Protection | IP20 |
| Depth | 136.5 mm |
| Electrical Connection Of Main Circuit Type | Bolt Connection |
| Equipped With Connectors | No |
| Error Protection | No |
| Frame Size | 14 |
| Fuse Size | Nh0 |
| Length | 162 mm |
| Max. Rated Operation Voltage | 690V |
| Motor Drive Integrated | No |
| No. Of Poles | 3 |
| Position Control Element | Front Side |
| Product Datasheet | socomec-38316016.pdf |
| Rated Operation Power @ Ac 23, 400v | 80 kW |
| Suitable For Busbar Mounting | No |
| Suitable For Floor Mounting | Yes |
| Suitable For Front Mounting | Yes |
| Type | I-0-Test |
| Version As Emergency Stop Installation | Yes |
| Version As Main Switch | Yes |
| Version As Safety Switch | Yes |
| Width | 402 mm |
Shipping Info:
| Ship weight (kg) | 2.29 |
| Ship height (cm) | 17 |
| Ship length (cm) | 26 |
| Ship width (cm) | 16.5 |
| Country of Origin | TN |
Documentation:
Product Variants
| Product | Model | Amps | Type | Depth | Max. Rated Operation Voltage | No. Of Poles | Conditioned Rated Short Circuit Amps | Frame Size | Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
37103003 | 30A | I-0 | 83.5 mm | 600V | - | 100 kA | 1 | Cc | €259.20 | |
 |
37103004 | 30A | I-0 | 99 mm | 600V | - | 100 kA | 2 | J | €259.20 | |
 |
37104003 | 30A | I-0 | 83.5 mm | 600V | 4 | 100 kA | 1 | Cc | €333.00 | |
 |
37104004 | 30A | I-0 | 99 mm | 600V | 4 | 100 kA | 2 | J | €333.00 | |
 |
37105003 | 30A | I-0 | 83.5 mm | 600V | 4 | 100 kA | 1 | Cc | €316.80 | |
 |
37105004 | 30A | I-0 | 99 mm | 600V | 4 | 100 kA | 2 | J | €318.60 | |
 |
38503060 | 600A | I-0 | 250 mm | 600V | - | 200 kA | 8 | J | - | RFQ
|
