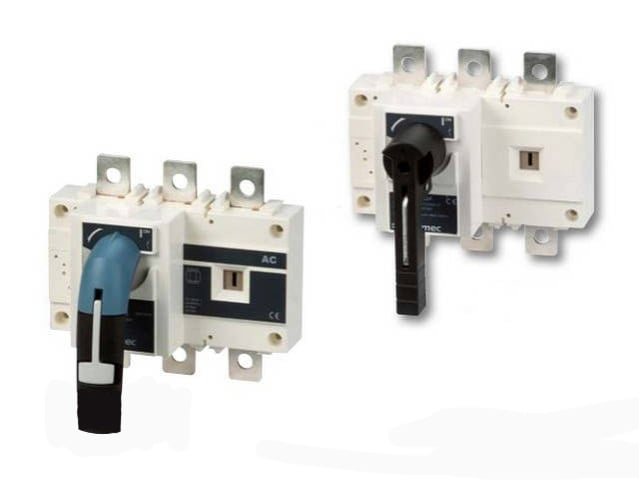

SOCOMEC 27004041 Non Fusible Disconnect Switch, 4 Poles, 400 Amp, 690 VAC
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disconnect Switch |
| Amps | 400A |
| Control Operator | Direct B2, J1, External S2 |
| Degree Of Protection | IP20 |
| Depth | 128 mm |
| Device Construction | Built In Device Fixed Built In Technique |
| Electrical Connection Of Main Circuit Type | Bolt Connection |
| Frame Size | B5 |
| Interlockable | Yes |
| Length | 260 mm |
| Max. Rated Operation Voltage | 600V |
| Motor Drive Integrated | No |
| No. Of Poles | 4 |
| No. Of Switches | 1 |
| Product Datasheet | socomec-39990720.pdf |
| Rated Operating Voltage | 240-600V |
| Rated Operation Power @ Ac 23, 400v | 220 kW |
| Suitable For Distribution Board Installation | No |
| Suitable For Floor Mounting | No |
| Suitable For Front Mounting 4 Hole | Yes |
| Suitable For Front Mounting Centre | No |
| Suitable For Intermediate Mounting | Yes |
| Switching Power @ 400v | 220 kW |
| Type | Front Operation |
| Version As Emergency Stop Installation | Yes |
| Version As Main Switch | Yes |
| Version As Maintenance/service Switch | Yes |
| Version As Reversing Switch | No |
| Version As Safety Switch | Yes |
| Voltage | 690V AC |
| Width | 290 mm |
Shipping Info:
| Ship weight (kg) | 3.79 |
| Ship height (cm) | 36.5 |
| Ship length (cm) | 22.5 |
| Ship width (cm) | 44.5 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Amps | Depth | No. Of Poles | Frame Size | Rated Operation Power @ Ac 23, 400v | Switching Power @ 400v | Poles | Operator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
27003011 | 100A | 94.6 mm | - | B4 | 55 kW | 55 kW | 3 | 3 | €408.60 | |
 |
27003021 | 200A | 94.6 mm | - | B4 | 110 kW | 110 kW | 3 | 3 | €459.00 | |
 |
27003041 | 400A | 128 mm | - | B5 | 220 kW | 220 kW | 3 | 3 | €1,387.80 | |
 |
27003060 | 600A | 140 mm | - | B6 | 375 kW | 375 kW | 3 | 3 | - | RFQ
|
 |
27004011 | 100A | 94.6 mm | - | B4 | 55 kW | 55 kW | 4 | 4 | €435.60 | |
 |
27004021 | 200A | 94.6 mm | - | B4 | 110 kW | 110 kW | 4 | 4 | €507.60 |
