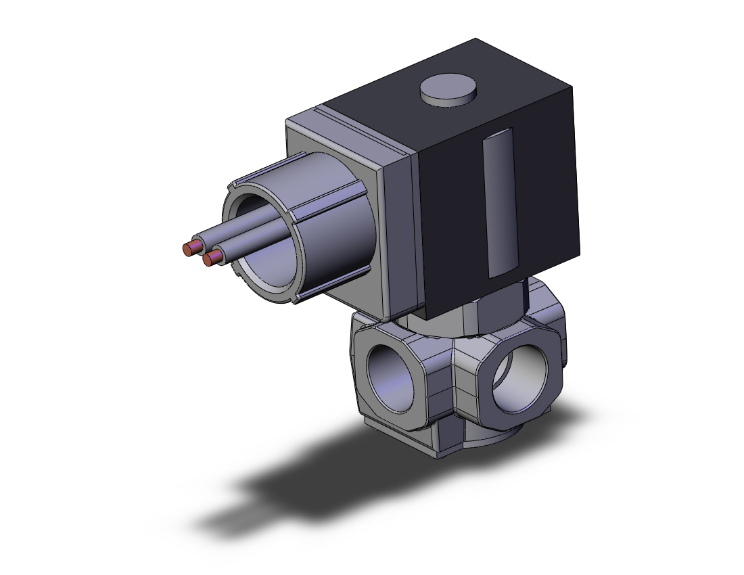

SMC VALVES VX3110-02N-3CR1 Valve, 3 Way
Get it by Tuesday, Sep 1
€42.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Media Valve |
| Application | Individual Item |
| Body Material Grade | Grade C37 |
| Bracket | Not Available |
| Compatible Fluid | Water, Air |
| Connection Type | NPT |
| Driving Type | Linear Motion Type |
| Insulation Class | Class B |
| Ip Rating | IP65 |
| Lead Wire Electrical Entry | DIN Terminal |
| Operating Pressure Difference Range | 0 MPa to 1 MPa |
| Operating Temp. | -20°C to +40°C |
| Orifice Dia. (dia) | 1.5 |
| Power Consumption | 4.5 W |
| Sealing Material | NBR |
| Switching Type | Normally Closed |
| Type | Electromagnetic Type |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 12.7 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
VXA3114N-01N-B | VXA3114N-01N-B | €136.49 | |
 |
VXA3224-02 | VXA3224-02 | €83.29 | |
 |
VXA3224M-02N-B | VXA3224M-02N-B | €187.11 | |
 |
VXA3234M-02N-B | VXA3234M-02N-B | €165.53 | |
 |
VXA3244-02N-B | VXA3244-02N-B | €83.09 | |
|
VXA3244N-02N-B | VXA3244N-02N-B | €159.59 | |
 |
VX3344-03N-5DZ1-B | VX3344-03N-5DZ1-B | €84.81 |
