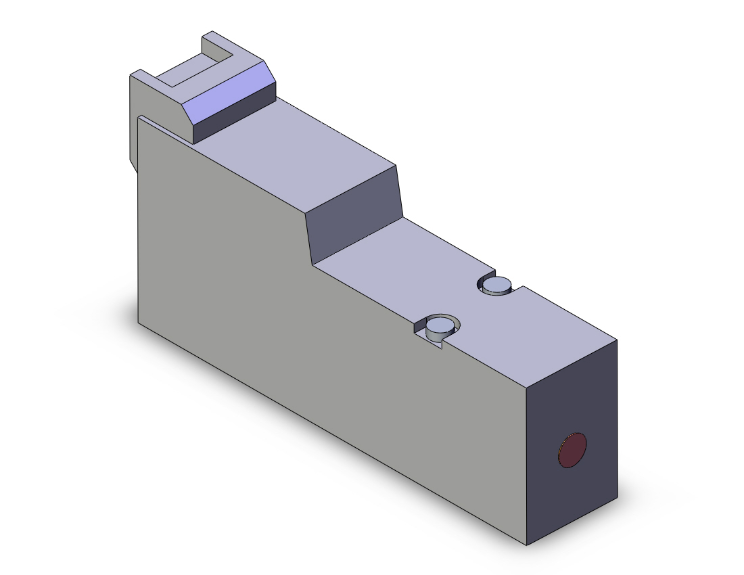

SMC VALVES VQD1151U-5MO Valve, 4/5 Port Size
Item: AM9TEAModel: VQD1151U-5MO
7 In Stock
Ships within 2 days via
€62.51 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Actuation | Direct Acting Pneumatic |
| Body Material | Zinc |
| Flow Direction | 4-Way |
| Max. Operating Pressure | 101 psi |
| No. Of Port | 4 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 37 mm |
| Overall Length | 50.5 mm |
| Overall Width | 17.5 mm |
| Piping Type | Base Mounted |
| Port Size | Subplate Mounted |
| Seal Material | Rubber |
| Series | VQD Series |
| Solenoid Coil Insulation | Class B |
| Solenoid Electrical Entry | M Plug Without Connector |
| Solenoid Power Consumption | 2 W |
| Solenoid Supply Voltage | 24V DC |
| Subplate Port Size | M5 x 0.8 |
| Valve Function | Poppet |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
VQD1121-5M-M5 | VQD1121-5M-M5 | €78.12 | |
 |
VQD1121-6M-M5 | VQD1121-6M-M5 | €60.12 | |
 |
VQD1121U-5M-M5 | VQD1121U-5M-M5 | €62.37 | |
 |
VQD1121U-6M-M5 | VQD1121U-6M-M5 | €62.37 | |
 |
VQD1151-5L | VQD1151-5L | €60.45 | |
 |
VQD1151-5L-M5 | VQD1151-5L-M5 | €54.25 | |
 |
VQD1151-5LO | VQD1151-5LO | €59.60 |
