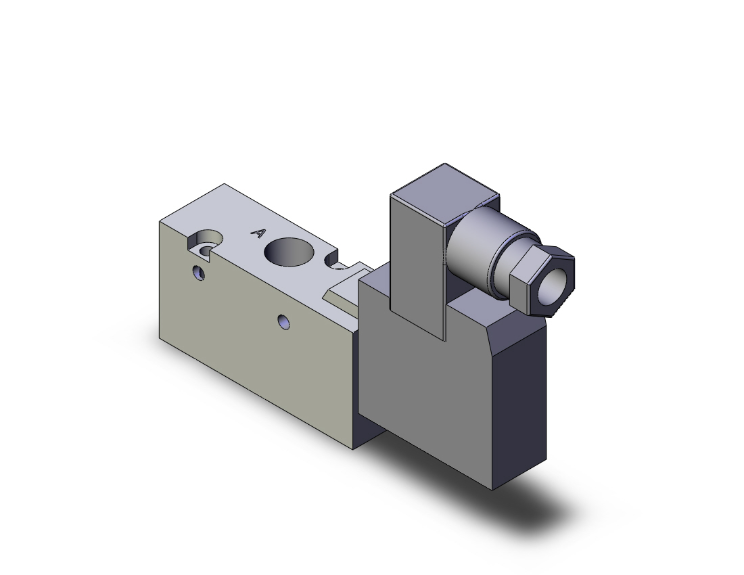

SMC VALVES SYJ712-5DZ-01F Solenoid Valve, 1/8 Port Size
Get it by Tuesday, Sep 1
€81.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Application | Single Unit |
| Body Option | Individual Pilot Valve Exhaust Type |
| Bracket | No Bracket |
| Driving Type | Show More |
| Flow Coefficient | 0.77 |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor Non Polarized Type |
| Lead Wire Electrical Entry | DIN Terminal With Connector |
| Manual Switch | Soft Seal |
| Mounting Orientation | Direct |
| Pipe Port Type | NPT |
| Plumbing | Direct Plumbing |
| Port Size | 0.125 |
| Pressure Rating (mpa) | 0.15 MPa to 0.7 MPa |
| Type | Solenoid Valve |
| Valve Positions | 2 Position Normally Closed |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Voltage | Overall Height | Port Size | Type | Driving Type | Actuation | Operating Temp. | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SYJ712-5G-01-F | 24V DC | - | 0.125 | Solenoid Valve | Show More | Single | - | - | €96.01 | |
 |
SYJ712-5LZ-01T | - | 72.9 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | - | €70.57 | |
 |
SYJ712-5MNZ-01 | - | - | - | - | - | - | - | - | €70.42 | |
 |
SYJ712-5MZ-01T | - | 72.9 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | - | €96.51 | |
 |
SYJ712M-5LOZ-01T | - | - | - | - | - | - | - | - | €69.84 | |
 |
SYJ712M-5LZ-01T | - | - | - | - | - | - | - | - | €70.57 | |
 |
SYJ714-3LZ-02T | - | - | 1/4 Port With Sub-Plate | - | - | - | - | - | €82.62 |
