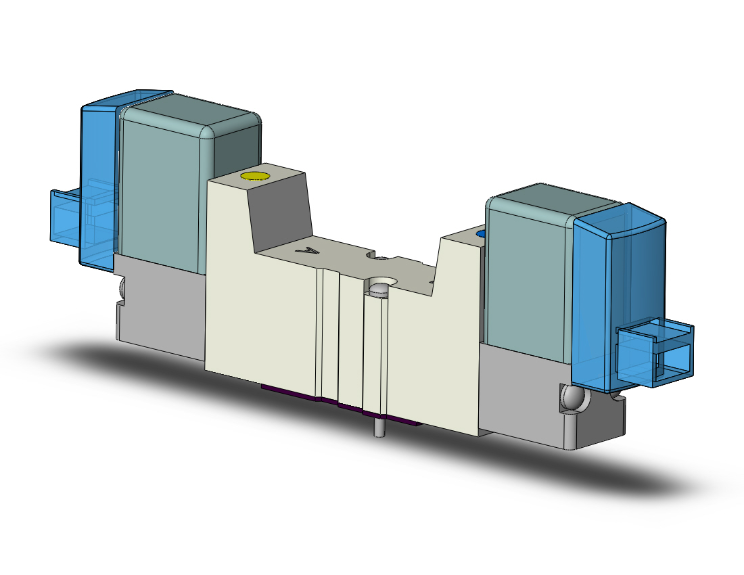

SMC VALVES SYJ3333-5LOZ Valve
Item: AL3WZDModel: SYJ3333-5LOZ
7 In Stock
Ships within 2 days via
€117.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Body Material | Zinc |
| Flow Direction | 4-Way |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 101 psi |
| No. Of Port | 4 |
| No. Of Positions | 3 (Closed Center) |
| No. Of Solenoids | Double |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 48.5 mm |
| Overall Length | 103 mm |
| Overall Width | 17.5 mm |
| Piping Type | Base Mounted |
| Seal Material | Rubber |
| Series | SYJ Series |
| Solenoid Electrical Entry | L Plug |
| Solenoid Power Consumption | 0.4 W |
| Solenoid Supply Voltage | 24V DC |
| Valve Function | Spool |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | No. Of Port | Overall Height | Voltage | Actuation | Solenoid Supply Voltage | No. Of Solenoids | Type | Driving Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SYJ3120-5LO-M3 | - | - | 24V DC | Single | - | - | Solenoid Valve | Show More | €54.38 | |
 |
SYJ3120-5MZ-M3-F | - | - | 12V DC | Single | - | - | Solenoid Valve | Show More | €57.29 | |
 |
SYJ3120-6LZ-M3 | 5 | - | - | Piloted Solenoid | 12V DC | 1 | - | - | €55.17 | |
 |
SYJ3120-6MZ-M3 | - | - | - | - | - | - | - | - | €55.17 | |
 |
SYJ3123-5LOZ-M3 | - | - | - | - | - | - | - | - | €67.23 | |
 |
SYJ3123-6LOZ-M3 | 5 | - | - | Piloted Solenoid | 12V DC | 1 | - | - | €54.38 | |
 |
SYJ3130-5G | - | - | - | - | - | - | - | - | €55.17 |
