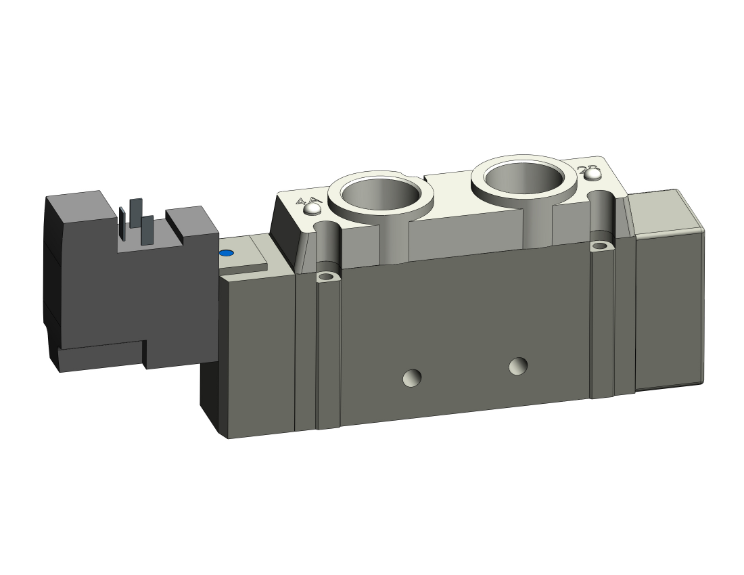

SMC VALVES SY9120-3DO-03T Valve
Get it by Tuesday, Aug 25
€90.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Application | Single Unit |
| Body Material | Aluminum |
| Bracket Type | Without Bracket |
| Driving Type | 0.15 To 0.7 |
| Flow Coefficient | 1.7 |
| Flow Direction | 4-Way |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor Non Polarized Type |
| Lead Wire Electrical Entry | DIN Terminal With Connector |
| Manual Operation Type | Non-Locking Push |
| Max. Operating Pressure | 101 psi |
| Mounting Orientation | Direct |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Pilot Air Supply | Pilot Type Spool |
| Piping Type | Body Ported Subplate Included |
| Port Size | 0.25 |
| Port Sizes | 3/8" NPTF |
| Pressure Rating (mpa) | 0.15 MPa to 0.7 MPa |
| Seal Material | Rubber |
| Seal Type | Internal |
| Series | SY Series |
| Solenoid Electrical Entry | DIN Terminal Without Connector |
| Solenoid Power Consumption | 0.94 W (AC) |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 110-115V AC |
| Type | Solenoid Valve |
| Valve Function | Spool |
| Valve Positions | 2 Position Exhaust |
| Valve Series | SY9000 Series |
| Voltage | 110V AC |
| Voltage Suppressor | Without Light, Surge Voltage Suppressor |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Actuation | Operating Temp. | No. Of Solenoids | Solenoid Power Consumption | Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY7320-3DZ-02T | - | - | - | - | - | - | - | - | €178.26 | |
 |
SYA7140-02T | 57 mm | 46 mm | - | - | -10°C to +60°C | - | - | - | €98.09 | |
 |
SY7240-3DZ | - | - | - | - | - | - | - | - | €158.46 | |
 |
SY7340-3DZ | - | - | - | - | - | - | - | - | €178.26 | |
 |
SY7140-3DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | 1 | 0.35 W | - | €108.45 | |
 |
SY7240-5DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €158.46 | |
 |
SY7340-5DZ | 93 mm | 46 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €178.26 |
