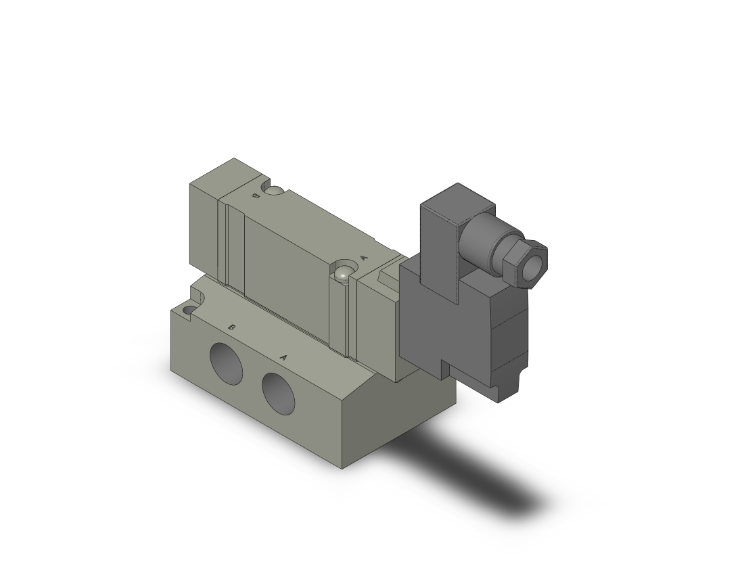

SMC VALVES SY7140-5DZ-02 Valve, 1/4 Inch Base Mount
Item: AL3VRUModel: SY7140-5DZ-02
7 In Stock
Ships within 2 days via
€128.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Electrical Entry | DIN Terminal |
| Light/surge Voltage Suppressor | With Light, Surge Voltage Suppressor |
| Manual Override | Push-Turn Locking Type |
| Pilot Type | Internal Pilot |
| Port Size | 1/4 (Mounted With Sub-Plate) |
| Rated Voltage | 24V DC |
| Series | SY7000 Series |
| Type Of Actuation | 2 Position Single |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Series | Port Size | Actuation | Operating Temp. | No. Of Solenoids | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY7320-3DZ-02T | - | - | - | SY7000 Series | - | - | - | - | €178.26 | |
 |
SYA7140-02T | 57 mm | 46 mm | - | - | - | - | -10°C to +60°C | - | €98.09 | |
 |
SY7240-3DZ | - | - | - | SY7000 Series | Without Sub-Plate | - | - | - | €158.46 | |
 |
SY7340-3DZ | - | - | - | SY7000 Series | Without Sub-Plate | - | - | - | €178.26 | |
 |
SY7140-3DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | 1 | €108.45 | |
 |
SY7240-5DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €158.46 | |
 |
SY7340-5DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €178.26 |
