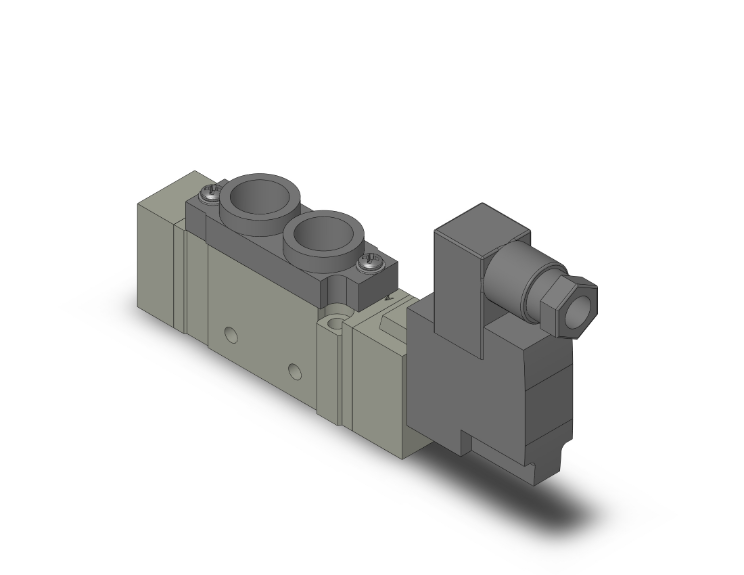

SMC VALVES SY7120-3DZ-02T Valve, 1/4 Inch N Port
Item: AL3VNRModel: SY7120-3DZ-02TCross Ref: 201Y64
7 In Stock
Ships within 2 days via
€108.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Single |
| Applicable Cylinder Dia. | 100 Or Less |
| Application | Single Unit |
| Bracket | No Bracket |
| Bracket Type | Without Bracket |
| Ce Compliant | Yes |
| Driving Type | 0.15 To 0.7 |
| Flow Coefficient | 0.93 |
| Flow Coefficient Cv Flow Factor Kv | 0.81 (A/B to EA/EB) CV, 0.93 (P to A/B) CV |
| Indicator Light/surge Voltage Suppressor | With Indicator Light, Surge Voltage Suppressor Non Polarized Type |
| Lead Wire Electrical Entry | DIN Terminal With Connector |
| Manual Operation Type | Non-Locking Push |
| Mounting Orientation | Direct |
| No. Of Port | 5 |
| No. Of Positions | 2 |
| No. Of Solenoids | 1 |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 66 mm |
| Overall Length | 129.1 mm |
| Overall Width | 18.9 mm |
| Piping Type | Body Ported Subplate Included |
| Port Size | 0.25 |
| Port Sizes | 1/4" NPTF |
| Pressure Rating (mpa) | 0.15 MPa to 0.7 MPa |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Power Consumption | 0.35 W |
| Solenoid Supply Frequency | 50/60 Hz |
| Solenoid Supply Voltage | 110-115V AC |
| Type | Solenoid Valve |
| Valve Function | Spool |
| Valve Positions | 2 Position Exhaust |
| Valve Series | SY7000 Series |
| Voltage | 110V AC |
| Voltage Suppressor | With Light, Surge Voltage Suppressor |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Series | Port Size | Actuation | Operating Temp. | No. Of Solenoids | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY7320-3DZ-02T | - | - | - | SY7000 Series | - | - | - | - | €178.26 | |
 |
SYA7140-02T | 57 mm | 46 mm | - | - | - | - | -10°C to +60°C | - | €98.09 | |
 |
SY7240-3DZ | - | - | - | SY7000 Series | Without Sub-Plate | - | - | - | €158.46 | |
 |
SY7340-3DZ | - | - | - | SY7000 Series | Without Sub-Plate | - | - | - | €178.26 | |
 |
SY7140-3DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | 1 | €108.45 | |
 |
SY7240-5DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €158.46 | |
 |
SY7340-5DZ | 93 mm | 46 mm | - | - | - | Piloted Solenoid | 14°F to 122°F | Double | €178.26 |
