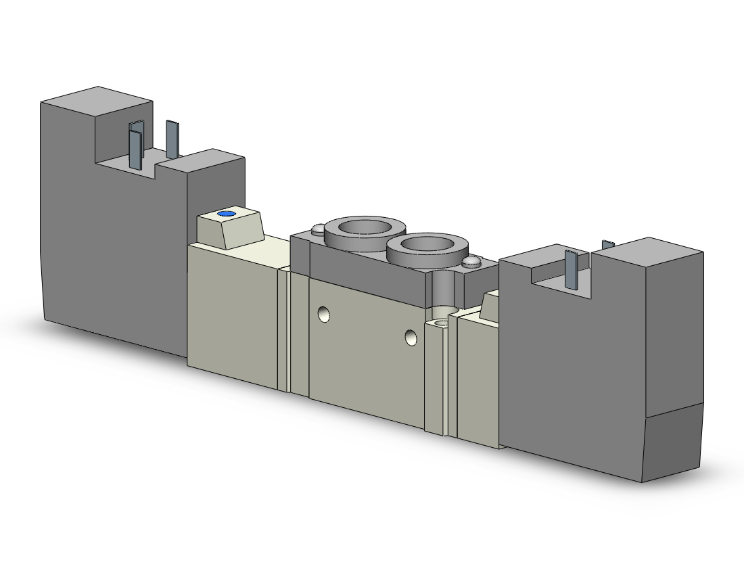

SMC VALVES SY5320-5YO-01F Valve, 1/8 Port Size
Item: AM2GWCModel: SY5320-5YO-01F
7 In Stock
Ships within 2 days via
€135.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation | Piloted Solenoid |
| Bracket Type | Without Bracket |
| Flow Coefficient Cv Flow Factor Kv | 0.45 (P to A/B) CV, 0.46 (A/B to EA/EB) CV |
| Manual Operation Type | Non-Locking Push |
| No. Of Port | 5 |
| No. Of Positions | 3 (Closed Center) |
| No. Of Solenoids | Double |
| Operating Medium | Air |
| Operating Temp. | 14°F to 122°F |
| Overall Height | 45.3 mm |
| Overall Length | 167.8 mm |
| Overall Width | 15.8 mm |
| Piping Type | Body Ported Subplate Included |
| Port Sizes | 1/8" BSPP |
| Solenoid Electrical Entry | DIN Terminal |
| Solenoid Power Consumption | 0.35 W |
| Solenoid Supply Voltage | 24V DC |
| Thread Standard | G |
| Valve Function | Spool |
| Valve Series | SY5000 Series |
| Voltage Suppressor | Without Light, Surge Voltage Suppressor |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Overall Height | Overall Width | Voltage | Actuation | Operating Temp. | No. Of Solenoids | Solenoid Power Consumption | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SY5140-3LOZ | 57.6 mm | 35 mm | - | Piloted Solenoid | 14°F to 122°F | 1 | 0.35 W | - | €88.20 | |
 |
SY5140-5DZD | - | - | - | - | - | - | - | - | €103.49 | |
 |
SY5140-3DZ | 83.4 mm | 35 mm | - | Piloted Solenoid | 14°F to 122°F | 1 | 0.35 W | - | €97.83 | |
 |
SY5240-3DZ | - | - | - | - | - | - | - | - | €146.80 | |
 |
SY5240-5DZ | 83.4 mm | 35 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €146.80 | |
 |
SY5340-3DZ | 83.4 mm | 35 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €166.00 | |
 |
SY5340-5DZ | 83.4 mm | 35 mm | - | Piloted Solenoid | 14°F to 122°F | Double | 0.35 W | - | €166.00 |
