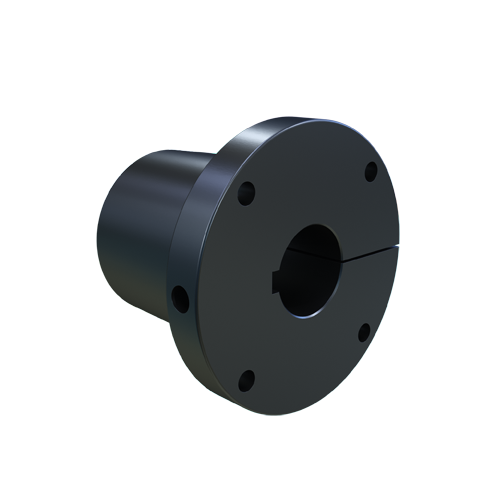

MARTIN SPROCKET P 3 11/16 Quick Detachable Bushing, 3.688 Inch Bore, 7/8 x 7/16 Inch Key, Cast Iron
3 11/16"
Get it by Friday, Aug 28
€1,866.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 8 1/4" |
| Bolt Circle Dia. | 10" |
| Bore Dia. | 3 11/16" |
| Bore Size | 3 11/16" |
| Bushing Size | P |
| Flange Dia. | 11 3/4" |
| Flange Thickness | 1 3/4" |
| Hub Dia. | 14" |
| Key Way Size | 7/8" x 7/16" |
| Length | 9 3/8" |
| Material | Cast Iron |
| No. Of Bolt Holes | 4 |
| Screw Size | 1"-8 x 9 1/2" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 58.95 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Bore Dia. | Bore Size | Key Way Size | Material | Bolt Circle Dia. | Bushing Size | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P 4 | - | - | 4" | 1" x 1/2" | Cast Iron | - | P | - | €1,866.06 | |
 |
P 4 1/4 | Standard | 4 1/4" | 4 1/4" | 1" x 1/2" | Cast Iron | 10" | P | 4 | €1,866.06 | |
 |
P 4 15/16 | Standard | 4 15/16" | 4 15/16" | 1 1/4" x 5/8" | Cast Iron | 10" | P | 4 | €1,866.06 | |
 |
P 5 | Standard | 5" | 5" | 1 1/4" x 5/8" | Cast Iron | 10" | P | 4 | €1,866.06 | |
 |
P 5 1/2 | Standard | 5 1/2" | 5 1/2" | 1 1/4" x 5/8" | Cast Iron | 10" | P | 4 | €1,866.06 | |
 |
P 5 15/16 | - | - | 5 15/16" | 1 1/2" x 3/4" | Cast Iron | - | P | - | €1,866.06 | |
 |
P 6 | - | - | 6" | 1 1/2" x 1/4" | Cast Iron | - | P | - | €1,866.06 |
