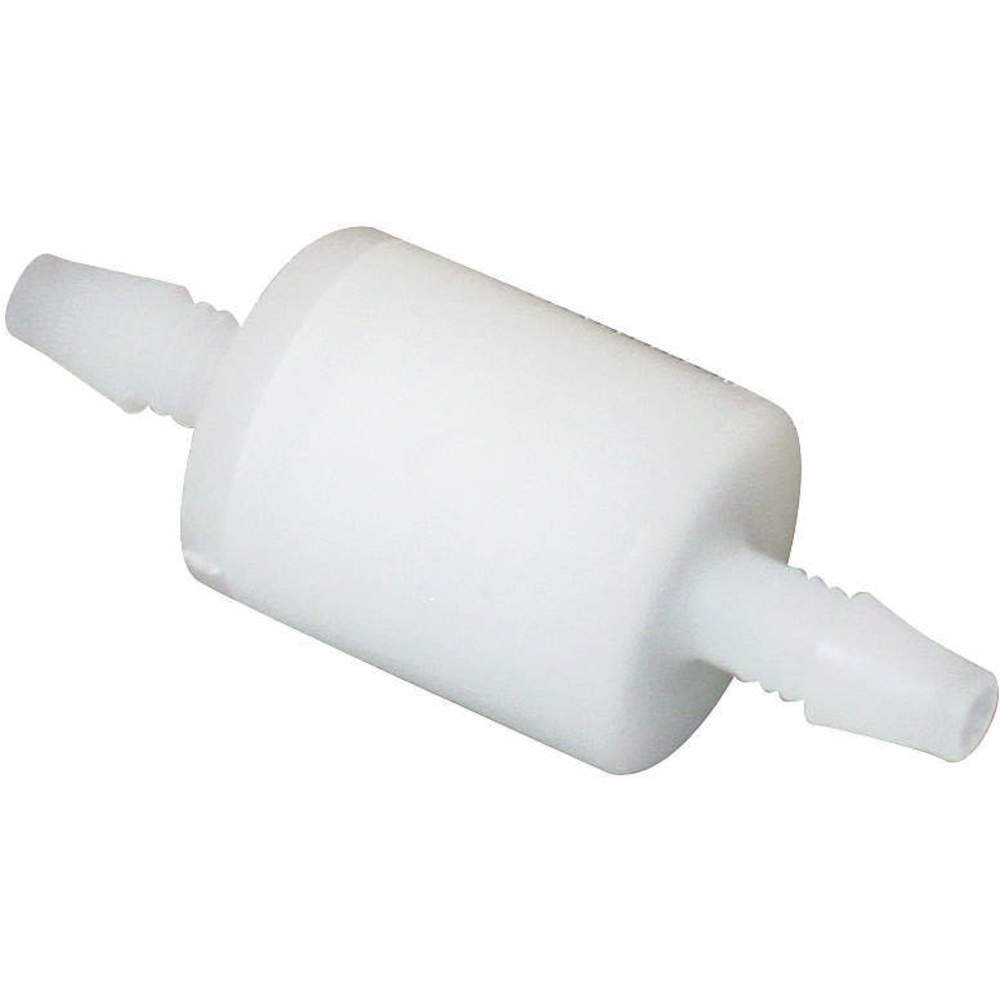

SMC VALVES PP CHK 695-2B2B-B Ball Cone Spring Check Valve 1/8 Inch
Item: AD7CGZModel: PP CHK 695-2B2B-BCross Ref: 4DHX8
7 In Stock
Ships within 2 days via
5.00% off
€11.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Cone Spring Check Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Body Material | Polypropylene |
| Cap To Inlet Center | 2-5/16" |
| Cap To Inlet Center | 2.312" |
| Check Mechanism | Ball |
| Connection Size-side 1 | 1/8" |
| Connection Size-side 2 | 1/8" |
| Connection Type | Barb x Barb |
| Connection Type-side 1 | Barb |
| Connection Type-side 2 | Barb |
| Cracking Pressure | 1 psi |
| Flow Coefficient Cv | 0.2 |
| For Media | Air, Fluids |
| Height-cap To Inlet Center | 2 5/16" |
| Length | 1 3/8" |
| Material | Polypropylene |
| Max. Operating Temp. | 140°F |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure-steam | Not Rated |
| Max. Temp. | 140°F |
| Max. Water Pressure | 125 psi |
| Media Temp. | -20°F to +140°F |
| Min. Operating Temp. | -20°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Overall Length | 1.38" |
| Pipe Size | 1/8" |
| Seal Material | Buna N |
| Seat Material | Polypropylene |
| Silent Check | Standard |
| Size | 1/8" |
| Spring Material | Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 695 Series |
| Width | 1/2" |
Shipping Info:
| Ship height (cm) | 1.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| HS code | 8481309000 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Connection Size-side 1 | Connection Size-side 2 | Height-cap To Inlet Center | Cap To Inlet Center | Seat Material | For Media | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PP CHK 695-2B2B-F | 1/8" | 1/8" | 1/8" | 2 5/16" | 2.312" | Polypropylene | Air, Fluids | -20°F to +140°F | €12.71 | |
 |

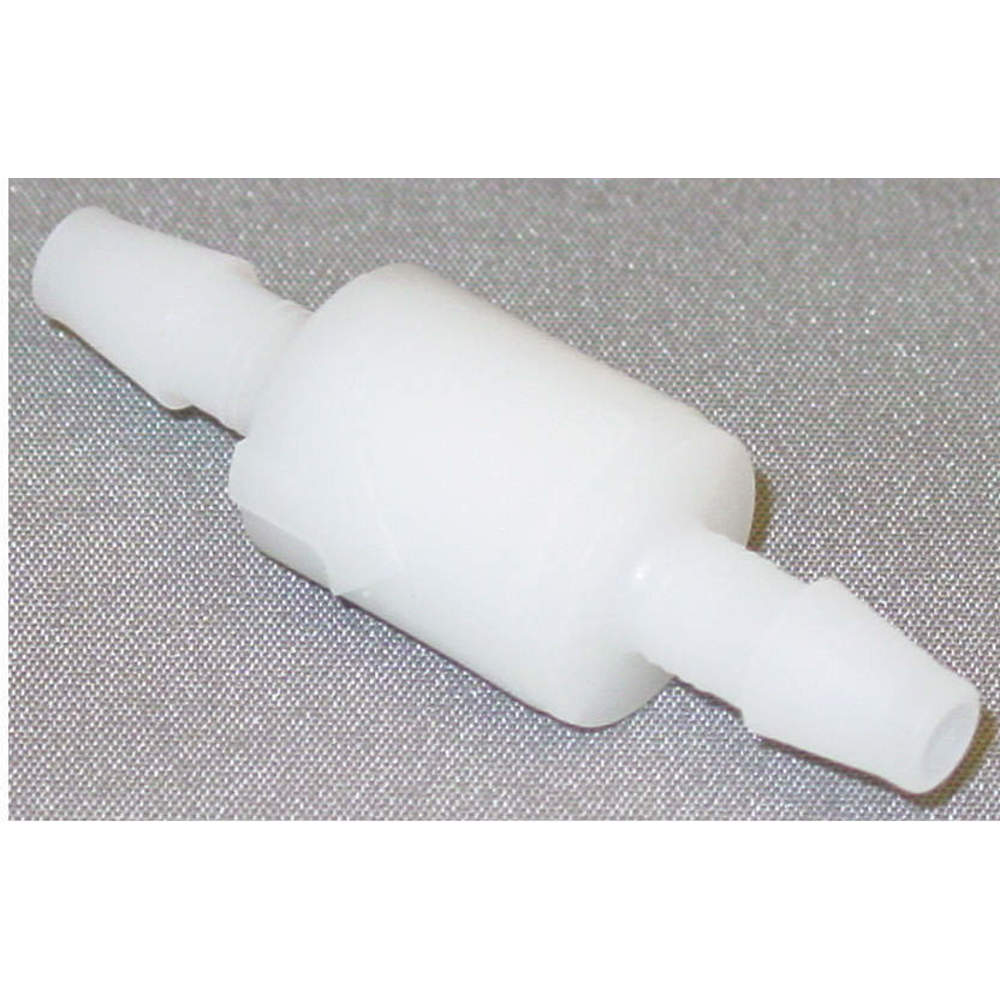

PP CHK 695-3B3B-B | 3/16" | 3/16" | 3/16" | 2 15/16" | 2.906" | Polypropylene | Air, Fluids | -20°F to +140°F | €12.01 | |
|
PP CHK 695-3B3B-F | 3/16" | 3/16" | 3/16" | 2 15/16" | 2.906" | Polypropylene | Air, Fluids | -20°F to +140°F | €12.71 | |
 |

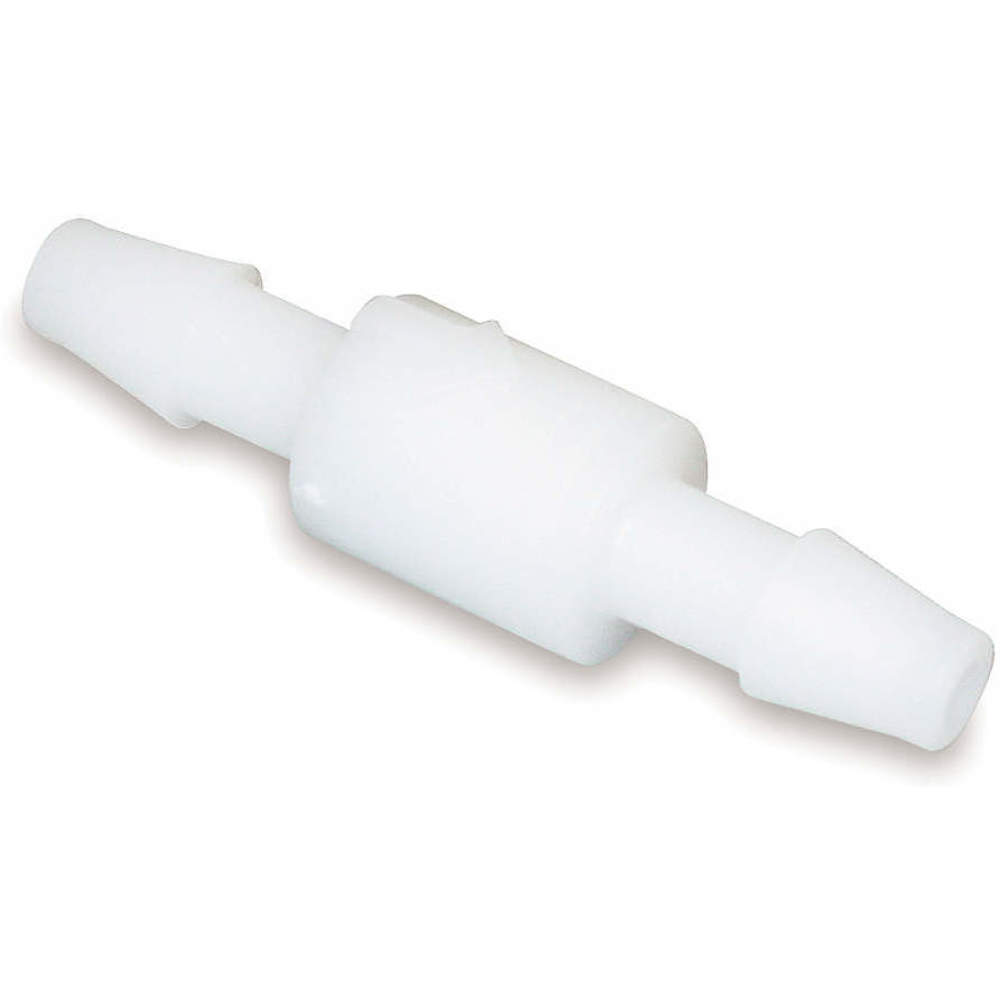

PP CHK 695-4B4B-B | 1/4" | 1/4" | 1/4" | 2 15/16" | 2.906" | Polypropylene | Air, Fluids | -20°F to +140°F | €12.01 | |
|
PP CHK 695-4B4B-F | 1/4" | 1/4" | 1/4" | 3 9/16" | 3.562" | Polypropylene | Air, Fluids | -20°F to +140°F | €12.71 |
