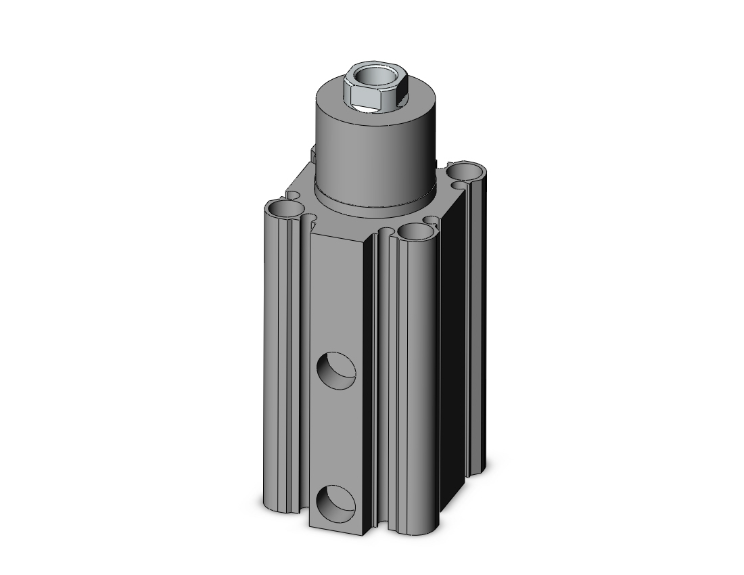

SMC VALVES MKB32TN-10LZ Cylinder, 32 mm Size, Double Acting Auto Switcher
Item: AN4AVCModel: MKB32TN-10LZ
7 In Stock
Ships within 2 days via
€306.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylinder |
| Arm Opening Angles | 90° |
| Body Option | Standard |
| Bore Dia. | 32 mm |
| Clamp Force @ 0.5 Mpa | 300N |
| Cushion Type | Rubber Bumper |
| Included Options | Auto Switch |
| Max. Operating Pressure | 1 MPa |
| Min. Operating Pressure | 0.1 MPa |
| Mounting Type | Basic |
| No. Of Auto Switches | 2 |
| Operating Pressure | 0.1 MPa to 1 MPa |
| Operating Temp. | -10°C to +60°C |
| Overall Body Length | 138.5 mm |
| Piston Action | Double Acting |
| Port Gender | Female |
| Port Thread Standard | NPT |
| Rotary Direction | Counter-Clockwise |
| Series | MK Series |
| Stroke | 10 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
MKB32-10RZ | MKB32-10RZ | €306.14 | |
 |
MKB40-20RZ | MKB40-20RZ | €332.46 | |
 |
MKB20-20LZ | MKB20-20LZ | €246.31 | |
 |
MKB20-20RZ | MKB20-20RZ | €246.31 | |
 |
MKB32-20LZ | MKB32-20LZ | €320.44 | |
 |
MKB50-20LZ-P3DWSE | MKB50-20LZ-P3DWSE | €473.74 | |
|
MKB50-20RZ-P3DWSE | MKB50-20RZ-P3DWSE | €473.74 |
