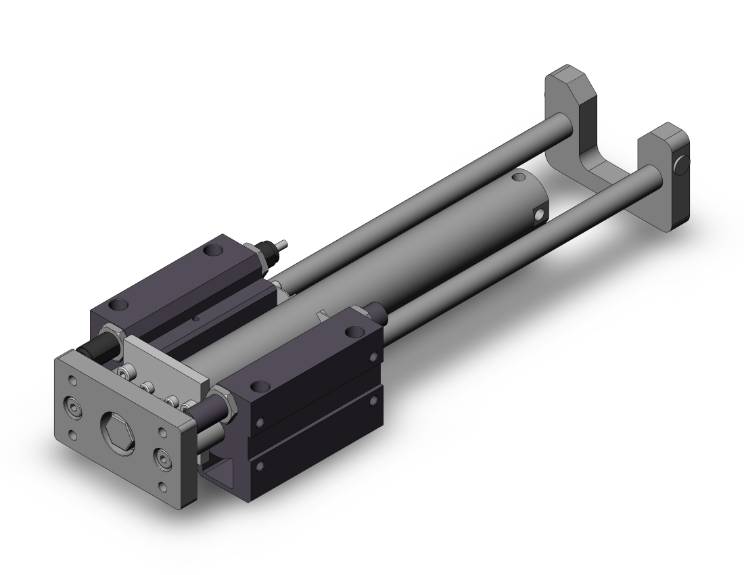

SMC VALVES MGGMB40TN-300 Guided Cylinder, 40 mm Size, Slide Bearing
Get it by Tuesday, Sep 1
€757.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Bearings | Slide |
| Bore Dia. | 40 mm |
| Cushion Type | Rubber Bumper |
| Guided Cylinder Type | Dual Rod Slide Unit |
| Max. Operating Pressure | 1 MPa |
| Min. Operating Pressure | 0.15 MPa |
| Mounting Type | Basic |
| Operating Pressure | 0.15 MPa to 1 MPa |
| Operating Temp. | -10°C to +60°C |
| Overall Height | 93 mm |
| Overall Length | 538 mm |
| Overall Width | 170 mm |
| Piston Action | Double Acting |
| Port Size | 0.125 NPT |
| Port Thread Standard | NPT |
| Pull Force @ 100 Psi | 742N |
| Push Force @ 100 Psi | 882N |
| Rod Type | Single Rod |
| Stroke | 300 mm |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | MPN | Price | |
|---|---|---|---|---|
 |
MGGLF40-100 | MGGLF40-100 | €845.06 | |
 |
MGGLB32-400 | MGGLB32-400 | €709.36 | |
 |
MGGMB20TN-100 | MGGMB20TN-100 | €433.22 | |
 |
MGGMB20TN-150 | MGGMB20TN-150 | €445.63 | |
 |
MGGMB20TN-200 | MGGMB20TN-200 | €458.04 | |
 |
MGGMB20TN-250 | MGGMB20TN-250 | €470.45 | |
 |
MGGMB20TN-350 | MGGMB20TN-350 | €495.27 |
