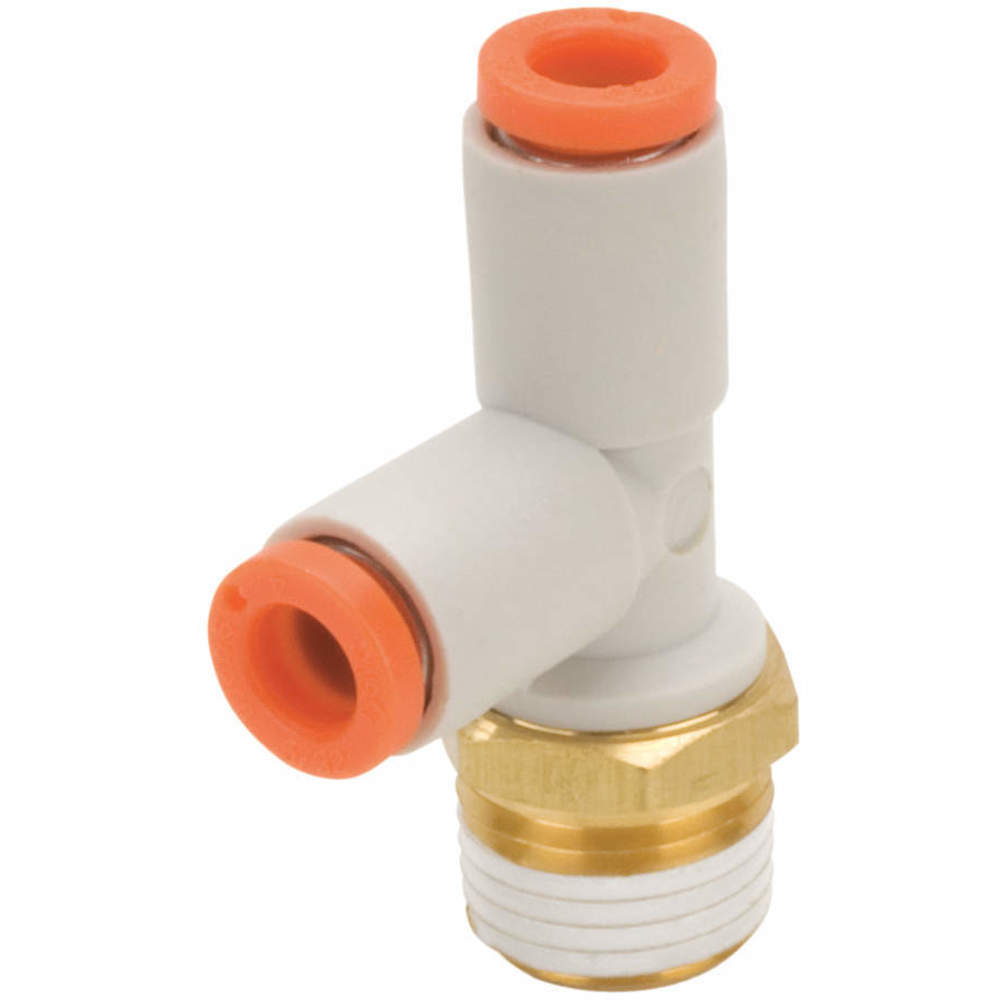

SMC VALVES KQ2Y11-36AS Male Run Tee 3/8 Inch Thread x Tube
Item: AC6ZQVModel: KQ2Y11-36ASCross Ref: 36W974
7 In Stock
Ships within 2 days via
10.00% off
€10.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Run Tee |
| Application | Air, Non-Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x MNPT |
| Fitting Material | PBT |
| Fitting Side A Connection Type | MNPT |
| Fitting Side A Pipe Size | 3/8" |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outer Diameter | 3/8" |
| Fitting Side C Connection Type | Push-To-Connect |
| Fitting Side C Tube Outer Diameter | 3/8" |
| Hex Size | 0.688" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 41°F |
| Overall Length | 49.5 mm |
| Pipe Size | 3/8" |
| Specific Fitting Shape | Adapter Tee |
| Standards | RoHS |
| System Of Measurement | Imperial |
| Temp. Range | +23°F to +140°F |
| Tube Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.05 |
| HS code | 3917400090 |
| Country of Origin | SG |
Product Variants
| Model | Color | Connection Type | Hex Size | Fitting Side A Connection Type | Fitting Side B Tube Outer Diameter | Overall Length | Fitting Side A Pipe Size | Fitting Side C Tube Outer Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KQ2Y01-33AS | White | Tube x MNPT | 0.438" | MNPT | 1/8" | 39.09375 mm | 1/16" | 1/8" | €6.77 | |
| KQ2Y01-34AS | White | Tube x MNPT | 0.438" | MNPT | 1/8" | 31.5 mm | 1/8" | 1/8" | €7.24 | |
| KQ2Y01-35AS | White | Tube x MNPT | 0.562" | MNPT | 1/8" | 35.90625 mm | 1/4" | 1/8" | €7.85 | |
| KQ2Y03-33AS | White | Tube x MNPT | 0.438" | MNPT | 5/32" | 39.09375 mm | 1/16" | 5/32" | €6.99 | |
| KQ2Y03-34AS | White | Tube x MNPT | 0.438" | MNPT | 5/32" | 31.5 mm | 1/8" | 5/32" | €6.01 | |
| KQ2Y03-35AS | White | Tube x MNPT | 0.562" | MNPT | 5/32" | 36.90625 mm | 1/4" | 5/32" | €7.98 | |
| KQ2Y04-01AS | White | Tube x Male BSPT | 10 mm | MBSPT | 4 mm | 31.5 mm | 1/8" | 4 mm | €7.53 |
