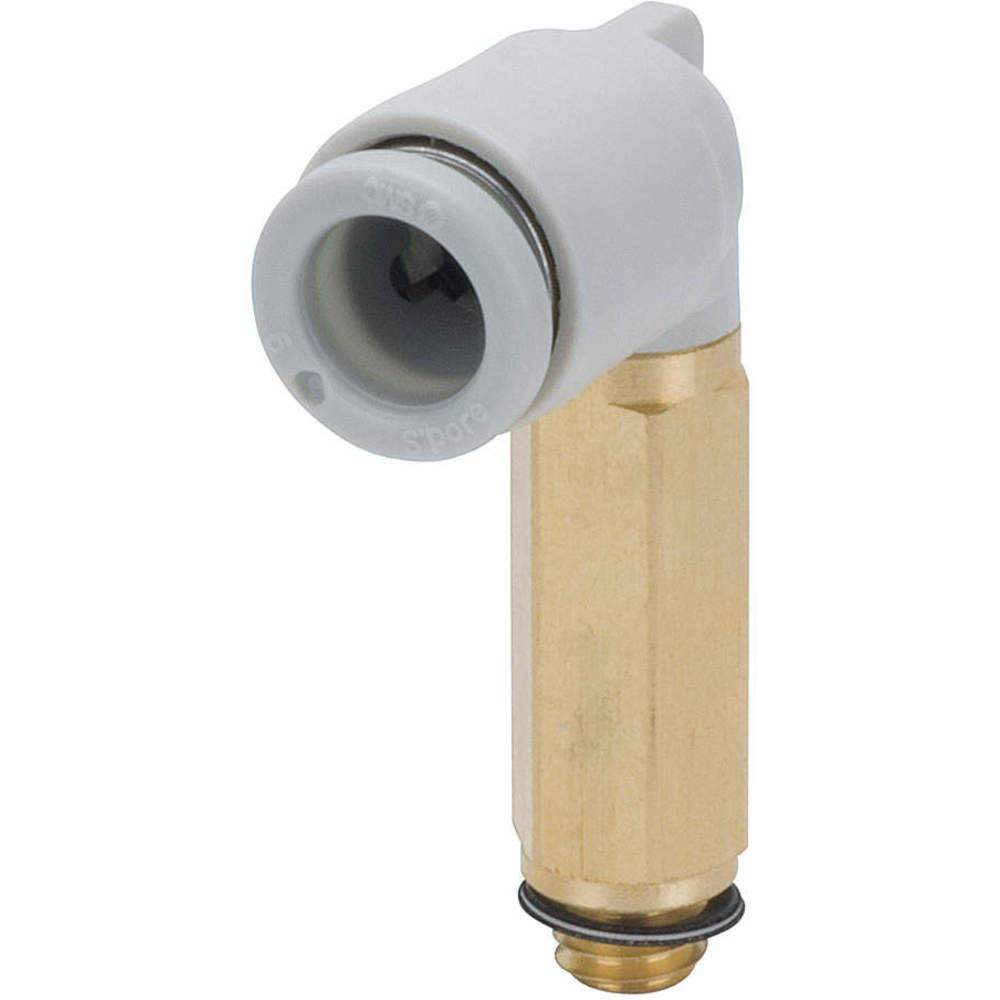

SMC VALVES KQ2W23-M5A Extended Male Elbow 3.2mm Thread x Tube
Item: AC7ACLModel: KQ2W23-M5ACross Ref: 36X223
7 In Stock
Ships within 2 days via
10.00% off
€7.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extended Male Elbow 90 Deg |
| Application | Air, Non-Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x Male |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 3.2 mm |
| Fitting Side B Connection Type | Male Metric |
| Fitting Side B Pipe Size | 5 mm |
| Hex Size | 7 mm |
| Includes Pre-applied Thread Sealant | No |
| Max. Pressure | 145 psi |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 41°F |
| Overall Length | 25.1875 mm |
| Pipe Thread Size | M5 x 0.8 |
| Release Type | Button |
| Specific Fitting Shape | 90° Extended Elbow Adapter |
| System Of Measurement | Metric |
| Temp. Range | +23°F to +140°F |
| Thread Size | M5 x 0.8 |
| Tube Size | 3.2 mm |
Shipping Info:
| Ship height (cm) | 0.76 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.03 |
| HS code | 3917400090 |
| Country of Origin | JP |
Product Variants
| Model | Color | Connection Type | Hex Size | Fitting Side B Connection Type | Overall Length | Fitting Side B Pipe Size | Fitting Side A Tube Outer Diameter | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KQ2W01-34AS | White | Tube x MNPT | 0.438" | MNPT | 30.3125 mm | 1/8" | 1/8" | 1/8" | €9.50 | |
| KQ2W01-35AS | White | Tube x MNPT | 0.562" | MNPT | 32.6875 mm | 1/4" | 1/8" | 1/8" | €7.99 | |
| KQ2W03-34AS | White | Tube x MNPT | 0.438" | MNPT | 29.90625 mm | 1/8" | 5/32" | 0.156" | €9.14 | |
| KQ2W03-35AS | White | Tube x MNPT | 0.562" | MNPT | 33.1875 mm | 1/4" | 5/32" | 0.156" | €8.62 | |
| KQ2W05-34AS | White | Tube x MNPT | 0.438" | MNPT | 30.40625 mm | 1/8" | 3/16" | 0.188" | €7.88 | |
| KQ2W05-35AS | White | Tube x MNPT | 0.562" | MNPT | 33.6875 mm | 1/4" | 3/16" | 0.188" | €9.24 | |
| KQ2W07-34AS | White | Tube x MNPT | 0.438" | MNPT | 31.40625 mm | 1/8" | 1/4" | - | €9.05 |
