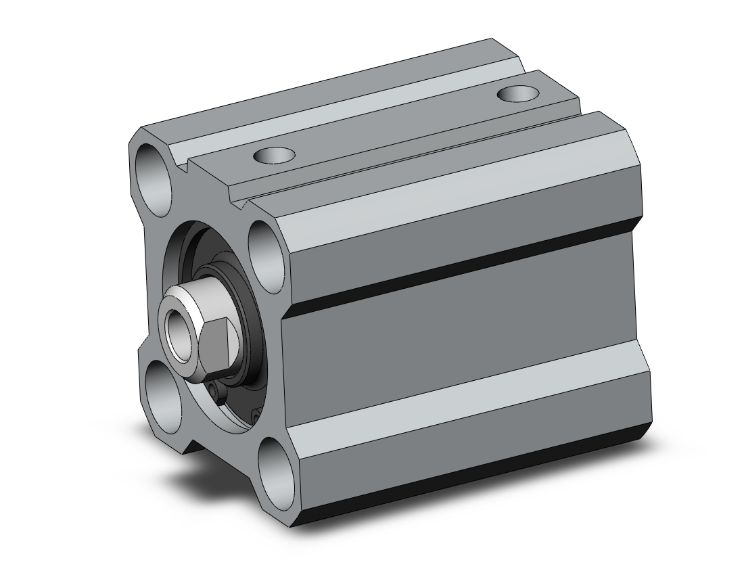

SMC VALVES CQ2B25-25D Compact Cylinder, 25 mm Size, Double Acting
Item: AL7QFEModel: CQ2B25-25D
7 In Stock
Ships within 2 days via
€52.95 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Cylinder |
| Bore Dia. | 25 mm |
| Compact Cylinder Type | Standard |
| Cushion Type | Not Available |
| Cylinder Series | CQ2 Series |
| Operating Pressure | 0.05 MPa to 1 MPa |
| Operating Temp. | -10°C to +70°C |
| Overall Length | 52.5 mm |
| Piston Action | Double Acting |
| Port Thread Standard | ISO |
| Pull Force @ 100 Psi | 264N |
| Push Force @ 100 Psi | 344N |
| Rod Size/thread | M10 x 1.25 Female ISO |
| Rod Type | Single Rod |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
