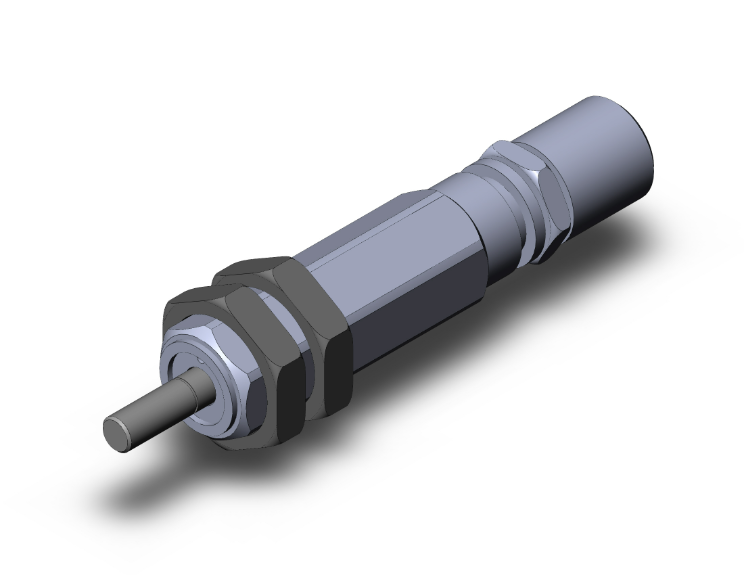

SMC VALVES CJPB6-15H6 Pin, 6 mm Size, Single Acting
Get it by Monday, Aug 24
€19.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Round Body Cylinder |
| Body Material | Brass |
| Bore Dia. | 6 mm |
| Cylinder Tube Inside Dia. | 6 |
| Main Body Shape | Others |
| Max. Operating Pressure | 0.7 MPa |
| Min. Operating Pressure | 0.2 MPa |
| Mounting Type | Panel |
| Operating Pressure | 0.2 MPa to 0.7 MPa |
| Operating Temp. | -10°C to +70°C , -10°F to +70°F |
| Overall Height | 13.9 mm |
| Overall Length | 41.5 mm |
| Overall Width | 12 mm |
| Piston Action | Single Acting Spring Return |
| Port Gender | Female |
| Port Size | M5 x 0.8 |
| Proof Pressure @ Mpa | 1 |
| Pull Force @ 100 Psi | 1.42N |
| Push Force @ 100 Psi | 15.9N |
| Rod Gender | Male |
| Rod Operation Method | Single Rods |
| Rod Size | 3 mm |
| Rod Size/thread | 3 Mm Rod, M3 X 0.5 ISO Thread |
| Rod Tip Shape | Without Thread |
| Rod Type | Single Rod |
| Stroke | 5 mm |
| Type Of Mount Support | Panel-Mount Type |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 7.62 |
