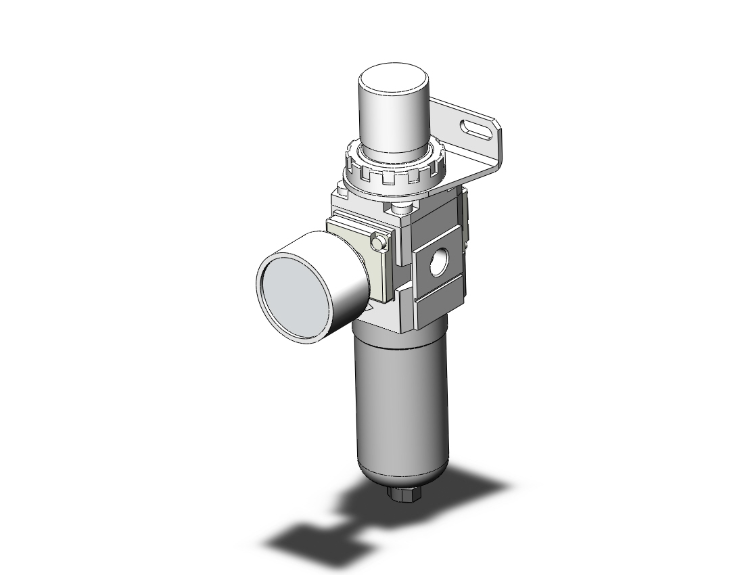

SMC VALVES AW20-N01BCG-CZ-B Regulator, 1/8 Inch Modular
Get it by Tuesday, Sep 1
€97.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Regulator |
| Option A | With Bracket |
| Option B | Float Type Auto Drain N.C.(Normally Closed)Drain Port Is Closed When Pressure Is Not Applied |
| Port Size | 0.125 |
| Semi-standard A | 0.05 MPa to 0.85 MPa Setting |
| Semi-standard B | With Drain Cock Relieving Type Flow Direction: Left to Right Name Plate Caution Plate For Bowl And Pressure Gauge In Imperial Units: psi |
| Thread Type | NPT |
| With Backflow Function | Without Backflow Function |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 10.16 |
Product Variants
| Product | Model | Set Pressure | Size Of Body | Port Size | Body Size | Proof Pressure | Max. Operating Pressure | Control Side/connection Dia. | Delivery Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AR20-02BG | - | - | 0.25 | - | - | - | - | - | €34.52 | |
|
AR30K-N03H-Z | - | - | 0.375 | - | - | - | - | - | €30.29 | |
 |
AW20-N02CH-CZ | - | - | 0.25 | - | - | - | - | - | €57.29 | |
 |
AMR6000-10 | - | - | - | - | - | - | - | - | €676.30 | |
 |
ARBQ5000-00-B-1 | - | - | - | - | - | - | - | - | €154.84 | |
|
ARBY5000-00-P-2 | - | - | - | - | - | - | - | - | €119.02 | |
 |
ARJ1020F-M5-06 | 0.05 MPa to 0.2 MPa | - | - | 10 mm | 174 psi | 116 psi | 6 | - | €24.78 |
