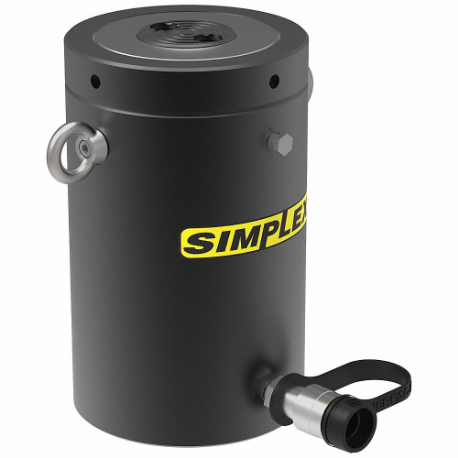

SIMPLEX RCL1006 Lock Nut Hydraulic Ram, 105 ton Nominal Capacity, 6 Inch Nominal Stroke Length
Get it by Wednesday, Dec 17
10.00% off
€3,098.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Ram |
| Cylinder Type | Lock Nut |
| Effective Push Area | 20.57 sq. in. |
| Extended Height | 17.13" |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 105 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity Push | 121.5 cu. in. |
| Outside Dia. | 6.69" |
| Plunger Dia. | 0.27" |
| Plunger Thread Size | M130 x 6 |
| Retracted Height | 11.22" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 5 11/12" |
Shipping Info:
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | ES |
Product Variants
| Product | Model | Stroke Length | Nominal Capacity | Extended Height | Nominal Stroke Length | Outside Dia. | Effective Push Area | Oil Capacity Push | Plunger Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

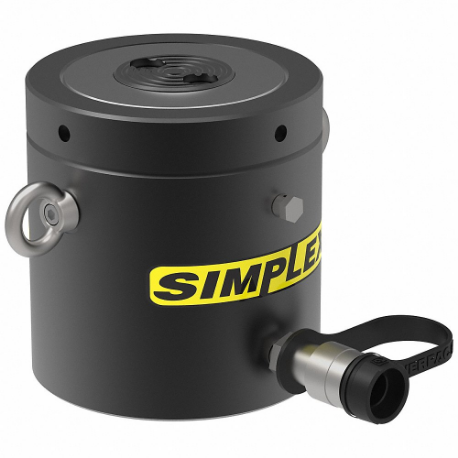

RCL1002 | 1 23/24" | 105 ton. | 9.06" | 2" | 6.69" | 20.57 sq. in. | 40.5 cu. in. | 0.27" | €2,583.35 | |
 |

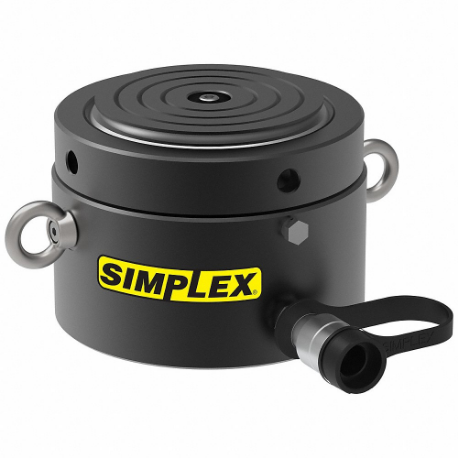

RLL1002 | 1 3/4" | 105 ton. | 7.17" | 2" | 6 1/2" | 20.57 sq. in. | 36.43 cu. in. | 0.27" | €3,231.67 | |
 |

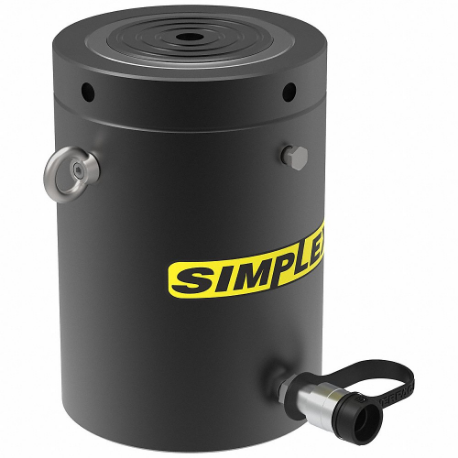

RCL15012 | 1 23/24" | 160 ton. | 9.65" | 12" | 8.27" | 31.16 sq. in. | 368.08 cu. in. | 0.27" | €7,132.67 | |
|
RLL1502 | 1 3/4" | 160 ton. | 7 3/5" | 2" | 8.07" | 31.17 sq. in. | 55.23 cu. in. | 0.27" | €4,628.04 | |
 |

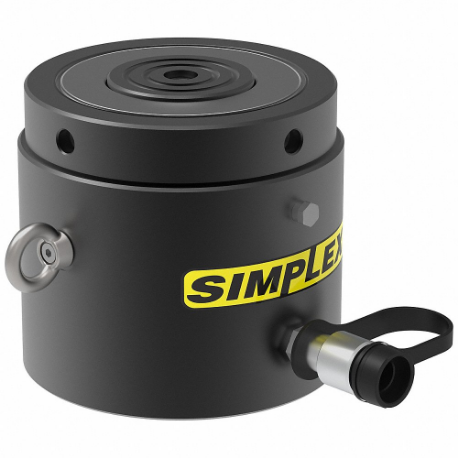

RCL1502 | 1 23/24" | 160 ton. | 9.65" | 2" | 8.27" | 31.16 sq. in. | 61.35 cu. in. | 0.27" | €4,678.73 | |
|
RCL1506 | 5 11/12" | 160 ton. | 18.07" | 6" | 8.27" | 31.16 sq. in. | 184.04 cu. in. | 0.27" | €5,658.71 | |
 |
RCL302 | 1 23/24" | 35 ton. | 7 13/25" | 2" | 3.94" | 6.85 sq. in. | 13.48 cu. in. | 0.15" | €1,782.24 |
