SIMPLEX Lock Nut Hydraulic Rams
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N| Style | Model | Stroke Length | Nominal Capacity | Extended Height | Nominal Stroke Length | Outside Dia. | Effective Push Area | Oil Capacity Push | Plunger Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RLL1502 | 1 3/4" | 160 ton. | 7 3/5" | 2" | 8.07" | 31.17 sq. in. | 55.23 cu. in. | 0.27" | €4,628.04 | |
| A | RLL1002 | 1 3/4" | 105 ton. | 7.17" | 2" | 6 1/2" | 20.57 sq. in. | 36.43 cu. in. | 0.27" | €3,231.67 | |
| B | RCL302 | 1 23/24" | 35 ton. | 7 13/25" | 2" | 3.94" | 6.85 sq. in. | 13.48 cu. in. | 0.15" | €1,782.24 | |

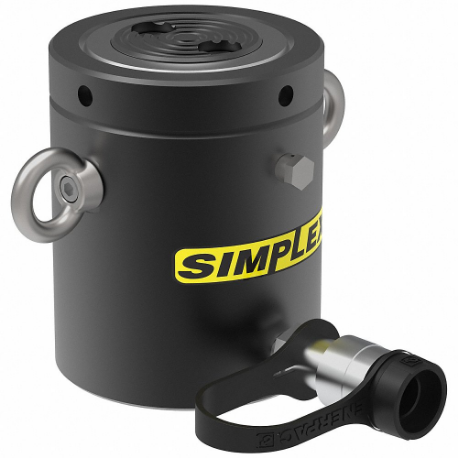

| C | RCL502 | 1 23/24" | 55 ton. | 7.99" | 2" | 4 23/25" | 10.99 sq. in. | 21.63 cu. in. | 0.15" | €2,161.92 | |
| D | RCL1002 | 1 23/24" | 105 ton. | 9.06" | 2" | 6.69" | 20.57 sq. in. | 40.5 cu. in. | 0.27" | €2,583.35 | |
| A | RLL502 | 1 23/24" | 55 ton. | 6.89" | 2" | 4 23/25" | 10.97 sq. in. | 21.66 cu. in. | 0.15" | €2,577.85 | |
| E | RCL15012 | 1 23/24" | 160 ton. | 9.65" | 12" | 8.27" | 31.16 sq. in. | 368.08 cu. in. | 0.27" | €7,132.67 | |
| F | RCL1502 | 1 23/24" | 160 ton. | 9.65" | 2" | 8.27" | 31.16 sq. in. | 61.35 cu. in. | 0.27" | €4,678.73 | |

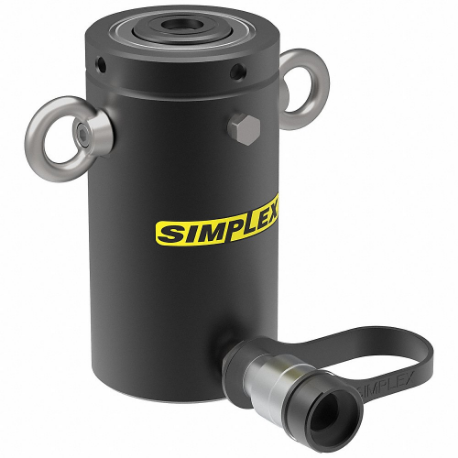

| G | RCL304 | 3 23/24" | 35 ton. | 11.46" | 4" | 3.94" | 6.85 sq. in. | 26.96 cu. in. | 0.15" | €1,979.43 | |
| H | RCL1006 | 5 11/12" | 105 ton. | 17.13" | 6" | 6.69" | 20.57 sq. in. | 121.5 cu. in. | 0.27" | €3,442.73 | |

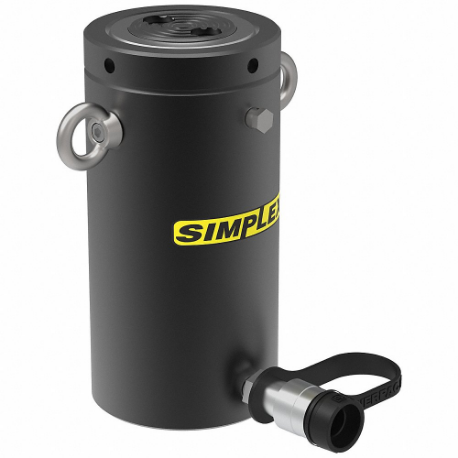

| I | RCL506 | 5 11/12" | 55 ton. | 16.18" | 6" | 4 23/25" | 10.99 sq. in. | 64.88 cu. in. | 0.15" | €2,565.76 | |

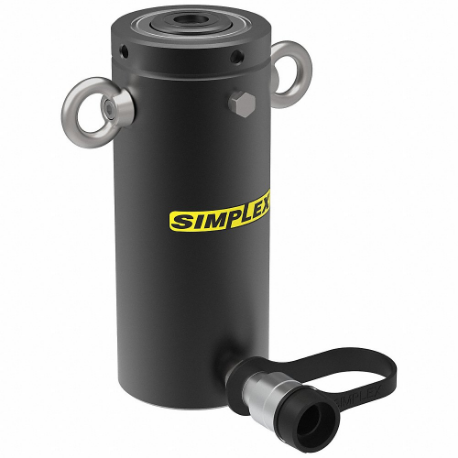

| J | RCL306 | 5 11/12" | 35 ton. | 15.59" | 6" | 3.94" | 6.85 sq. in. | 40.44 cu. in. | 0.15" | €2,153.35 | |
| E | RCL1506 | 5 11/12" | 160 ton. | 18.07" | 6" | 8.27" | 31.16 sq. in. | 184.04 cu. in. | 0.27" | €5,658.71 | |

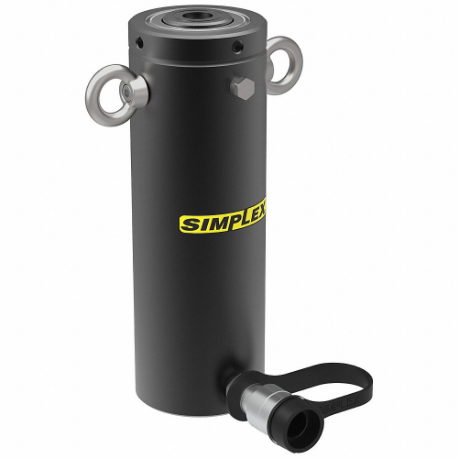

| K | RCL308 | 7 7/8" | 35 ton. | 19.53" | 8" | 3.94" | 6.85 sq. in. | 53.92 cu. in. | 0.15" | €2,406.50 | |

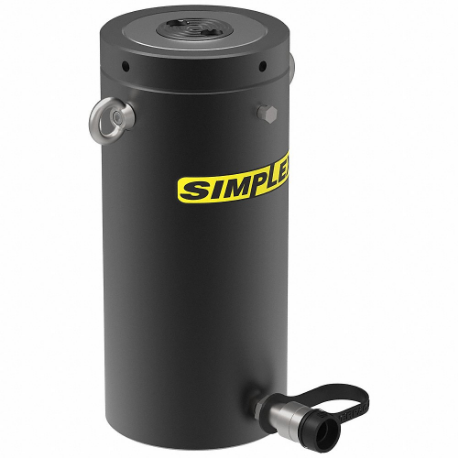

| L | RCL10010 | 9 5/6" | 105 ton. | 25 6/25" | 10" | 6.69" | 20.57 sq. in. | 202.49 cu. in. | 0.27" | €4,516.96 | |

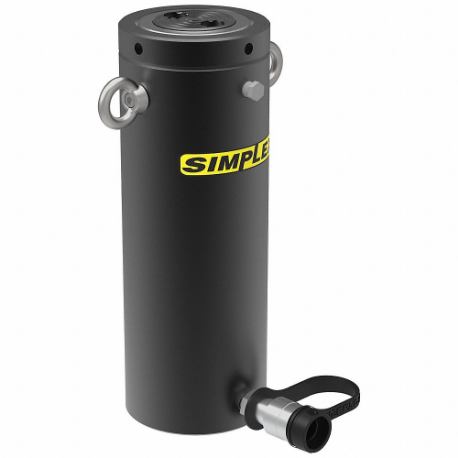

| M | RCL5010 | 9 5/6" | 55 ton. | 24 1/4" | 10" | 4 23/25" | 10.99 sq. in. | 108.14 cu. in. | 0.15" | €3,180.29 | |

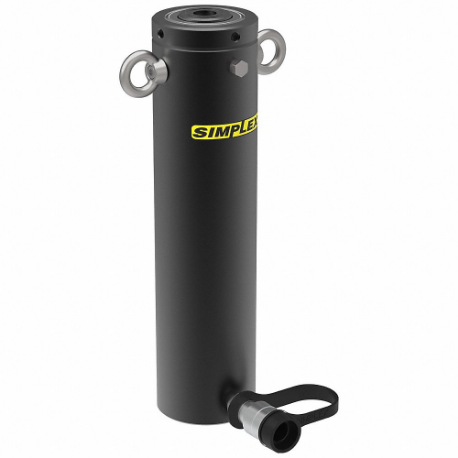

| N | RCL3012 | 11 19/24" | 35 ton. | 27 19/25" | 12" | 3.94" | 6.85 sq. in. | 80.88 cu. in. | 0.15" | €3,176.37 |
