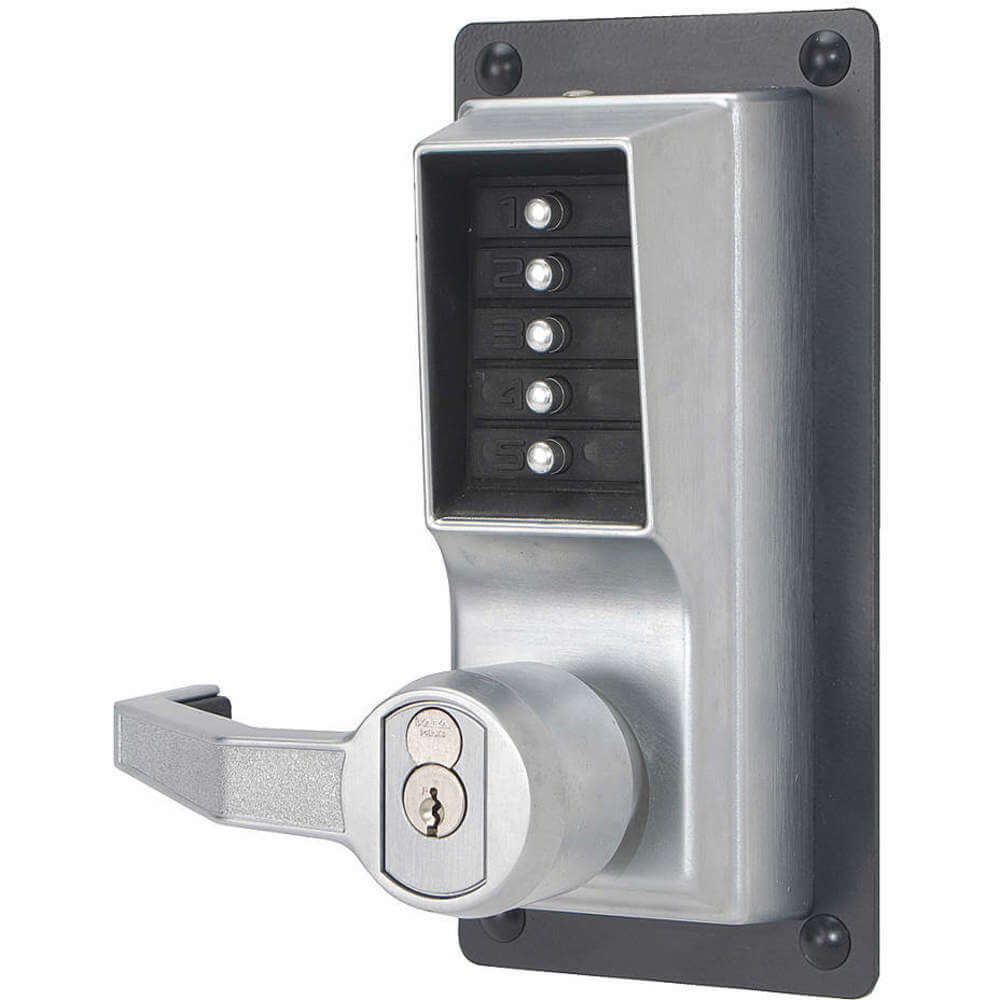

SIMPLEX LLP1020B26D41 Push Button Exit Trim Key Override Left
Item: AH3FUBModel: LLP1020B26D41Cross Ref: 31NG65
7 In Stock
Ships within 2 days via
10.00% off
€1,066.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Push Button Exit Trim |
| Ada Compliant | Yes |
| Backset Distance | 2 3/4" |
| Case Material | Zinc |
| Door Thickness - Maximum | 2 1/4" |
| Door Thickness - Minimum | 1 3/8" |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Entry With Key Override |
| Hand Orientation | Left-Handed |
| Includes | Combination Change Tool, Full Scale Template |
| Includes Core | No |
| Includes Hardware | Hardware Included |
| Key Override Options | Best And Equivalents (6 Or 7 Pin) |
| Keypad | 5 Button, Vandal Resistant |
| Lockset Function | Entrance |
| Lockset Handle Type | Lever |
| Lockset Type | Mechanical |
| Max. User Codes | 1 |
| Number Of Keypad Buttons | 5 |
| Operation Type | Push Button |
| Outside Depth | 3-15/16" |
| Outside Depth | 3.938" |
| Outside Height | 8 3/4" |
| Outside Width | 4 3/8" |
| Overall Depth | 3 15/16" |
| Overall Height | 8 3/4" |
| Overall Width | 4 3/8" |
| Product Type | Mechanical Push Button Lockset |
| Properties | Vandal Resistant, Weather Resistant |
| Standards | UL/CUL Listed |
| User Codes - Maximum | 1 |
| Weather Resistant | Yes |
Shipping Info:
| Ship weight (kg) | 3.47 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
Product Details:
- Key Override Options : Best and Equivalents (6 or 7 Pin)
- Electrical/Mechanical : Mechanical
Product Variants
| Product | Model | Finish | Outside Width | Outside Height | Fire Rating | Weather Resistant | Case Material | Outside Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

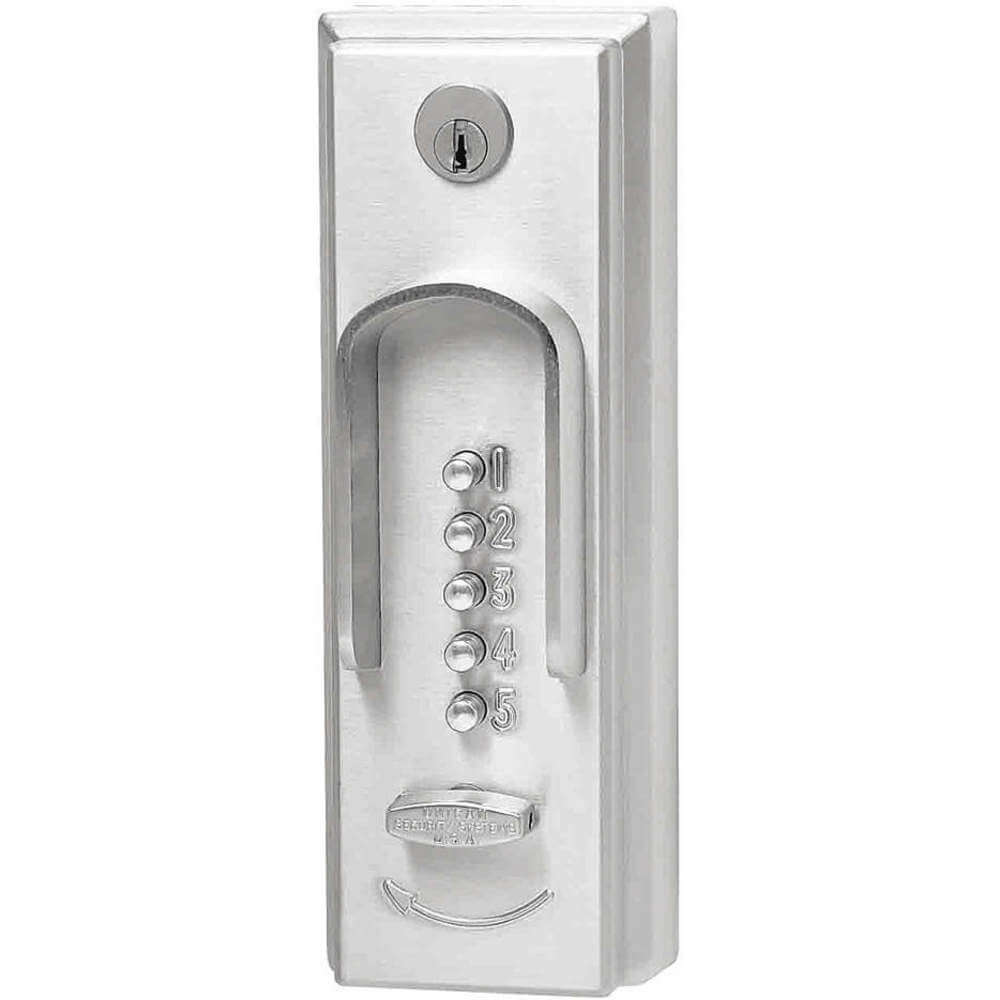

201526D41 | Satin Chrome | 3 1/8" | 8 5/8" | - | Yes | Zinc | - | €725.59 | |
|
LLP101026D41 | Satin Chrome | 4 3/8" | 8 3/4" | 3 hrs. | Yes | Zinc | 3.938" | €1,102.12 | |
 |

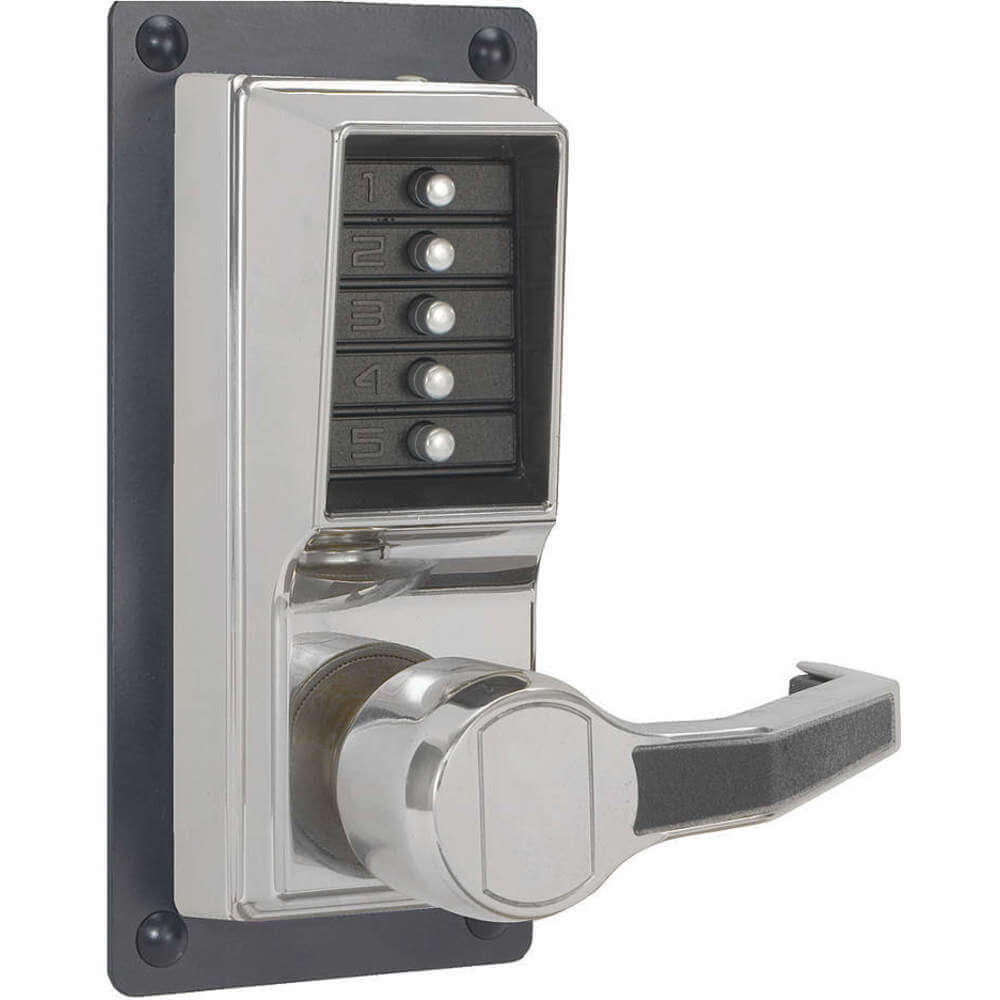

LRP101002641 | Bright Chrome | 4 3/8" | 8 3/4" | 3 hrs. | Yes | Zinc | 3.938" | €969.68 | |
 |

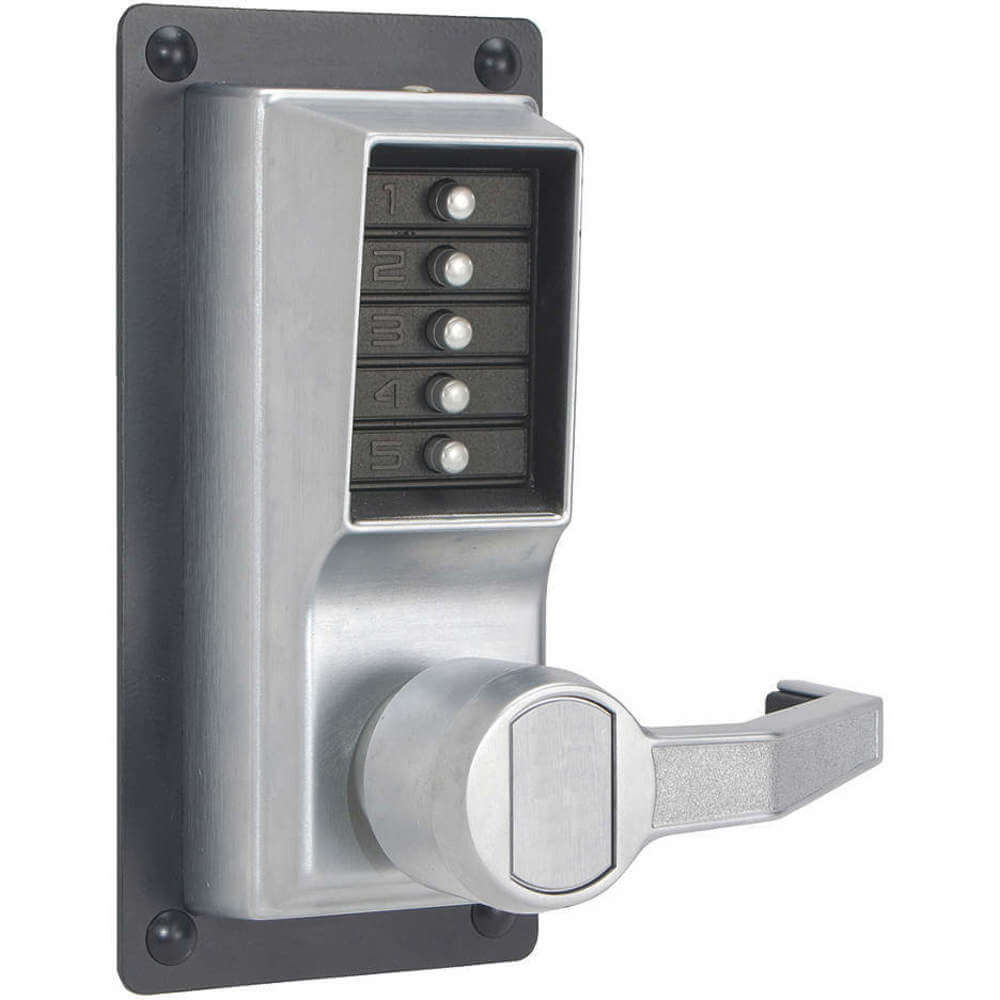

LRP101026D41 | Satin Chrome | 4 3/8" | 8 3/4" | 3 hrs. | Yes | Zinc | 3.938" | €994.07 | |
 |

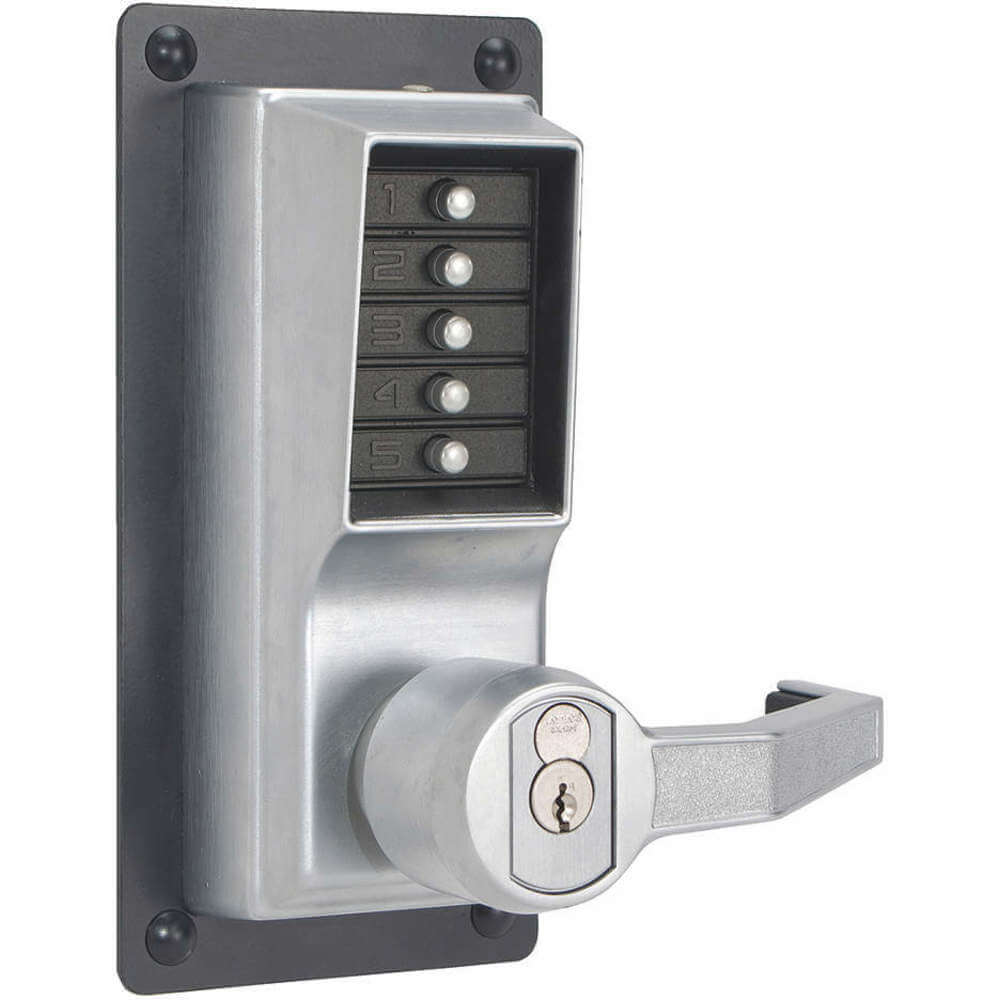

LRP1020B26D41 | Satin Chrome | 4 3/8" | 8 3/4" | 3 hrs. | Yes | Zinc | 3.938" | €1,027.42 | |
 |
LRP1020M-26D-41 | Satin Chrome | 4 3/8" | 8 3/4" | - | Yes | Zinc | 3.938" | €1,328.67 | |
|
LRP1020R26D41 | Satin Chrome | 4 3/8" | 8 3/4" | 3 hrs. | Yes | Zinc | 3.938" | €1,098.38 |
