SHIMPO TNP-2 Digital Torque Meter Range 17.7 Lb-in
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,506.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Digital Torque Meter |
| Accuracy | +/-0.5% FS |
| Auto Power Off | Yes |
| Battery Chemistry | Nickel Metal Hybride |
| Battery Run Time | 8 hrs. |
| Digital Display Screen Type | LCD |
| Display Type | Digital |
| Force Accuracy | -0.5% to +0.5% |
| Force Resolution | 0.001 N-M, 0.01 Kg-Cm, 0.01 Lbs.-Ft./In., 0.1 N-Cm |
| Function | User Selectable Comparator, Hi-Lo Set Points And One Button Memory Operation |
| Includes | (4) 30 mm Chuck Pin, Ac Adapter, USB Cable |
| Interface | USB |
| Manufacturer Warranty Length | 2 yrs. |
| Maximum Force Measured | 2N |
| Measurement Modes | Average Mode, Opening Peak Mode, Closing Peak Mode |
| Measuring Units | lbs.-in., Kg-cm, N-cm, N-m |
| Measuring Units | Newton Centimeter, Millinewton Meter, Gram Centimeter or Pound Inch |
| Memory | 1000 Data Points, Statistics (Average, Max And Min) |
| Minimum Force Measured | 0.001N |
| Number Of Batteries Required | 1 |
| Number Of Digits | 4 |
| Number Of Records Stored | 1000 |
| Output Type | USB |
| Power Source | AC Adapter |
| Sampling Rate | 1000 Hz |
| Tester Type | Digital Cap Torque Tester |
Shipping Info:
| Ship weight (kg) | 8.39 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 41.66 |
| Ship width (cm) | 31.5 |
| HS code | 9031808085 |
| Country of Origin | CN |
Product Variants
| Model | Measuring Units | Maximum Force Measured | Minimum Force Measured | Power Source | Drive Size | Max. Torque | Min. Torque | Torque Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TNP-0.5 | g-cm, lbs.-in., mN-m, N-cm | 0.5N | 0.01N | AC Adapter | - | - | - | - | €1,674.00 | |
| TNP-5 | g-cm, mn-m, n-cm | 5N | 0.001N | AC Adapter | - | - | - | - | €1,674.00 | |
| TNP-10 | lbs.-in., Kg-cm, N-cm, N-m | 10N | 0.01N | AC Adapter | - | - | - | - | €1,674.00 | |

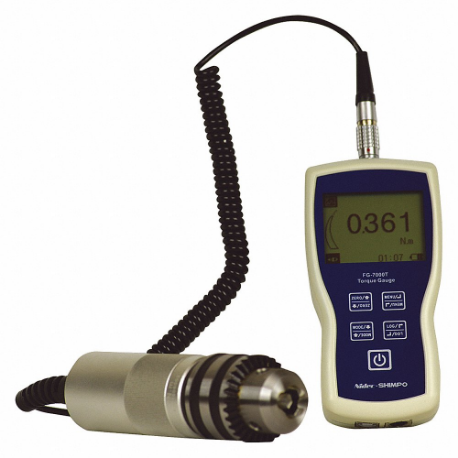

| FG-7000T-1 | Cm-Kgf, In Lbf, N-M, Ncm | - | - | AC/DC Adapter | 1/32" to 25/64" | 1 N-m | 0.005 lbs.-in. | 0.005 lbs.-in. to 1 N-m | €2,716.80 | |
| FG-7000T-2 | Cm-Kgf, In Lbf, N-M, Ncm | - | - | AC/DC Adapter | 1/32" to 25/64" | 5 N-m | 0.01 lbs.-in. | 0.01 in-lb to 5 N-m | €2,790.32 | |
| FG-7000T-3 | Cm-Kgf, In Lbf, N-M, Ncm | - | - | AC/DC Adapter | 5/64" to 33/64" | 10 N-m | 0.01 lbs.-in. | 0.01 lbs.-in. to 10 N-m | €3,054.99 |
