SHIMPO FGV-500HXY Digital Force Gauge Range 500 Lb Usb
Item: AF7XNTModel: FGV-500HXYCross Ref: 23MD82
7 In Stock
Ships within 2 days via
10.00% off
€1,351.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | High Capacity Digital Force Gauge |
| Accuracy | +/-0.2% FS |
| Auto Power Off | Yes |
| Batteries Included | Yes |
| Battery Chemistry | Nickel Cadmium |
| Battery Run Time | 17 hrs. |
| Digital Display Screen Type | LCD |
| Digital Force Gauge Features | USB and Rs-232 OuTPuts |
| Display Type | Analog |
| Force Accuracy | -0.2% to +0.2% |
| Force Resolution | 0.1 Kg, 0.1 lbs., 1N |
| Function | Peak Hold For Tension And Compression, Hi-Lo Comparator With Indicator, Memory Mode |
| Gauge Adapters Included | Chisel, Cone, Extension Rod, Flat Head, Hook |
| Includes | (2) Handles, Ac Adapter, Carrying Case, Metric To Inch Thread Adapter, USB Cable |
| Interface | RS-232, USB |
| Manufacturer Warranty Length | 2 yrs. |
| Maximum Force Measured | 500 lbf. |
| Measurement Modes | Real Time, Compression Peak, Tension Peak, Comparator |
| Measuring Units | Pound, Kilogram or Newton |
| Measuring Units | kg, lbs., N |
| Minimum Force Measured | 0.1 lbf. |
| Number Of Batteries Required | 1 |
| Number Of Digits | 4 |
| Number Of Records Stored | 1000 |
| Power Source | AC Adapter, Battery |
| Sampling Rate | 1000 Hz |
| Tester Type | Digital Force Gauge |
Shipping Info:
| Ship weight (kg) | 3.39 |
| Ship height (cm) | 36.83 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 8.26 |
| HS code | 9024800000 |
Product Variants
| Product | Model | Maximum Force Measured | Tester Type | Force Accuracy | Force Resolution | Measuring Units | Number Of Records Stored | Digital Force Gauge Features | Minimum Force Measured | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

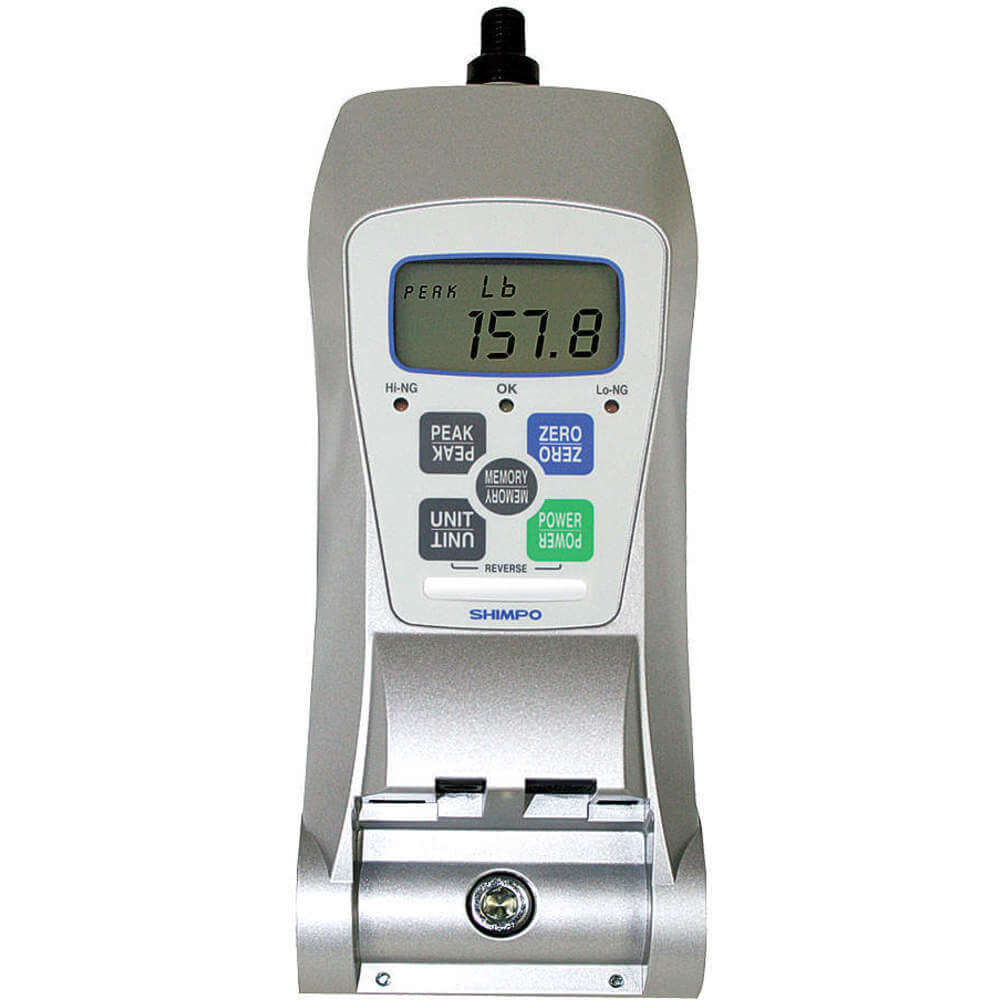

FGV-1000HXY | 1000 lbf. | Digital Force Gauge | -0.2% to +0.2% | 0.1 Kg, 0.1 lbs., 1N | kg, lbs., N | 1000 | USB and Rs-232 OuTPuts | 0.1 lbf. | €2,152.63 |
