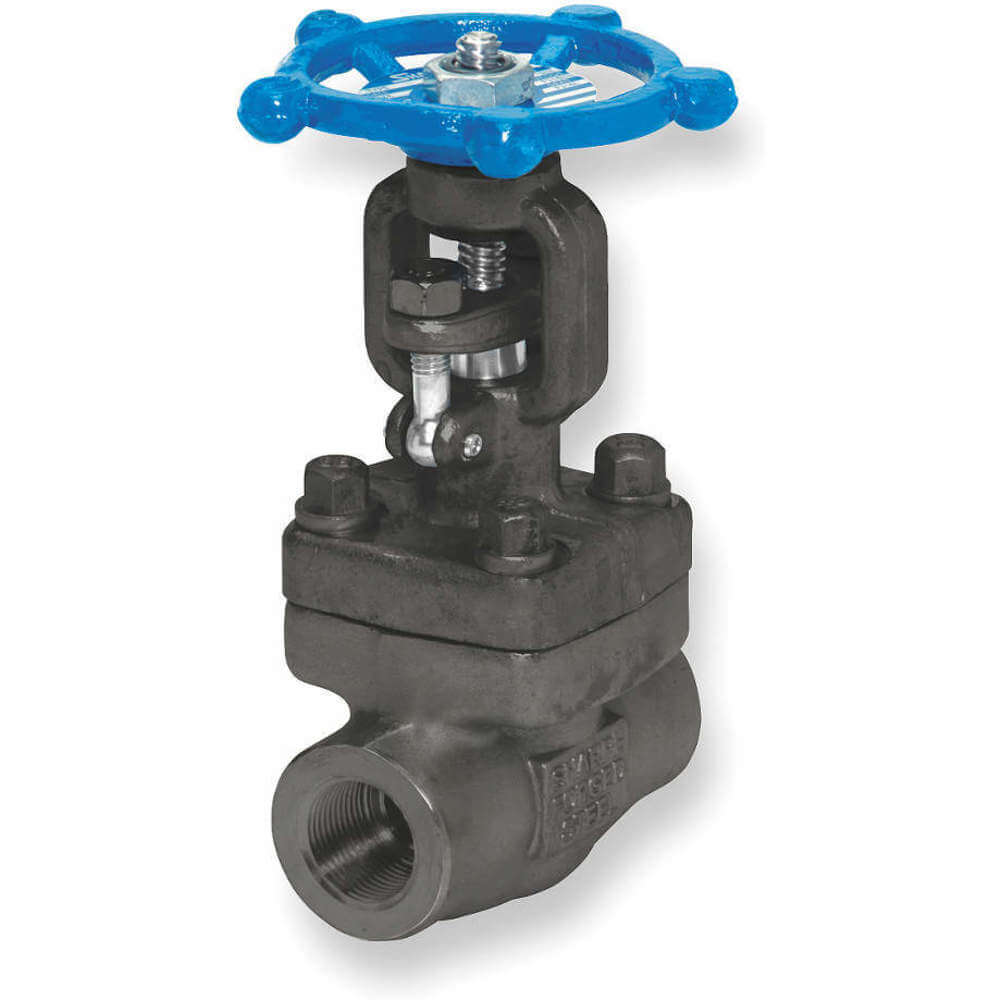

SHARPE VALVES SV34834TE014 Gate Valve Class 800 1-1/2 Inch Fnpt
Get it by Thursday, Aug 27
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€265.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gate Valve |
| Body Material | Forged Steel |
| Bonnet Material | Forged Steel |
| Bonnet Style | Bolted |
| Class | Class 800 |
| Coefficient Of Volume | 100 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1 1/2" |
| Connection Size-side 2 | 1 1/2" |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Steam, Water |
| Handle Height | 9 1/2" |
| Handle Material | Carbon Steel |
| Handle Type | Wheel |
| Inlet To Outlet Length | 4.719" |
| Max. Fluid Temp. | 850°F |
| Max. Operating Temp. | 400°F |
| Max. Pressure (cwp) | 1975 psi |
| Max. Steam Pressure | 1460 psi |
| Max. Water Pressure | 1975 psi |
| Media Temp. | -20°F to +400°F |
| Min. Operating Temp. | -20°F |
| Nominal Valve Size | 1 1/2" |
| Overall Length | 4.72" |
| Pipe Size | 1 1/2" |
| Seal Material | Graphite |
| Seat Material | Stainless Steel |
| Stem Grade | Grade 410 |
| Stem Material | 410 Stainless Steel |
| Stem Type | Rising |
| Top Of Handle To Inlet Center | 9.062" |
| Valve Series | 3484 Series |
| Valve Stem Type | Rising |
| Wedge Material | 410 Stainless Steel |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 6.98 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 15.24 |
| HS code | 8481803055 |
| Country of Origin | CN |
Product Variants
| Model | Top Of Handle To Inlet Center | Inlet To Outlet Length | Connection Size-side 1 | Connection Size-side 2 | Handle Height | Media Temp. | Nominal Valve Size | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SV34834TE002 | 6 1/2" | 3.109" | 1/4" | 1/4" | 5.9" | -20°F to +400°F | 1/4" | 400°F | €136.07 | |
| SV34834TE003 | 6 1/2" | 3.109" | 3/8" | 3/8" | 6.1" | -20°F to +400°F | 3/8" | 400°F | €136.07 | |
| SV34834TE004 | 6.547" | 3.109" | 1/2" | 1/2" | 6.3" | -20°F to +400°F | 1/2" | 400°F | €136.07 | |
| SV34834TE006 | 6.656" | 3.578" | 3/4" | 3/4" | 6.3" | -20°F to +400°F | 3/4" | 400°F | €138.91 | |
| SV34834TE010 | 7.593" | 4 3/8" | 1" | 1" | 1.33" | -20°F to +850°F | 1" | 850°F | €177.99 | |
| SV34834TE012 | 9.062" | 4.719" | 1 1/4" | 1 1/4" | 9.06" | -20°F to +400°F | 1 1/4" | 400°F | €272.46 | |
| SV34834TE020 | 11.141" | 5.516" | 2" | 2" | 11.14" | -20°F to +400°F | 2" | 400°F | €358.66 |
