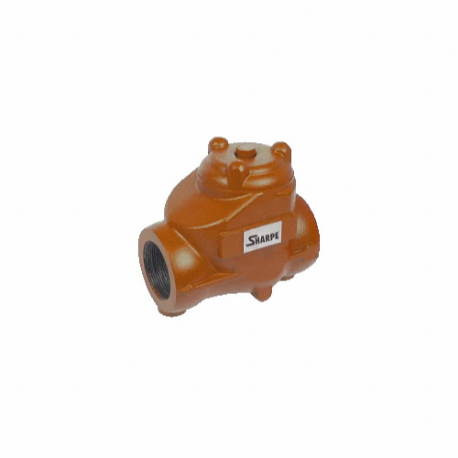

SHARPE VALVES 4353014100 Check Valve, Single Flow, Inline Swing, Ductile Iron, 2 Inch Pipe/Tube Size, Threaded
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€200.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Check Valve |
| 3-a Certified | Not Rated |
| Application | Oil Patch |
| Body Material | Ductile Iron |
| Cap To Inlet Center | 2" |
| Check Mechanism | Swing |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 2" |
| Connection Size-side 2 | 2" |
| Connection Type | FNPSM x FNPSM |
| Connection Type-side 1 | NPSM |
| Connection Type-side 2 | Npsm |
| Disc Material | Stainless Steel |
| Flow Design | Single |
| For Media | Oil |
| Full Flow | Yes |
| Grade | Grade 316 |
| Height-cap To Inlet Center | 2" |
| Included Counterweight | No Counterweight |
| Length | 6.297" |
| Max. Operating Temp. | 280°F |
| Max. Pressure (cwp) | 750 psi |
| Max. Water Pressure | 750 psi |
| Mechanism And Body Design | Inline Swing |
| Media Temp. | 280°F |
| Mounting Orientation | Horizontal, Vertical |
| Overall Length | 6.3" |
| Pipe Size, Tube Size | 2" |
| Seal Material | FKM |
| Seat Material | Rubber |
| Silent Check | Standard |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | OP20 Series |
| Valve Ways | 2-Way |
Shipping Info:
| Ship weight (kg) | 5.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Seat Material | Mechanism And Body Design | Pipe Size, Tube Size | Media Temp. | Connection Size-side 1 | Connection Type-side 1 | Connection Type-side 2 | Connection Size-side 2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4353013520 | Rubber | Inline Swing | 1" | 280°F | 1" | NPSM | Npsm | 1" | €199.22 | |
| 4353013700 | Rubber | Inline Swing | 1" | 280°F | 1" | NPSM | Npsm | 1" | €200.79 | |
| 4353013540 | Rubber | Inline Swing | 1" | 270°F | 1" | NPSM | Npsm | 1" | €199.22 | |
| 4353013580 | Rubber | Inline Swing | 1" | 280°F | 1" | NPSM | Npsm | 1" | €199.22 | |
| 4353013620 | Rubber | Inline Swing | 2" | 270°F | 2" | NPSM | Npsm | 2" | €408.20 | |
| 4345001000 | Rubber | Inline Swing | 2" | 240°F | 2" | NPSM | Npsm | 2" | €200.29 | |
| 4353013640 | Rubber | Inline Swing | 2" | 280°F | 2" | NPSM | Npsm | 2" | €408.20 |
