SHARKBITE U260LF Elbow 90 Degree 1 In
Item: AA8NRDModel: U260LFCross Ref: 19F865
7 In Stock
Ships within 2 days via
10.00% off
€36.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow, 90 Degrees |
| Application | Potable Water |
| Basic Material | Metal |
| Body Material | DZR Brass |
| Color | Brass |
| Compatible Tube Material | Copper, CPVC, HDPE, PEX, Polyethylene |
| Connection Type | Tube |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 1" |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outer Diameter | 1" |
| Gasket Material | EPDM |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 1 15/16" |
| Release Ring Material | EPDM |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| System Of Measurement | Imperial |
| Temp. Range | 0°F to +200°F |
| Tube Size | 1" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 17.78 |
| HS code | 7412200045 |
| Country of Origin | AU |
Product Details:
- Special Features: Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Product Variants
| Product | Model | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Side B Tube Outer Diameter | Release Ring Material | Fitting Side A Tube Outer Diameter | Overall Length | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

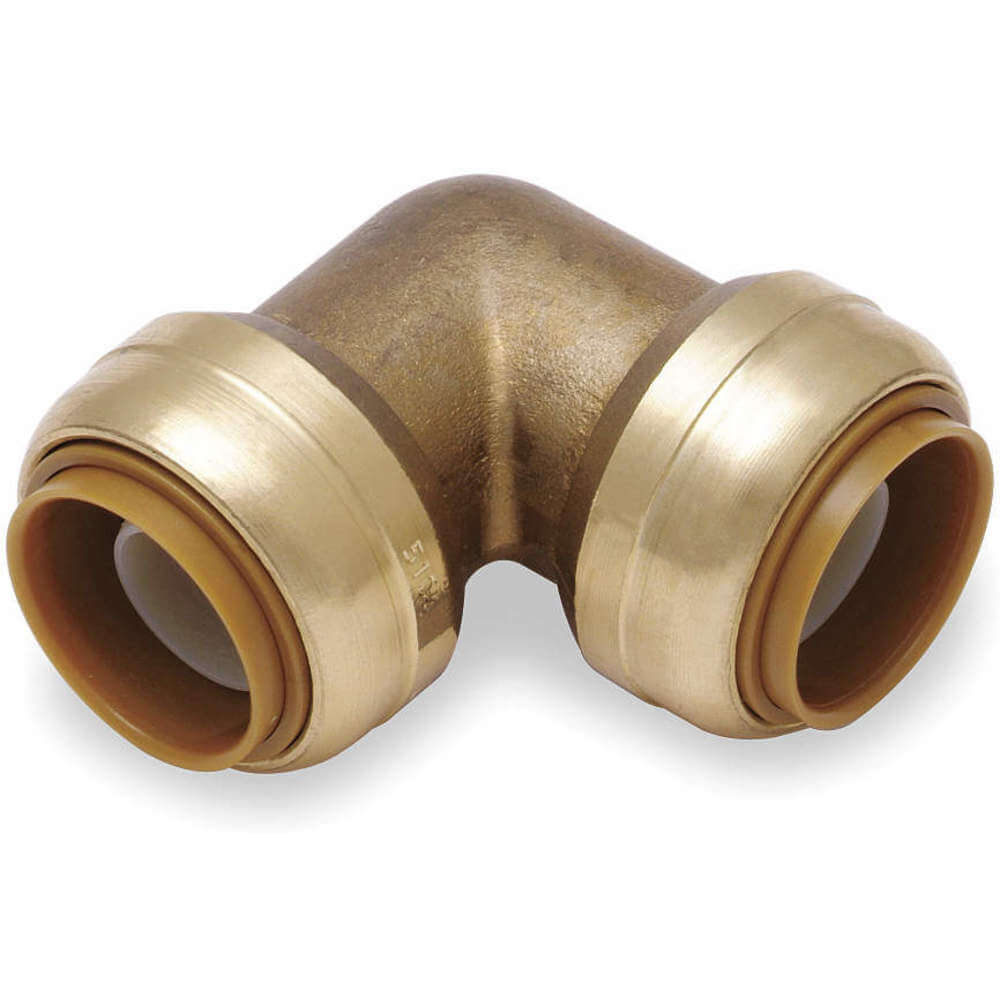

U256LF | Elbow | Push-To-Connect | Push-To-Connect | 3/4" | EPDM | 3/4" | 1 5/8" | Tube | €21.69 | |
 |

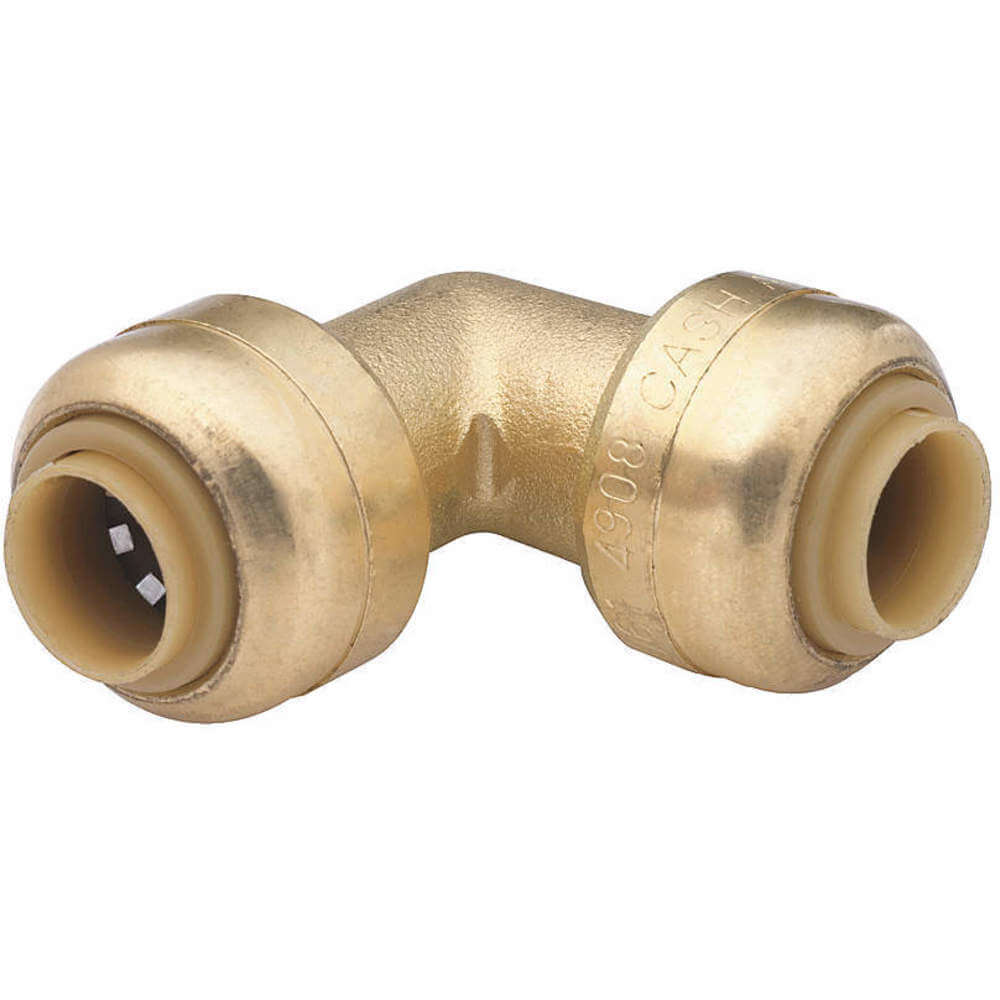

U244LF | Elbow | Push-To-Connect | Push-To-Connect | 1/4" | EPDM | 1/4" | 1/2" | Tube | €17.41 | |
 |

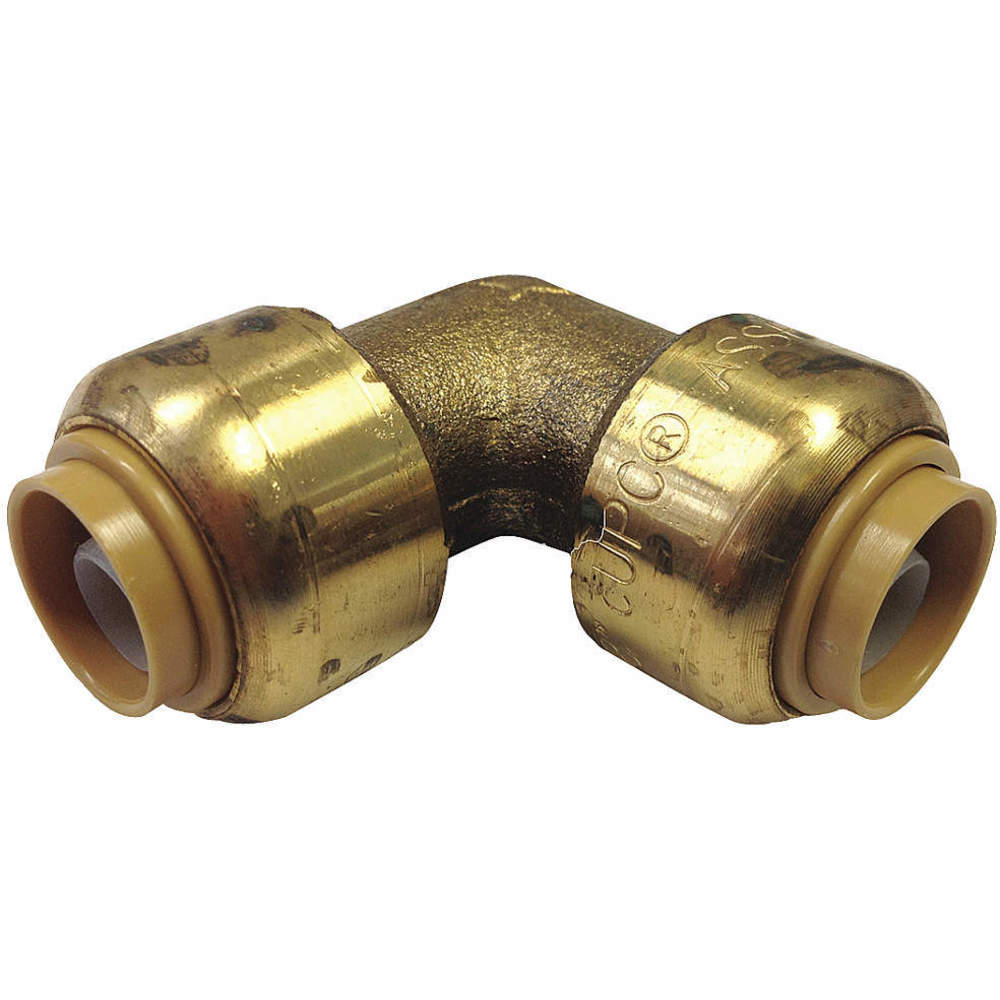

U246LF | Elbow | Push-To-Connect | Push-To-Connect | 3/8" | EPDM | 3/8" | 1 9/32" | Push Fit | €18.31 | |
 |
UXL0241 | Swivel Elbow Adapter | Push To Connect | Push To Connect | 1 1/2" | Polysulfone | 1 1/2" | 10 1/8" | - | €85.01 |
