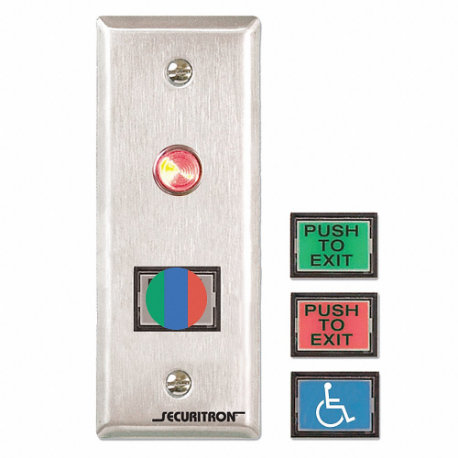

SECURITRON PB3N Push To Exit Button, Narrow Stile, Momentary
Item: CU2LPBModel: PB3NCross Ref: 45CG19
7 In Stock
Ships within 2 days via
10.00% off
€196.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push to Exit Button |
| Ada Compliant | Yes |
| Button Color | Green |
| Color | Green, Red |
| Current Rating | 3A |
| Cylinder | No |
| Depth | 3" |
| Event Audit Trail | No |
| Failure Mode | Fail Safe Or Fail Secure |
| Features | Field Convertible From Dpst To Dpdt |
| Finish | Unfinished |
| For Use With | Magnetical Lock, Alone Or Conjunction With Door Closers And Other Hardware |
| Height | 4 1/2" |
| Includes | (2) Lenses |
| Includes Hardware | Hardware Included |
| Input Voltage | 12/24V DC |
| Keypad | No |
| Lock Assembly Type | Mortise |
| Material | Stainless Steel |
| Operating Temperature - Maximum | 110°F |
| Operating Temperature - Minimum | 32°F |
| Operation Style | Manual |
| Operation Type | Push Button |
| Output | DPST Relay |
| Overall Depth | 5/8" |
| Overall Height | 4 1/2" |
| Power Source | DC Power |
| Product Type | Exit Push Button |
| Rating | 3A |
| Supports Touchless Operation | No |
| Switch Action | DPST, DPDT |
| Type | Narrow Stile |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Depth | Height | Current Rating | Finish | Button Color | Button Dia. | Keypad | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DTSB-CL | Gray | 2 3/4" | 3" | 2A | Clear Anodized | - | - | No | €507.35 | |
|
DTSB-CL-48 | Gray | 2 3/4" | 3" | 2A | Clear Anodized | - | - | No | €459.86 | |
 |
TSB-BK | Black | - | - | - | - | - | - | - | €709.95 | |
 |
DTSB-BK-48 | Black | 2 3/4" | 3" | 2A | Clear Anodized | - | - | No | €519.69 | |
|
DTSB-BK-42 | Black | 2 3/4" | 3" | 2A | - | - | - | No | €493.81 | |
|
DTSB-CL-42 | Gray | 2 3/4" | 3" | 2A | Clear Anodized | - | - | No | €451.68 | |
 |
EMB-CL | Gray | 1 39/64" | 2 39/64" | 5A | Clear Anodized | - | - | No | €538.72 |
