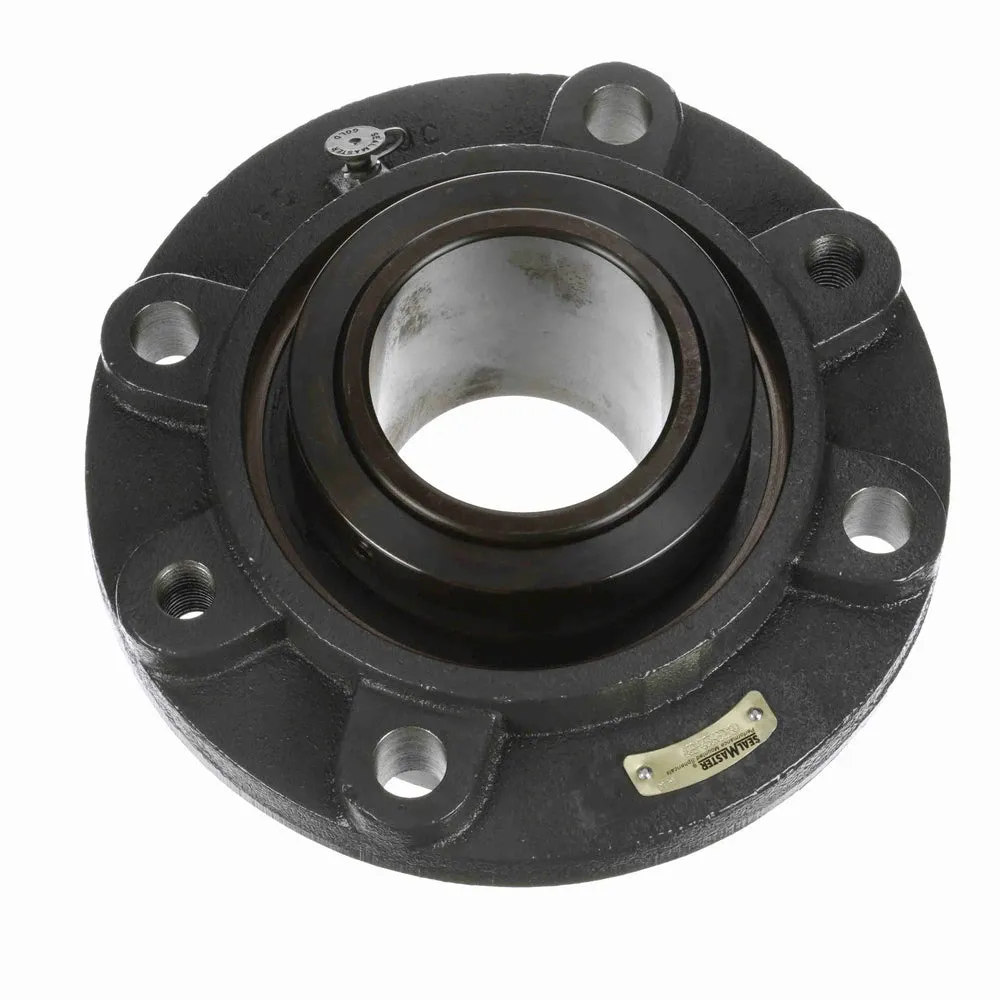

SEALMASTER USFCE5000-307 Spherical Roller Bearing, 3-7/16 Inch Bore, 4-Bolt Piloted Flange Mount
Get it by Thursday, Aug 27
€1,589.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Angle Of Misalignment | -2° to +2° |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Chrome Steel |
| Bearing Type | Spherical Roller |
| Bolt Center To Center Length | 6.099" |
| Bolt Circle Dia. | 8 5/8" |
| Bolt Hole Size Dimension | 3/4" |
| Bolt Hole Spacing | Not Available |
| Bolt Hole Type | Round |
| Bolt Size | 3/4" |
| Bore Dia. | 3 7/16" |
| Centerline To Front Face | 3.156" |
| Collar Outside Dia. | 5.31" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 72640 lbs. |
| End Type | Open End |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, USF Series |
| Flange Thickness | 1 7/16" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Length | 10 1/4" |
| Housing Material | Ductile Iron |
| Housing Width | 3 1/8" |
| Inner Ring Width | 4 15/32" |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Collar Mount |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2500 RPM |
| Max. Temp. | 250°F |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Dynamic |
| Mounted Unit Duty | Heavy Duty |
| Operating Temp. Range | -20°F to +220°F |
| Overall Depth | 4.4688" |
| Overall Height To Inner Ring | 2.95" |
| Overall Width | 2.938" |
| Pilot Configuration | With Pilot |
| Pilot Depth | 1 5/16" |
| Pilot Dia. | 7 3/8" |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Type | Felt Labyrinth |
| Series | USF Series |
| Shaft Dia. | 3 7/16" |
Shipping Info:
| Ship weight (kg) | 15.71 |
| Ship height (cm) | 11.35 |
| Ship length (cm) | 11.35 |
| Ship width (cm) | 7.46 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Bolt Size | Overall Width | Pilot Dia. | Bolt Circle Dia. | Dynamic Radial Load Capacity | Locking Device | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
USFCE5000-211 | 2 11/16" | Felt Labyrinth Seal | 5/8" | 2 7/16" | 6 3/8" | 7 1/2" | 47447 lbs. | Concentric Collar | €1,163.80 | |
|
USFCE5000-311 | 3 11/16" | Felt Labyrinth Seal | 3/4" | 2.6563" | 8 1/8" | 9 3/8" | 96050 lbs. | Concentric Collar | €2,386.53 | |
 |

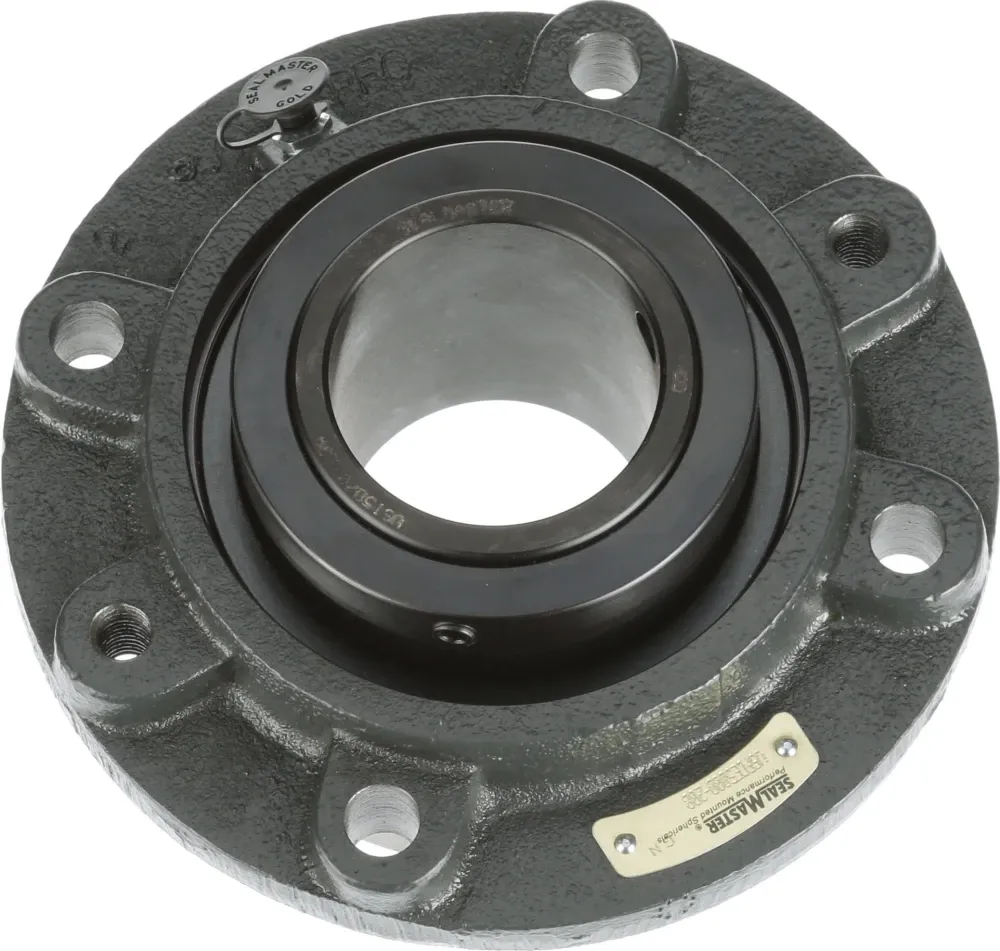

USFCE5000-315 | 3 15/16" | Felt Labyrinth Seal | 3/4" | 2.6563" | 8 1/8" | 9 3/8" | 96050 lbs. | Concentric Collar | €2,386.53 | |
 |
USFCE5000-400-C | 4" | Double Lip Contact | 3/4" | 2.6563" | 8 1/8" | 9 3/8" | 96050 lbs. | Concentric Collar | €2,369.76 | |
 |
USFCE5000-200-C | 2" | Double Lip Contact | 3/8" | 1.9844" | 4 1/2" | 5 3/8" | 23520 lbs. | Concentric Collar | €623.82 | |
|
USFCE5000-203 | 1 3/16" | Standard Felt Seal | 1/2" | 2 1/16" | 5" | 6" | 28087 lbs. | Collar Mount Set Screw | €687.26 | |
|
USFCE5000-308 | 3 1/2" | Felt Labyrinth Seal | 3/4" | 2 15/16" | 7 3/8" | 8 5/8" | 72640 lbs. | Concentric Collar | €1,500.92 |
