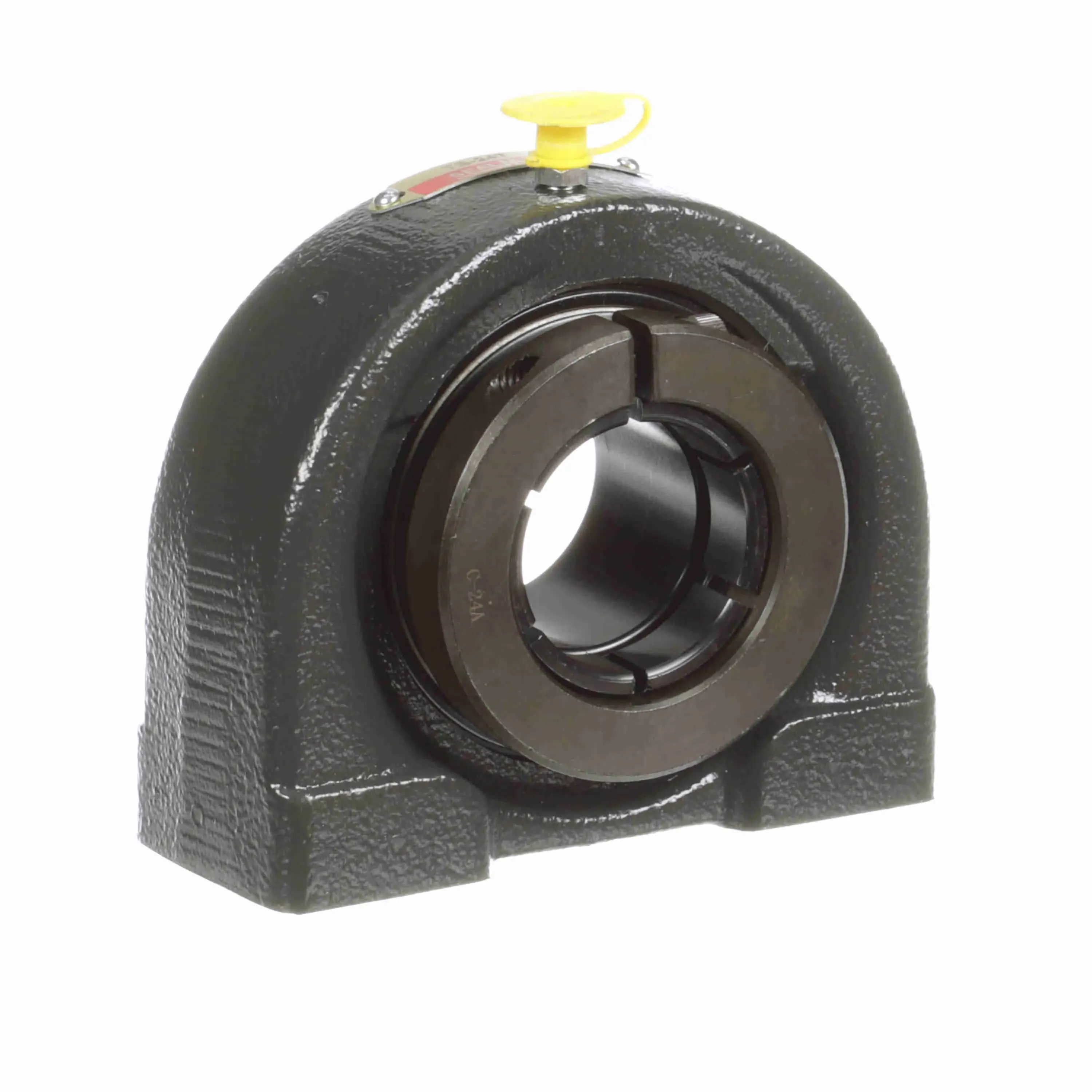

SEALMASTER TB-24T 705553 Mounted Cast Iron Tapped Base Pillow Block Ball Bearing
Get it by Monday, Dec 22
€317.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 4 5/8" |
| Base To Center Height | 1 15/16" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 3 1/2" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 1/4" |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 22/25" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2 1/16" |
| Insert | 2-18T |
| Length Through Bore | 2" |
| Locking Collar Outside Diameter | 2.688" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5850 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.93" |
| Overall Length | 4.63" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Thread Depth | 3/4" |
| Thread Size | 1/2"-13 |
Shipping Info:
| Ship weight (kg) | 2.4 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Width | Overall Height | Overall Length | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TB-19TC CR | - | - | - | - | - | - | - | - | €304.48 | |
 |
TB-20T | Pillow Block, Tapped Base | Concentric | 1 1/4" | 1 22/25" | 3 3/4" | 4.41" | 2-14T | 6500 RPM | €258.45 | |
 |
TB-31TC | Pillow Block, Tapped Base | Concentric | 1 15/16" | 2.17" | 4.63" | 5 11/25" | 2-115TC | 3550 RPM | €370.66 | |
 |
TB-14C CR | Tapped Base Pillow Block | - | - | - | - | - | - | - | €387.54 | |
 |
TB-20RH RM | Tapped Base Pillow Block | - | - | - | - | - | - | - | €1,413.86 | |
 |
TB-12C | Pillow Block, Tapped Base | Set Screw | 3/4" | 1 1/2" | 2 14/25" | 3.13" | 2-012C | 6450 RPM | €173.75 | |
 |
TB-19 HT | - | - | - | - | - | - | - | - | €311.16 |
