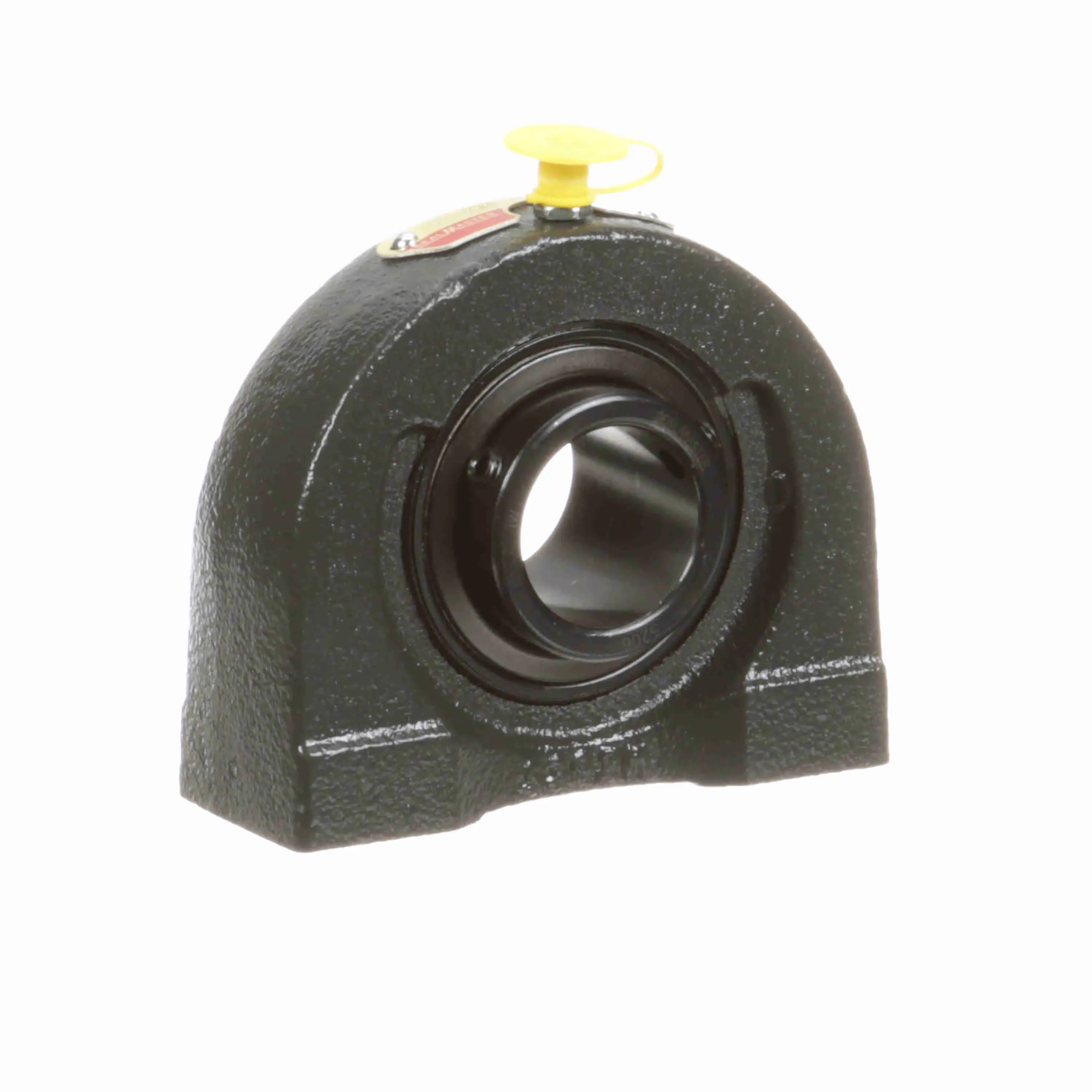

SEALMASTER TB-206 710093 Pillow Block Bearing, 2 Bolt Tap Base Pillow Block, 30mm Bore, Set Screw Mount
Get it by Tuesday, Sep 1
€300.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 4" |
| Base To Center Height | 1.688" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 3" |
| Bore Dia. | 30 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 22/25" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 1/2" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 5206 |
| Inside Ring Outside Dia. | 1.594" |
| Length Through Bore | 1 1/2" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.41" |
| Overall Length | 4" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 65 lbs.-in. to 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Thread Depth | 0.63" |
| Thread Size | 7/16"-14 |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.38 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Width | Base Width | Dynamic Load Capacity | Base To Center Height | Housing Type | Rolling Element | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TB-20T | 1 1/4" | 3 3/4" | 1 22/25" | 1 3/4" | 5782 lbs. | 1 7/8" | Pillow Block, Tapped Base | Ball Bearing | €258.45 | |
 |
TB-31TC | 1 15/16" | 4.63" | 2.17" | 2" | 7889 lbs. | 2.252" | Pillow Block, Tapped Base | Ball Bearing | €370.66 | |
 |
TB-14C CR | - | - | - | - | - | - | Tapped Base Pillow Block | Ball | €387.54 | |
 |
TB-20RH RM | - | - | - | - | - | - | Tapped Base Pillow Block | Ball | €1,413.86 | |
 |
TB-12C | 3/4" | 2 14/25" | 1 1/2" | 1 1/2" | 2611 lbs. | 1.312" | Pillow Block, Tapped Base | Ball Bearing | €173.75 | |
 |
TB-12T | 3/4" | 2 14/25" | 1 1/2" | 1 1/2" | 2611 lbs. | 1.312" | Pillow Block, Tapped Base | Ball Bearing | €175.74 | |
 |
TB-16 LT | - | - | - | - | - | - | Tapped Base Pillow Block | Ball | €257.87 |
