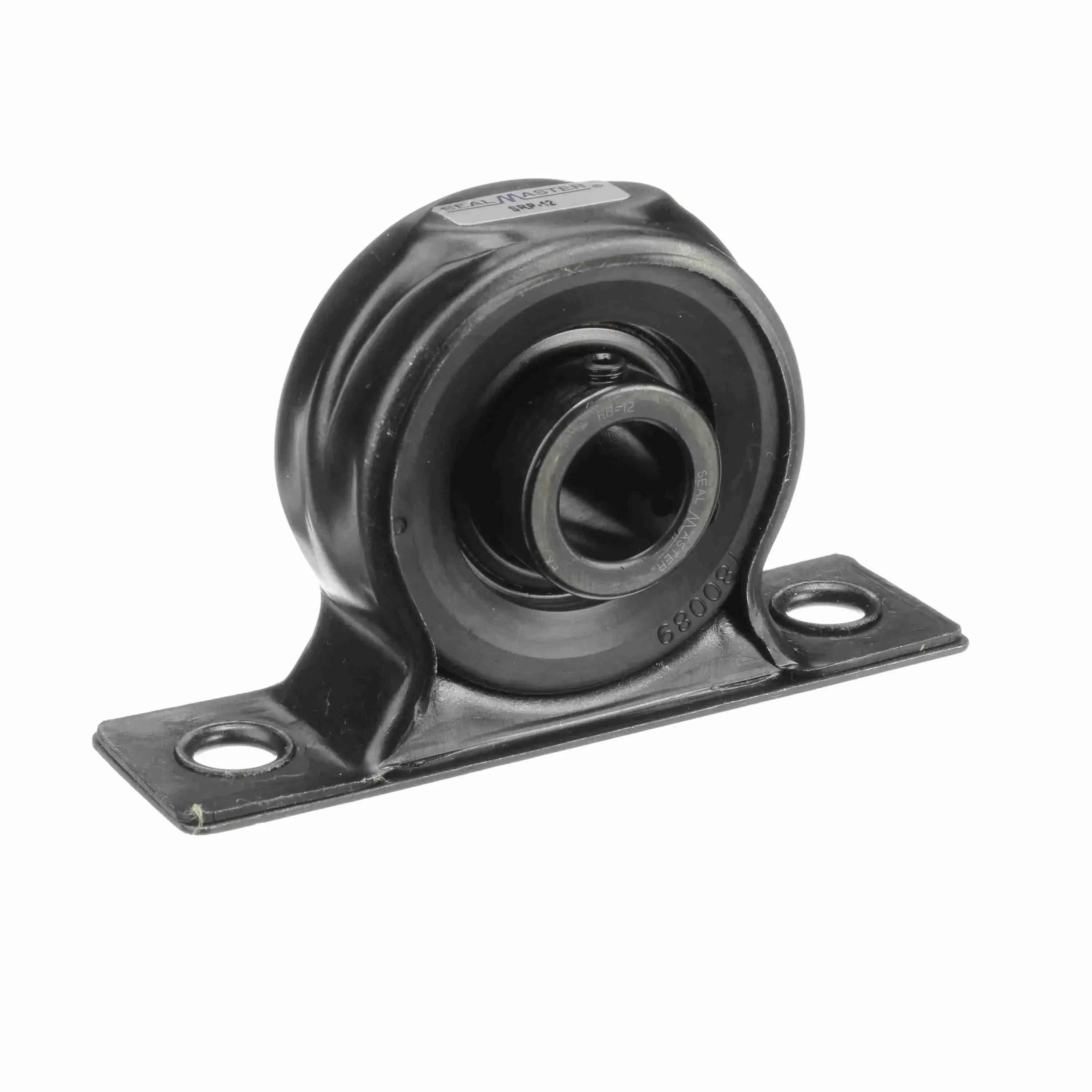

SEALMASTER SRP-12 700676 Pillow Block Bearing, 3/4 Inch Bore, Steel, Set Screws, 1 1/2 Inch Shaft Ht
Item: BD8MQGModel: SRP-12Cross Ref: 44A596 / 700676
7 In Stock
Ships within 2 days via
10.00% off
€295.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | No |
| Base Height | 0.171" |
| Base Length | 4 3/4" |
| Base To Center Height | 1 1/2" |
| Base Width | 1.31" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 3/8" |
| Bolt Spacing | 3.63" |
| Bore Dia. | 3/4" |
| Bore Diameter | 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 7/8" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 2611 lbs. |
| Dynamic Radial Load Capacity | 200 lbf. |
| End Cap | No |
| Features | Land Riding Retainer Design Provides Superior Pocket Clearance That Allows For 360° Grease Circulation Around The Rolling Elements, Powder Coated Epoxy Cast Iron Housing With Extended Inner Ring Bearings, Sealmaster Exclusive Lock Pin And Dimple For Direct Lubrication And Anti-Rotation, Zone Hardened Inner Ring With 120° Spacing Setscrew Locking With Diamond Faceted Setscrews |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.18" |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Stamped Steel |
| Housing Material Finish | Black Oxide |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.188" |
| Insert | SRC-12 |
| Length Through Bore | 1.278" |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 7300 RPM |
| Maximum Speed | 7300 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 3 5/8" |
| Mount Hole Size | 7/16" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/8" |
| Mounting Surface To Shaft Center Height | 1 1/2" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.81" |
| Overall Length | 4 3/4" |
| Overall Width | 1.31" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Static Radial Load Capacity | 120 lbf. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0907 cPS |
| Vibration Frequency Outer Ring Defect | 0.0593 cPS |
| Vibration Frequency Roller Spin | 0.0381 cPS |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Bearing Insert Type | Shaft Locking Type | Housing Material | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

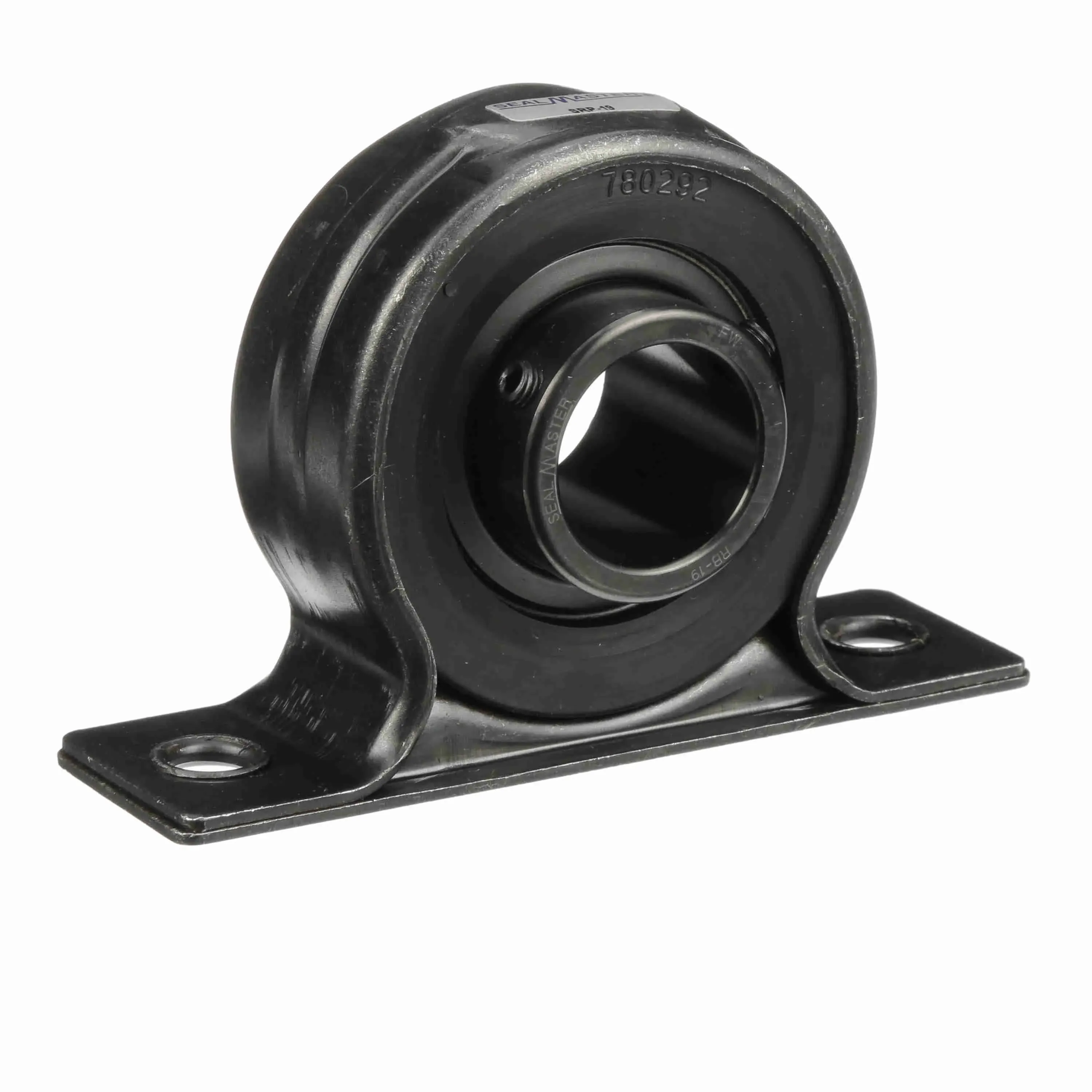

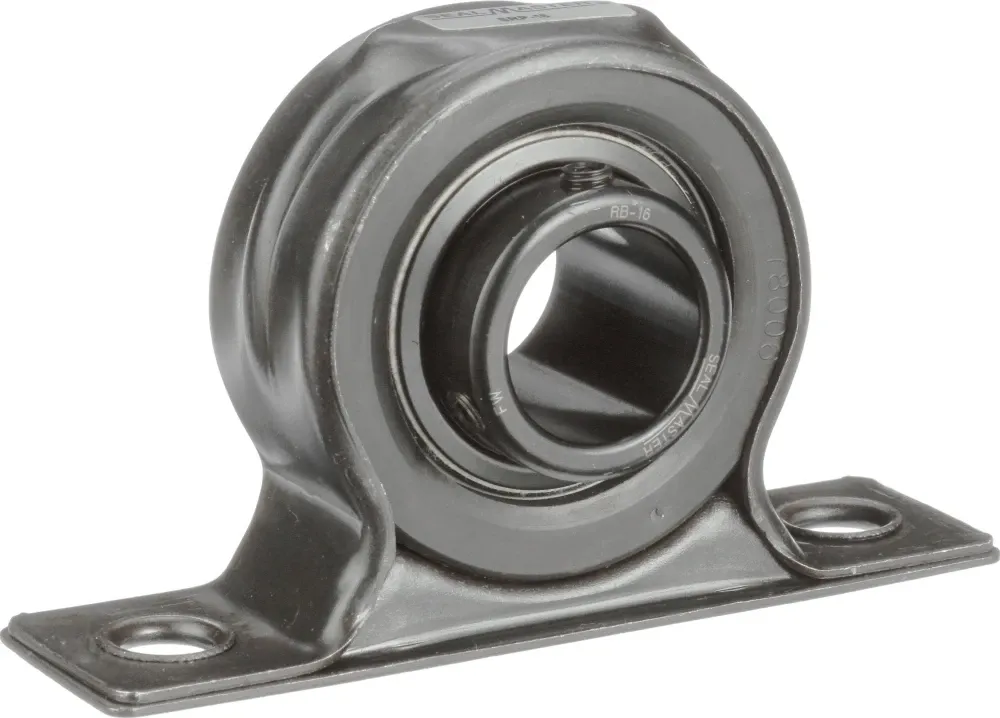

SRP-19C | - | - | - | - | - | - | - | - | €187.58 | |
 |
SRP-15 | - | - | - | - | - | - | - | - | €133.21 | |
 |
SRP-16C | - | - | - | - | - | - | - | - | €146.57 | |
 |

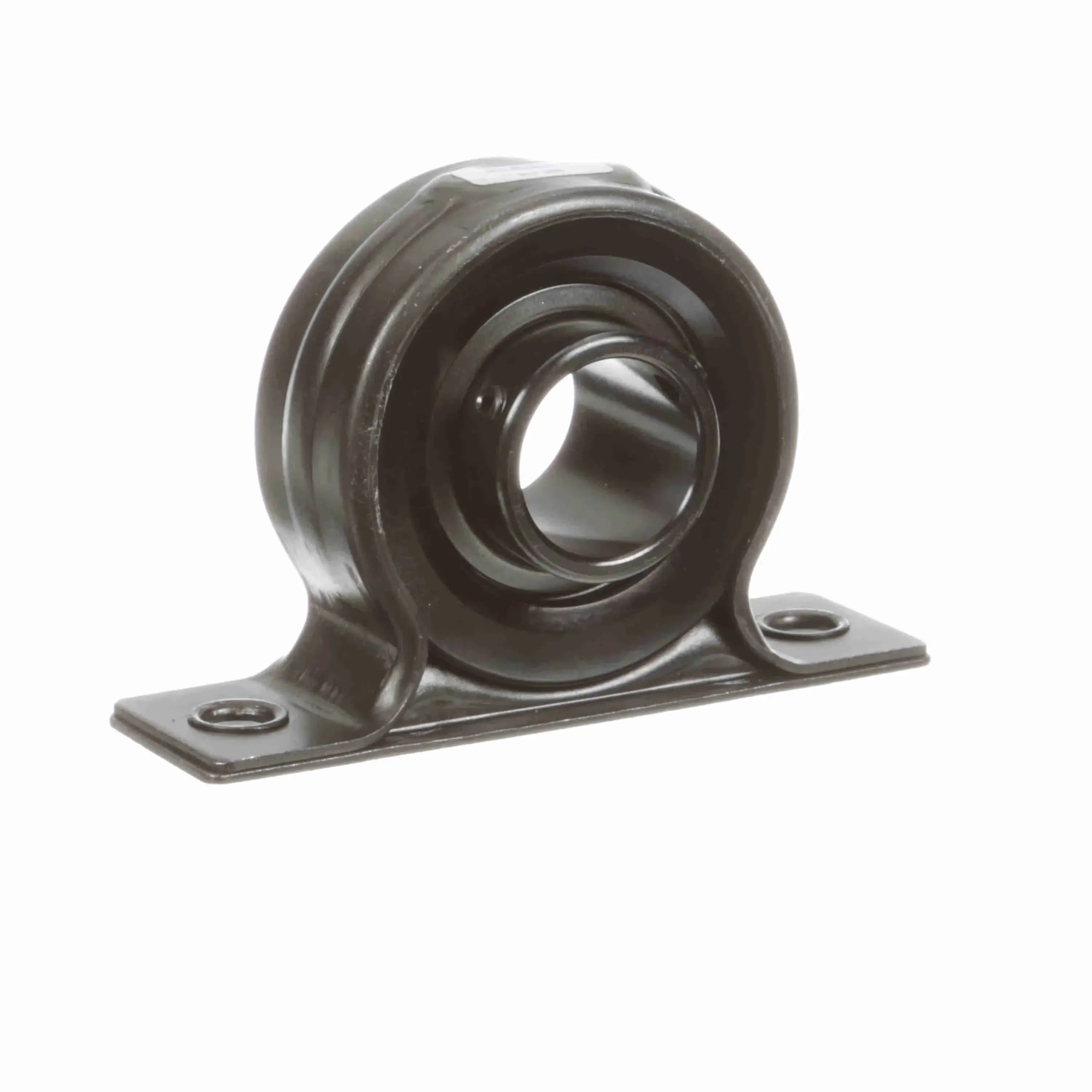

SRP-20R | Standard Duty | Set Screw | Stamped Steel | Steel | 5 1/4" | 1.62" | 3.38" | 4 1/8" | €512.53 | |
 |

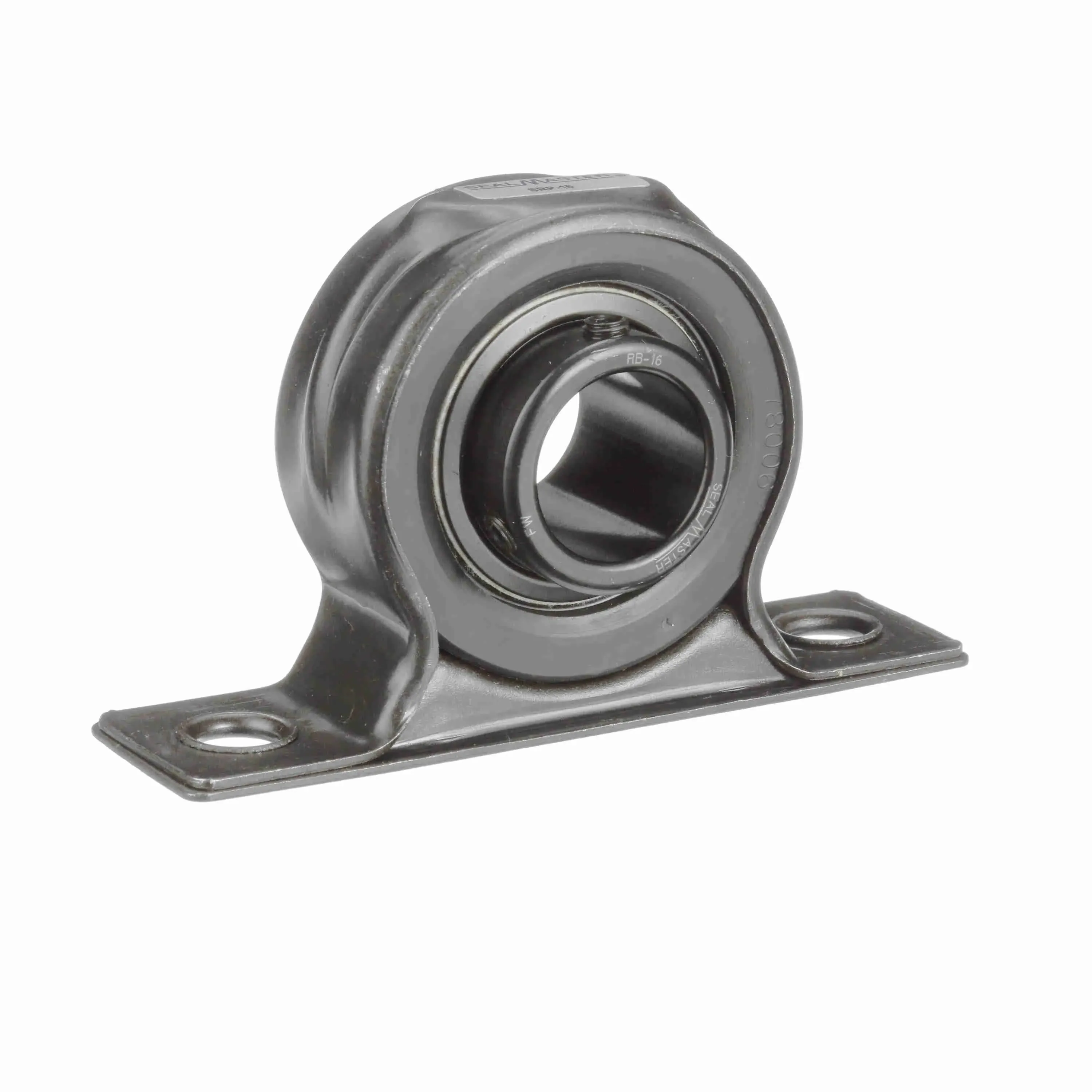

SRP-16 | Standard Duty | Set Screw | Stamped Steel | Steel | 4 3/4" | 1.38" | 2.81" | 3 5/8" | €358.02 | |
 |
SRP-18 | - | - | - | - | - | - | - | - | €229.66 | |
|
SRP-14 | Radial Ball | Set Screws | Steel | Alloy Steel | 4.75" | 1.437" | 2.812" | 3 5/8" | €495.43 |
