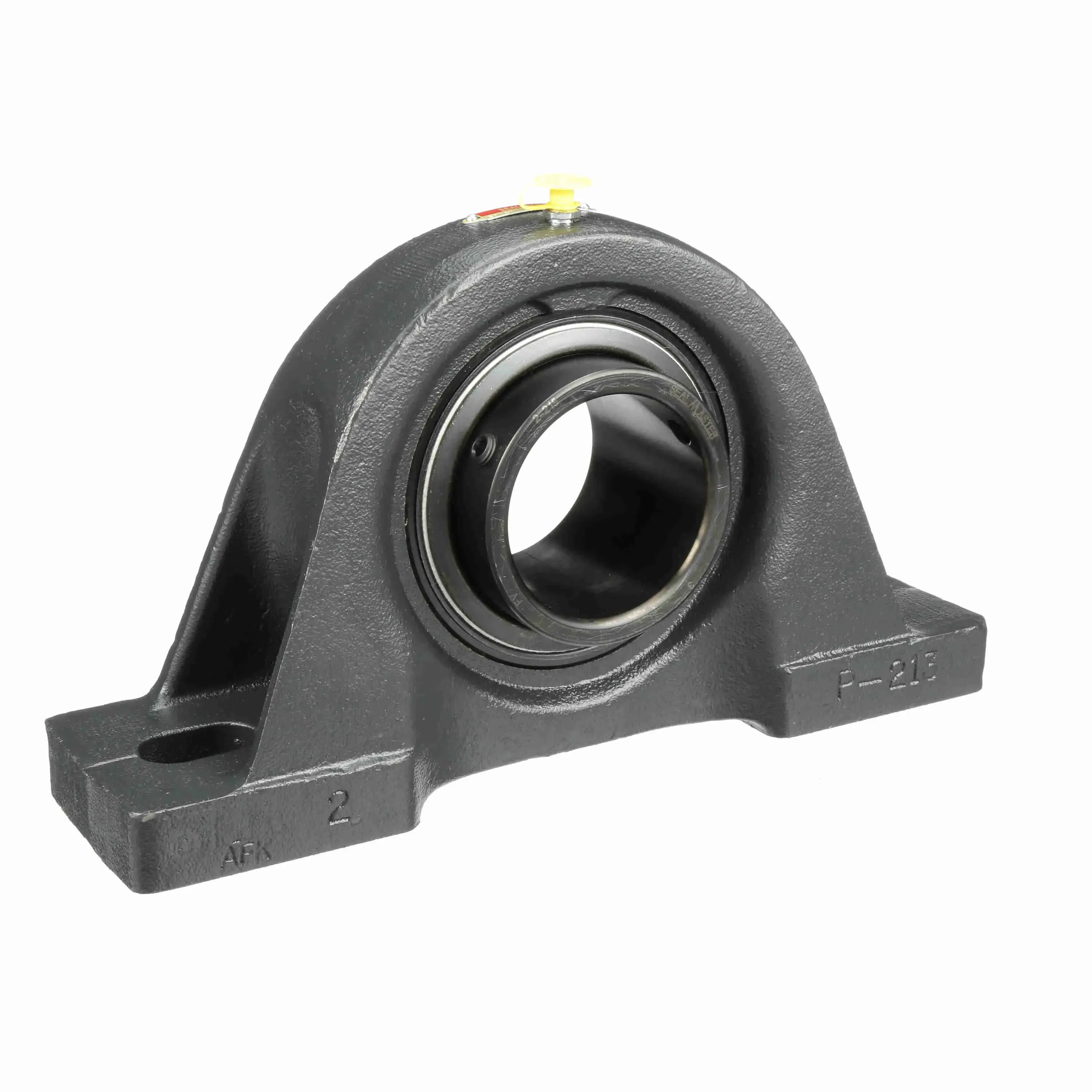

SEALMASTER SP-47 700628 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Get it by Friday, Aug 21
€1,068.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 13" |
| Base To Center Height | 3 3/4" |
| Base Width | 3.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 3/4" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Standard |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-215 |
| Inside Ring Outside Dia. | 3.641" |
| Length | 14 1/4" |
| Length Through Bore | 3.063" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 10 3/4" |
| Max. Speed | 2450 RPM |
| Min. Bolt Spacing | 9 1/4" |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 7.19" |
| Overall Length | 13" |
| Overall Width | 3.38" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 2 15/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Width | 8.06" |
Shipping Info:
| Ship weight (kg) | 11.71 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Width | Bolt Size | Overall Height | Base Width | Dynamic Load Capacity | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP-25C | Contact Seal | - | - | - | - | - | - | - | €1,737.20 | |
|
SP-24C | Single Lip Contact Seal | 1 1/2" | 2.38" | 5/8" | 4 14/25" | 2.38" | 7340 lbs. | 2 5/16" | €353.35 | |
|
SP-47C | - | 2 15/16" | 3.38" | 3/4" | 7.19" | 3.38" | 14839 lbs. | 3 3/4" | €1,246.01 | |
 |
SP-31 CXU | - | - | - | - | - | - | - | - | €486.17 | |
 |
SP-23 CSK | Standard Felt Seal | - | - | - | - | - | - | - | €455.12 | |
 |
SP-14C | Contact Seal | - | - | - | - | - | - | - | €266.55 | |
 |
SP-31 | Felt Labyrinth Seal | 1 15/16" | 2 1/2" | 5/8" | 5.31" | 2 1/2" | 7889 lbs. | 2 3/4" | €463.00 |
