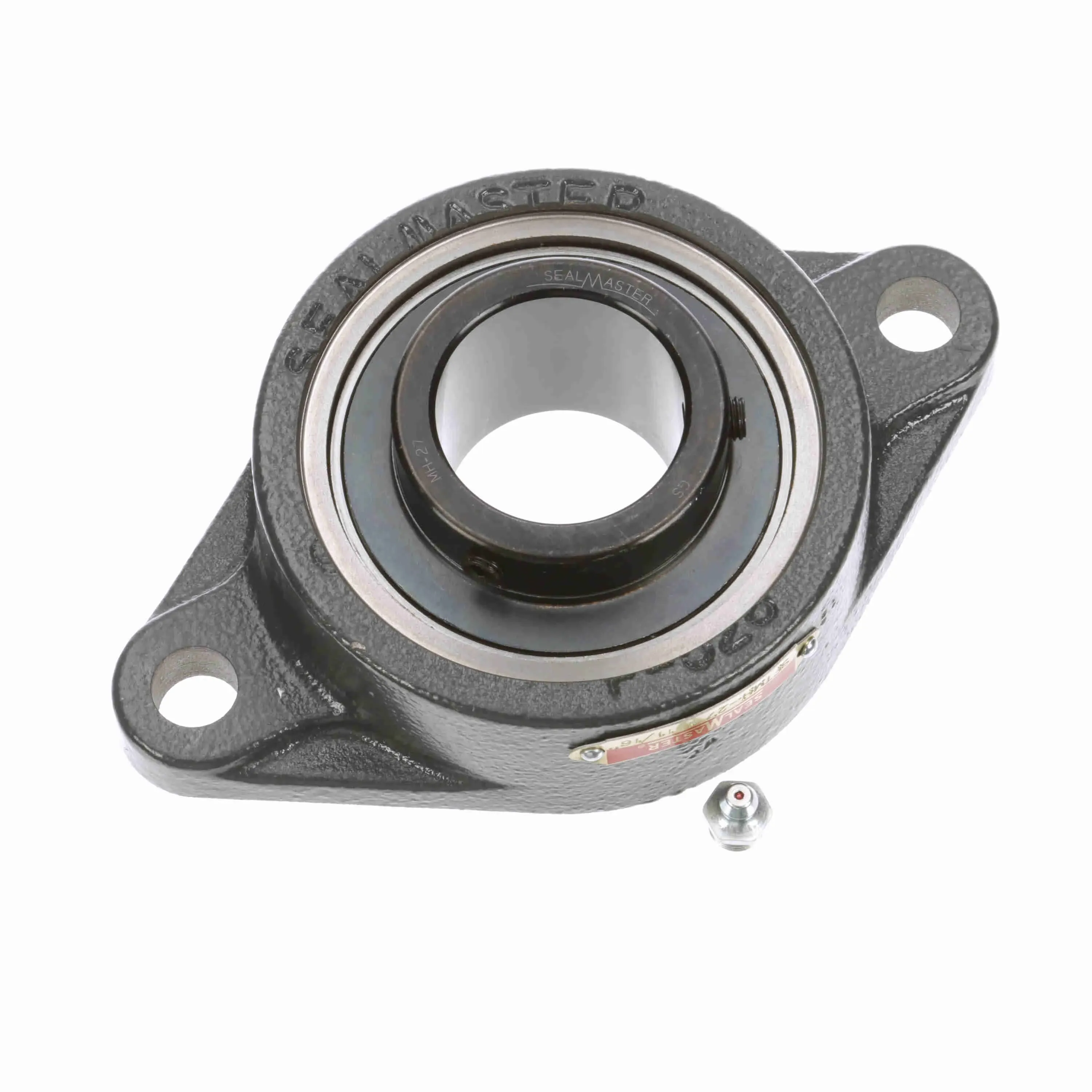

SEALMASTER SFTMH-27 711634 Flange Ball Bearing, 2 Bolt, Black Oxided, Setscrew Lock, 1.688 Inch
Get it by Tuesday, Sep 1
€188.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 5.8438" |
| Bore Dia. | 1 11/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | MH-27 |
| Inside Ring Outside Dia. | 2.297" |
| Length Through Bore | 1.938" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.047" |
| Overall Height To End Cap | 3" |
| Overall Length | 7.06" |
| Overall Width | 4.38" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
Shipping Info:
| Ship weight (kg) | 2 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 5.84 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Length Through Bore | Lubrication Type | Bolt Size | Overall Height | Foot Height | Grease Fitting Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFTMH-32T | 2" | Contact Seal | 3 5/32" | Relubricatable | - | - | - | - | €1,151.85 | |
 |
SFTMH-20 | - | - | - | - | - | - | - | - | €429.84 | |
 |
SFTMH-27T | 1 11/16" | Single Lip Contact Seal | 2" | Lithium Complex NLGI 2 Grease | 9/16" | 2.109" | 14/25" | 1/4"-28 | €208.38 | |
 |
SFTMH-24 | - | - | - | - | - | - | - | - | €770.30 | |
 |
SFTMH-31T CSK | 1 15/16" | Single Lip Contact Seal | 2.17" | Lithium Complex NLGI 2 Grease | 5/8" | 2.219" | 14/25" | 1/8" | €234.69 | |
 |
SFTMH-23T CSK | 1 7/16" | Single Lip Contact Seal | 1.81" | Lithium Complex NLGI 2 Grease | 1/2" | 1.81" | 14/25" | 1/4"-28 | €166.72 | |
 |
SFTMH-208T | 40 mm | - | - | - | - | - | - | - | €294.69 |
