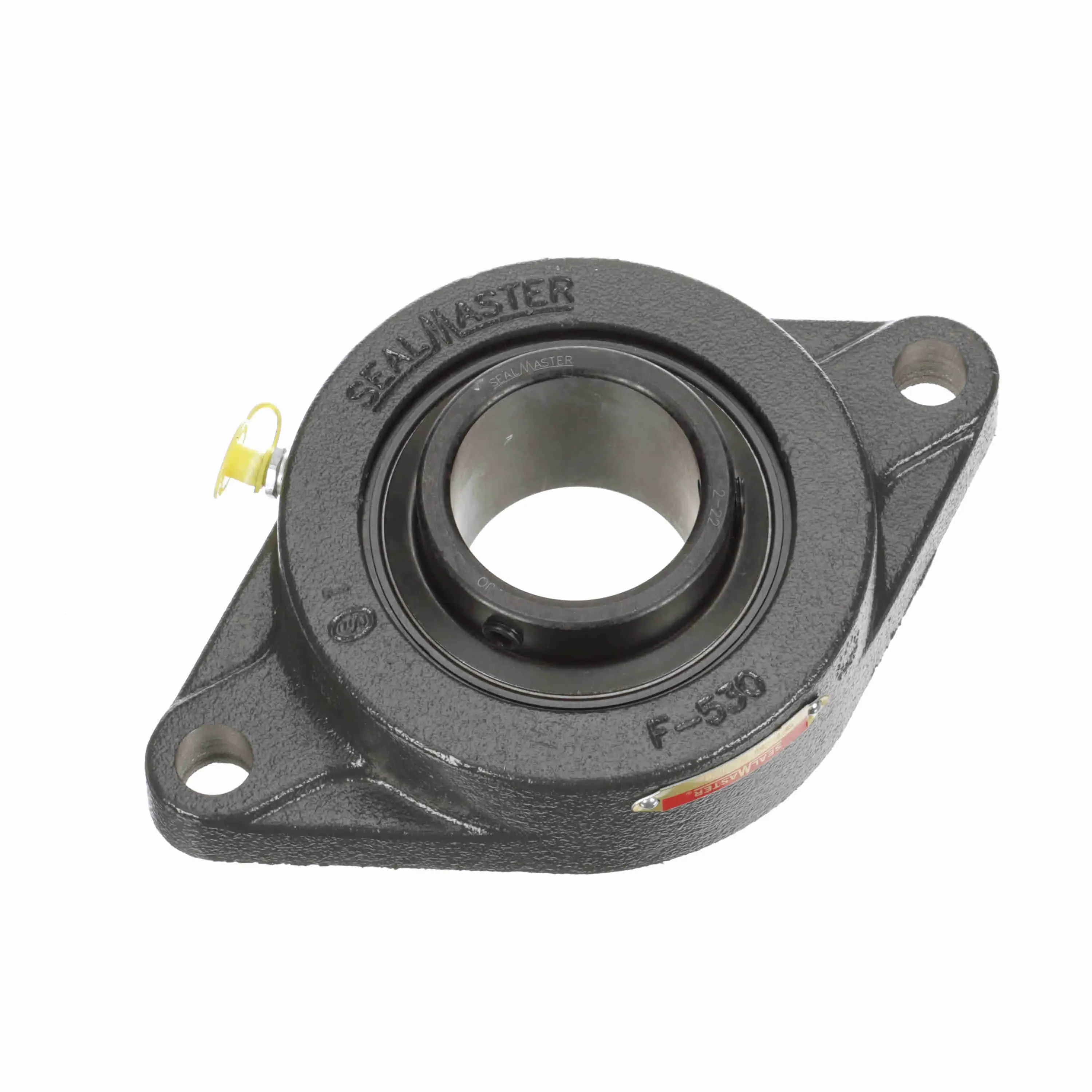

SEALMASTER SFT-34 700562 Flange Bearing, 2 Bolt, 2-1/8 Inch Bore, Cast Iron, Set Screws, 8-13/16 Inch Length
Item: BD8MTTModel: SFT-34Cross Ref: 44A573 / 700562
7 In Stock
Ships within 2 days via
5.00% off
€1,201.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.984" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bolt Spacing | 7 1/4" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 13/16" |
| Foot Height | 0.81" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Included | Set Screw |
| Included Bearing | UC211-34 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-22 |
| Inside Ring Outside Dia. | 2.719" |
| Length Through Bore | 2.188" |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Height | 7 1/4" |
| Mount Hole Center To Center Length | 7 1/4" |
| Mount Hole Size | 41/64" |
| Mounting Bolt Size | 9/16" |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.313" |
| Overall Length | 8 1/2" |
| Overall Width | 5 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Static Radial Load Capacity | 6601 lbf. |
Shipping Info:
| Ship weight (kg) | 3.71 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Max. Operating Temp. | Housing Type | Rolling Element | Overall Width | Overall Height | Housing Color | Foot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €177.69 | |
 |
SFT-14T | 7/8" | 220°F | Flange, Two Bolt | Ball Bearing | 2 3/4" | 1.498" | Black | 0.53" | €167.27 | |
 |
SFT-12C | 3/4" | 220°F | Flange, Two Bolt | Ball Bearing | 2.38" | 1.281" | Black | 11/25" | €112.50 | |
 |
SFT-31 BEV CRY | - | - | - | - | - | - | - | - | €235.97 | |
 |
SFT-20 | 1 1/4" | 220°F | Flange, Two Bolt | Ball Bearing | 3 3/4" | 1 3/4" | Black | 14/25" | €449.06 | |
 |
SFT-8 | 1/2" | 220°F | - | - | 2.31" | 1.281" | Black | 11/25" | €345.08 | |
 |
SFT-207 DRT | - | 220°F | Two Bolt Flange | Ball | - | - | - | - | €329.92 |
