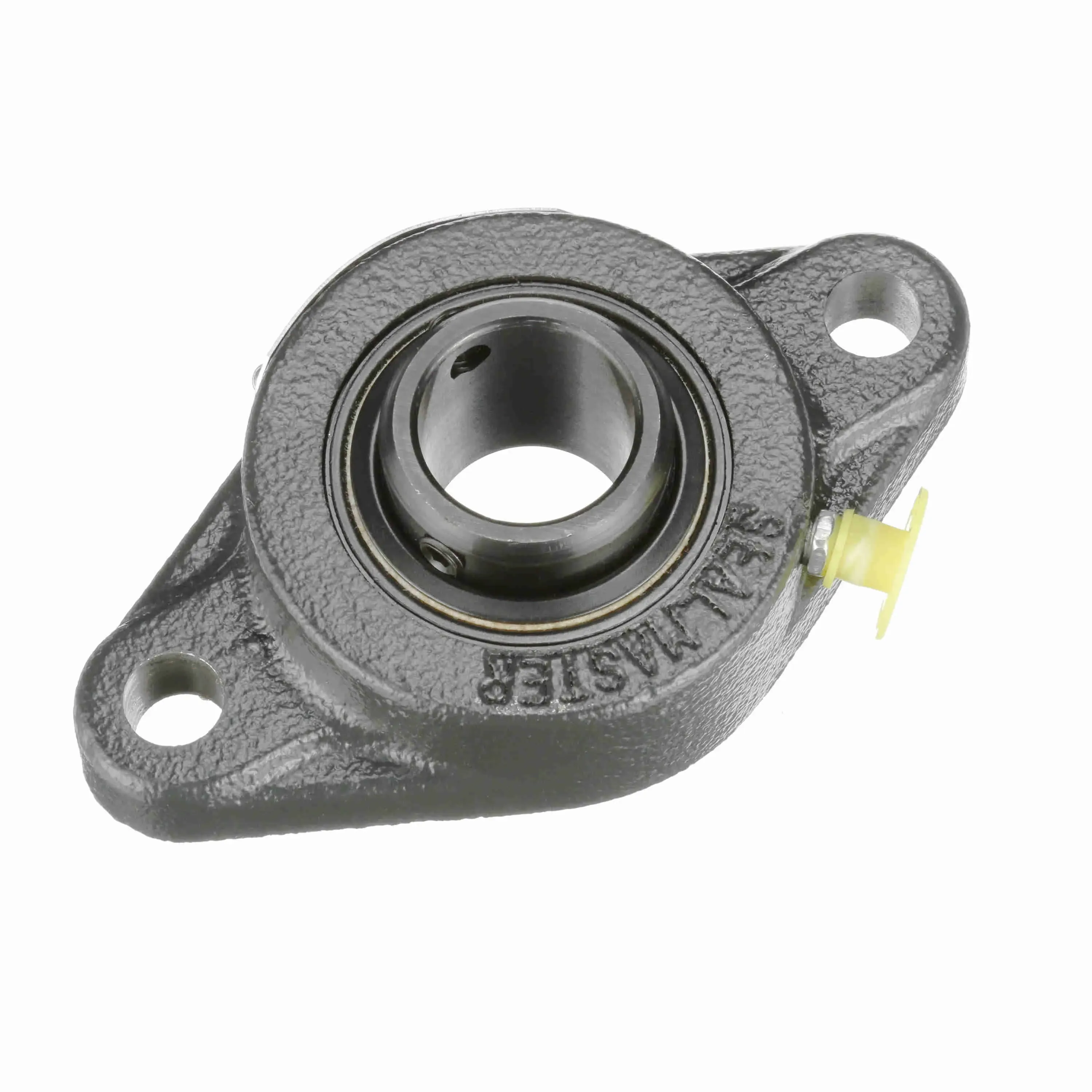

SEALMASTER SFT-16 HT 724120 Flange Bearing, 2 Bolt, 1 Inch Dia, Setscrew Locking, Cast Iron Housing, Nomex Seal
Get it by Tuesday, Dec 23
€214.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 3.8891" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert | 2-1 HT |
| Length Through Bore | 1 3/8" |
| Lubrication Type | Synthetic Nlgi 2 High Temperature Grease |
| Max. Operating Temperature | 400°F |
| Max. Speed | 2750 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.438" |
| Overall Length | 4 22/25" |
| Overall Width | 2 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | Cast Iron | - | €177.69 | |
 |
SFT-14T | 7/8" | Cast Iron | - | €167.27 | |
 |
SFT-208C | - | - | - | €296.80 | |
 |
SFT-210C | - | - | - | €394.97 | |
 |
SFT-12C | 3/4" | Cast Iron | - | €112.50 | |
 |
SFT-208TMC CTY | - | - | - | €237.90 | |
|
SFT-25 BEV DRY | - | - | - | €268.53 |
