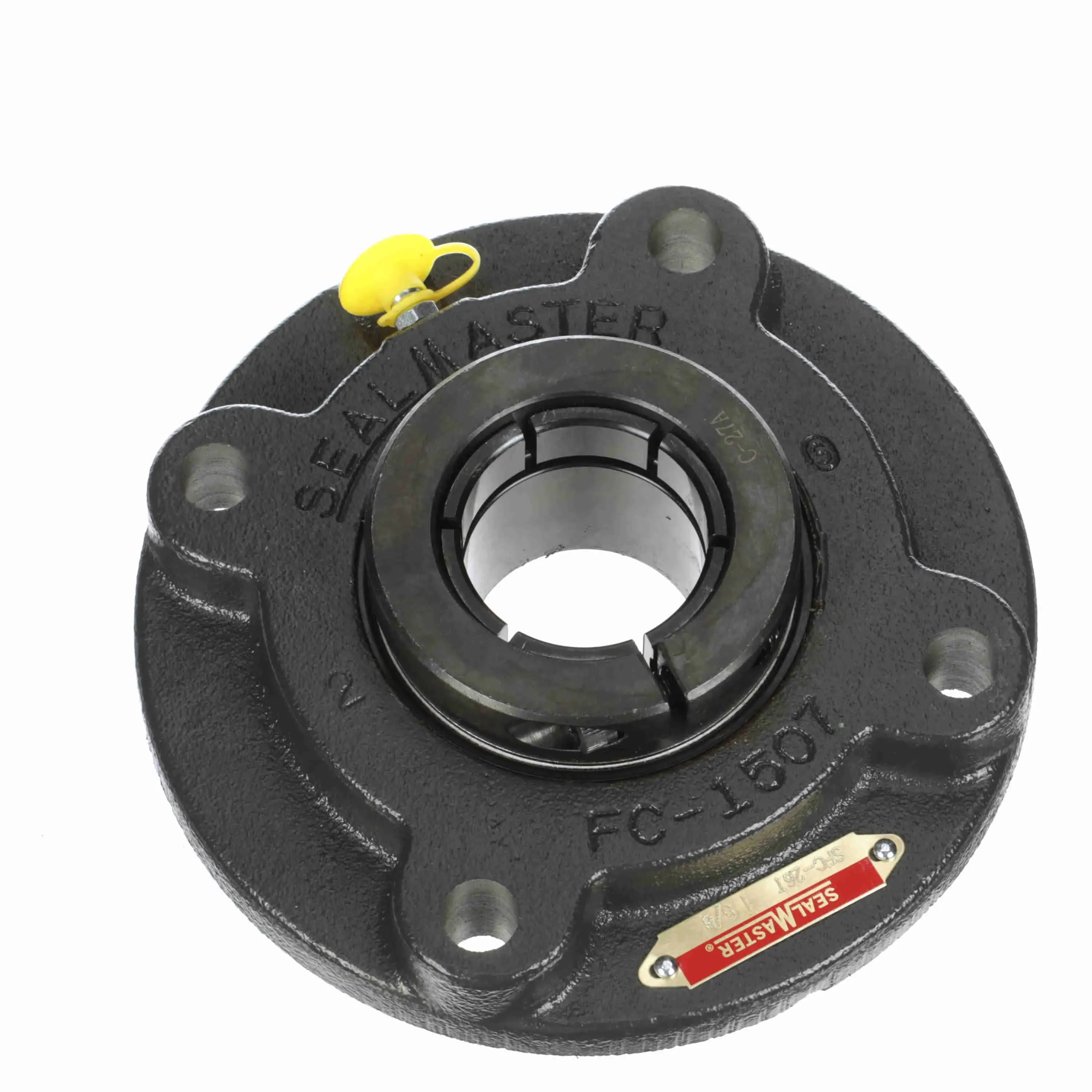

SEALMASTER SFC-26T 705467 Flange-Mount Ball Bearing Unit, 1-5/8 Inch Bore
Get it by Tuesday, Sep 1
€415.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Circle | 5 1/8" |
| Bolt Size | 7/16" |
| Bore Dia. | 1 5/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 6.13" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-110T SFB |
| Inside Ring Outside Dia. | 2.297" |
| Length Through Bore | 2.06" |
| Locking Collar Outside Dia. | 3" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.06" |
| Overall Length | 6.13" |
| Overall Width | 6.13" |
| Pilot Configuration | Piloted |
| Pilot Depth | 0.41" |
| Pilot Dia. | 4 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0994 cPS |
| Vibration Frequency Outer Ring Defect | 0.0673 cPS |
| Vibration Frequency Roller Spin | 0.0417 cPS |
Shipping Info:
| Ship weight (kg) | 2.99 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 6.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Max. Operating Temp. | Housing Type | Rolling Element | Pilot Dia. | Overall Width | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SFC-32R | Felt Labyrinth Seal | 2" | 220°F | Flange, Piloted | Ball Bearing | 4 1/4" | 6.13" | 2.03" | €453.22 | |
 |
SFC-24 | Felt Labyrinth Seal | 1 1/2" | 220°F | Flange, Piloted | Ball Bearing | 3 5/8" | 5 1/4" | 1.94" | €287.73 | |
 |
SFC-211TMC | Single Lip Contact Seal | 55 mm | 220°F | Flange, Piloted | Ball Bearing | 4 1/2" | 6.38" | 2.33" | €383.35 | |
 |
SFC-24TC | Single Lip Contact Seal | 1 1/2" | 400°F | Flange, Piloted | Ball Bearing | 3 5/8" | 5 1/4" | 2" | €293.67 | |
 |
SFC-24C | Single Lip Contact Seal | 1 1/2" | 400°F | Flange, Piloted | Ball Bearing | 3 5/8" | 5 1/4" | 1.94" | €287.73 | |
 |
SFC-207TM | Standard Felt Seal | - | 250°F | Flange Cartridge | Ball | - | - | - | €1,010.33 | |
 |
SFC-18T | Felt Labyrinth Seal | 1 1/8" | 220°F | Flange, Piloted | Ball Bearing | 3" | 4.38" | 1.61" | €289.44 |
