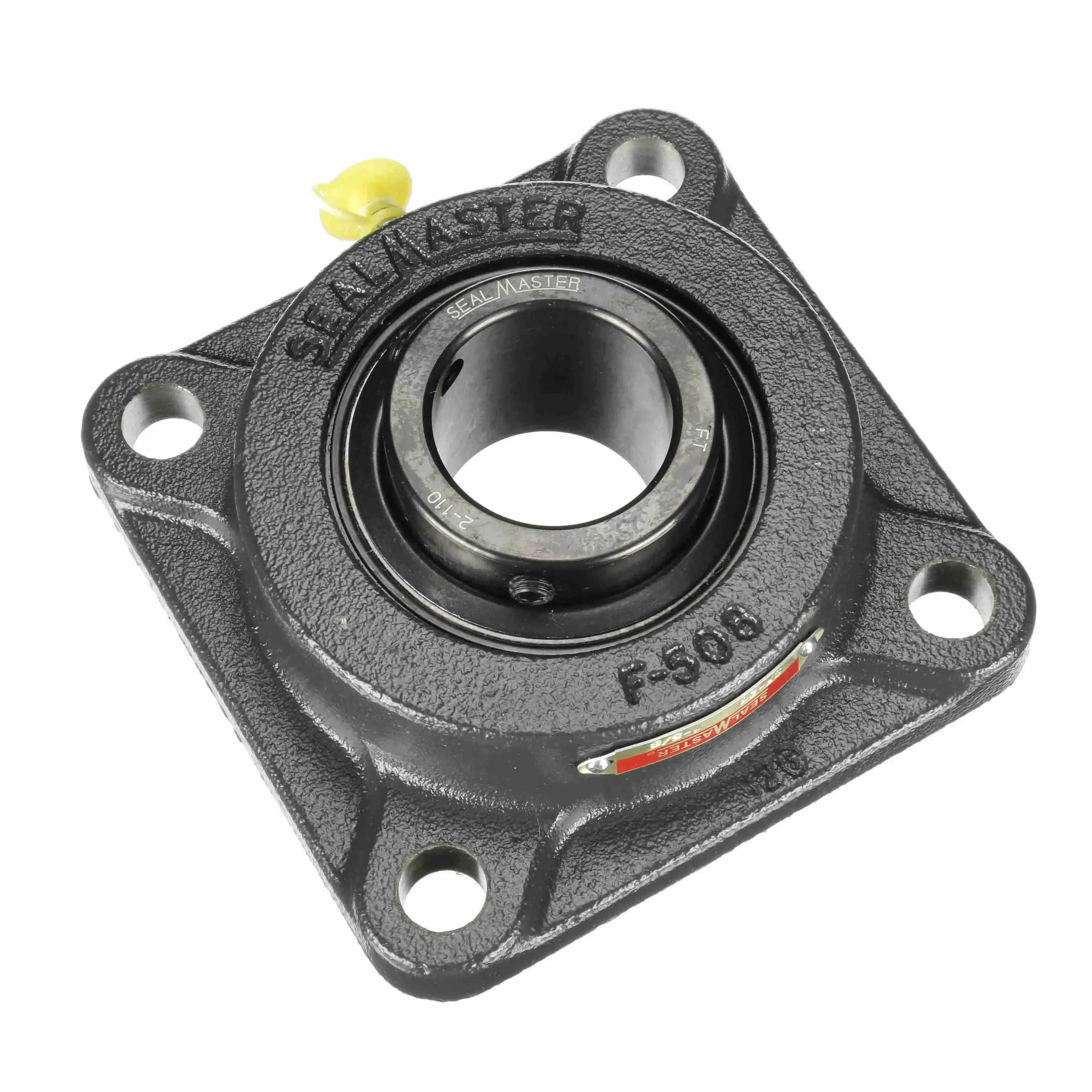

SEALMASTER SF-26 700451 Flange Bearing, 4 Bolt, 1 5/8 Inch Bore, Cast Iron, Set Screws, 5 13/32 Inch Length
Get it by Thursday, Feb 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€553.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.828" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 4 1/8" |
| Bore Dia. | 1 5/8" |
| Bore Diameter | 1 5/8" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Standard |
| Dynamic Load Capacity | 7901 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 9/16" |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Height | 2.19" |
| Housing Backside Inner Dia. | 3 22/25" |
| Housing Backside Inner Diameter | 3.88" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included Bearing | UC209-27 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 2.307" |
| Inner Ring Outside Diameter | 2.307" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-110 |
| Length | 6.06" |
| Length Through Bore | 1.934" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3800 RPM |
| Maximum Speed | 3800 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 4 1/8" |
| Mount Hole Center-to-center Length | 4 1/8" |
| Mount Hole Size | 5/8" |
| Mounting Bolt Size | 9/16" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 13/32" |
| Overall Length | 5 13/32" |
| Overall Width | 1 59/64" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Shaft Size | 1 5/8" |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Static Radial Load Capacity | 5139 lbf. |
| Width | 5.94" |
Shipping Info:
| Ship weight (kg) | 2.69 |
| Ship height (cm) | 15.09 |
| Ship length (cm) | 15.39 |
| Ship width (cm) | 5.56 |
| Country of Origin | MX |
