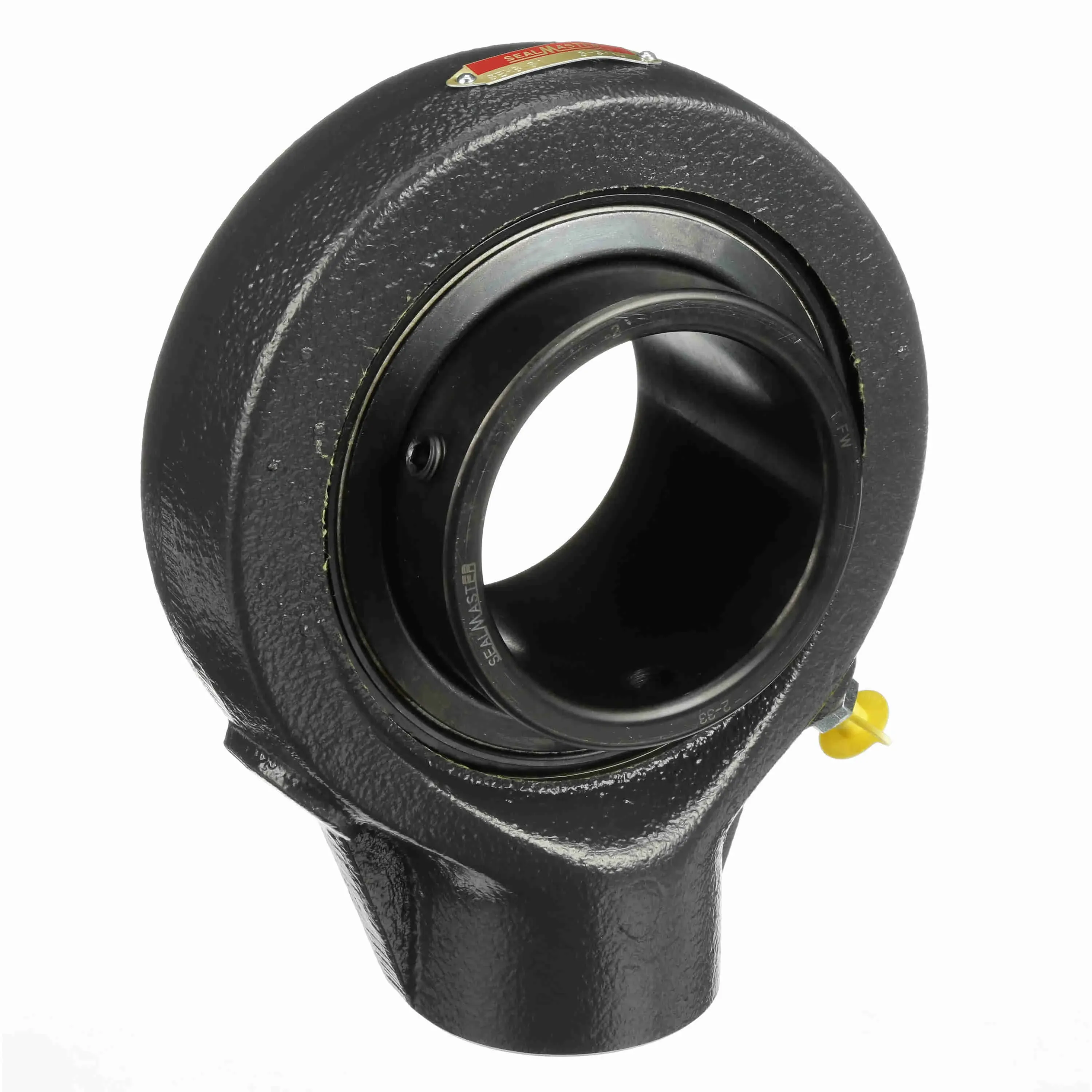

SEALMASTER SEHB-51 700425 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, 3.188 Inch
Get it by Wednesday, Feb 25
€1,476.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base To Center Height | 4 7/8" |
| Base Width | 2.81" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bore Dia. | 3 3/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.938" |
| Duty Series | Standard |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3 11/25" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 1 21/25" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.922" |
| Inner Ring Outside Diameter | 3.922" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-33 |
| Length | 8.88" |
| Length Through Bore | 3.248" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2250 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 8.31" |
| Overall Width | 3 1/4" |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Series | SCHB Series |
| Shaft Locking Type | Set Screw |
| Shaft Size | 3.19" |
| Size Code | 2-33 |
| Static Load Rating | 13174 lbs. |
| Thread Depth | 1 1/4" |
| Width | 9.06" |
Shipping Info:
| Ship weight (kg) | 7.17 |
| Ship height (cm) | 23.01 |
| Ship length (cm) | 22.56 |
| Ship width (cm) | 8.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Width | Overall Length | Overall Height | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEHB-15 | Hanger Unit | Set Screw | 15/16" | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 3-015 | €375.55 | |
 |
SEHB-15 BDZ | Hanger Unit | Set Screw | 15/16" | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 3-015 | €379.33 | |
 |
SEHB-15C | - | - | - | - | - | - | - | - | €386.83 | |
 |
SEHB-16 | Hanger Unit | Set Screw | 1" | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 3-1 | €294.72 | |
 |
SEHB-16C | Hanger Unit | Set Screw | 1" | 1 14/25" | 3.13" | 4.06" | Single Lip Contact Seal | 3-1C | €294.72 | |
 |
SEHB-16C CR | - | - | - | - | - | - | - | - | €409.60 | |
 |
SEHB-16T | Hanger | - | - | - | - | - | Standard Felt Seal | - | €395.87 |
