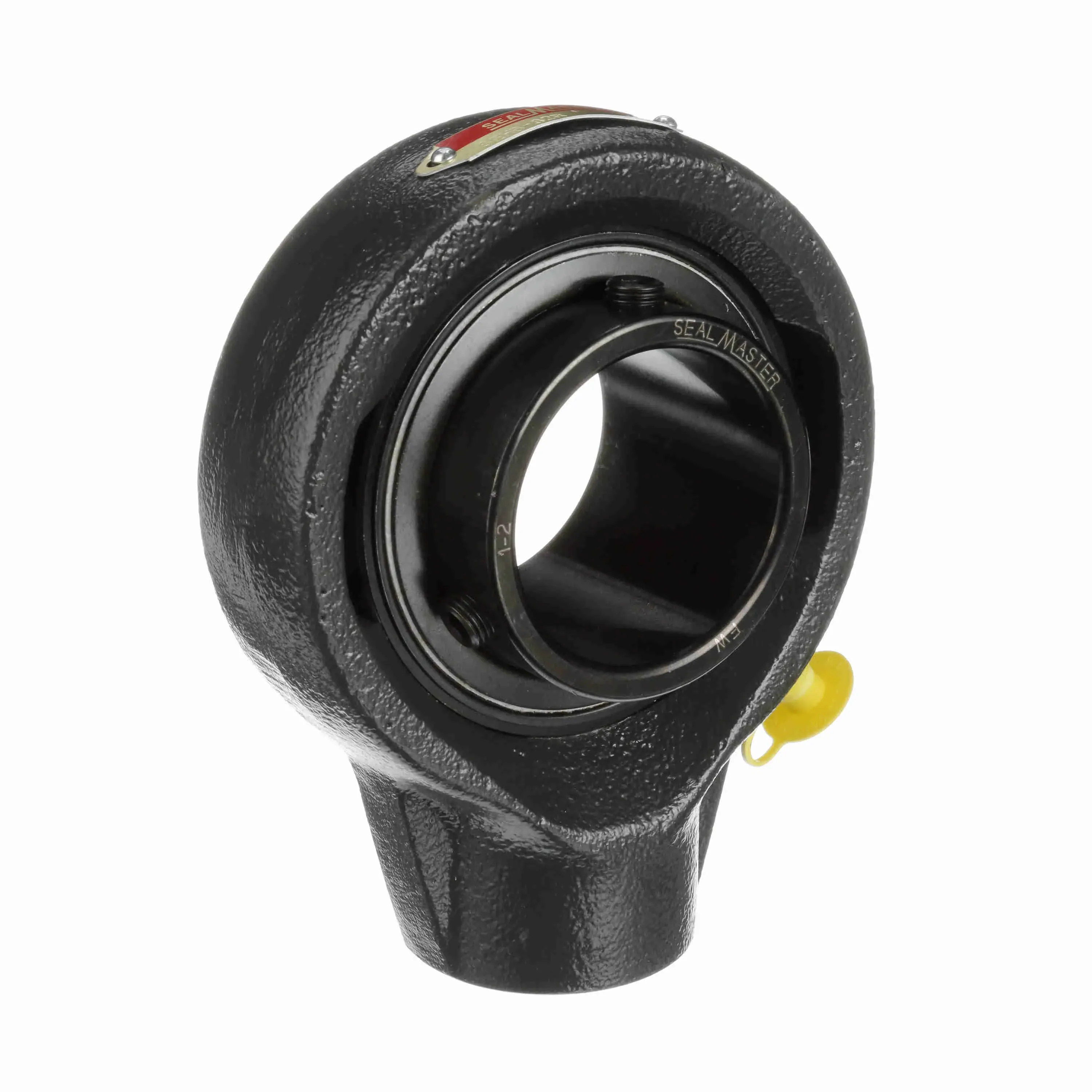

SEALMASTER SEHB-32R 700409 Mounted Cast Iron Hanger Unit Ball Bearing
Get it by Tuesday, Dec 23
€541.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base To Center Height | 3 1/4" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.281" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Hanger Block |
| Housing Type | Hanger Unit |
| Housing Width | 1.31" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | 1-2 |
| Length Through Bore | 2.027" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 11/25" |
| Overall Length | 4.38" |
| Overall Width | 2.03" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | SEHB Series |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Thread Depth | 0.81" |
| Thread Size | 1"-11.5 |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Shipping Info:
| Ship weight (kg) | 2.11 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Width | Overall Length | Overall Height | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEHB-22CCR | - | - | - | - | - | - | - | - | €514.70 | |
 |
SEHB-32R BDZ | Hanger Unit | Set Screw | 2" | 2.03" | 4.38" | 5 11/25" | Felt Labyrinth Seal | 1-2 | €547.17 | |
 |
SEHB-206 | Hanger Unit | Set Screw | 30 mm | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 5206 | €375.55 | |
 |
SEHB-46 | - | Set Screw | 2 7/8" | 3.06" | 6 1/2" | - | - | 2-214 | €1,439.32 | |
 |
SEHB-305C | - | - | - | - | - | - | - | - | €375.27 | |
|
SEHB-19T | Hanger | - | - | - | - | - | Standard Felt Seal | - | - | RFQ
|
 |
SEHB-15 BDZ | Hanger Unit | Set Screw | 15/16" | 1 14/25" | 3.13" | 4.06" | Felt Labyrinth Seal | 3-015 | €379.33 |
