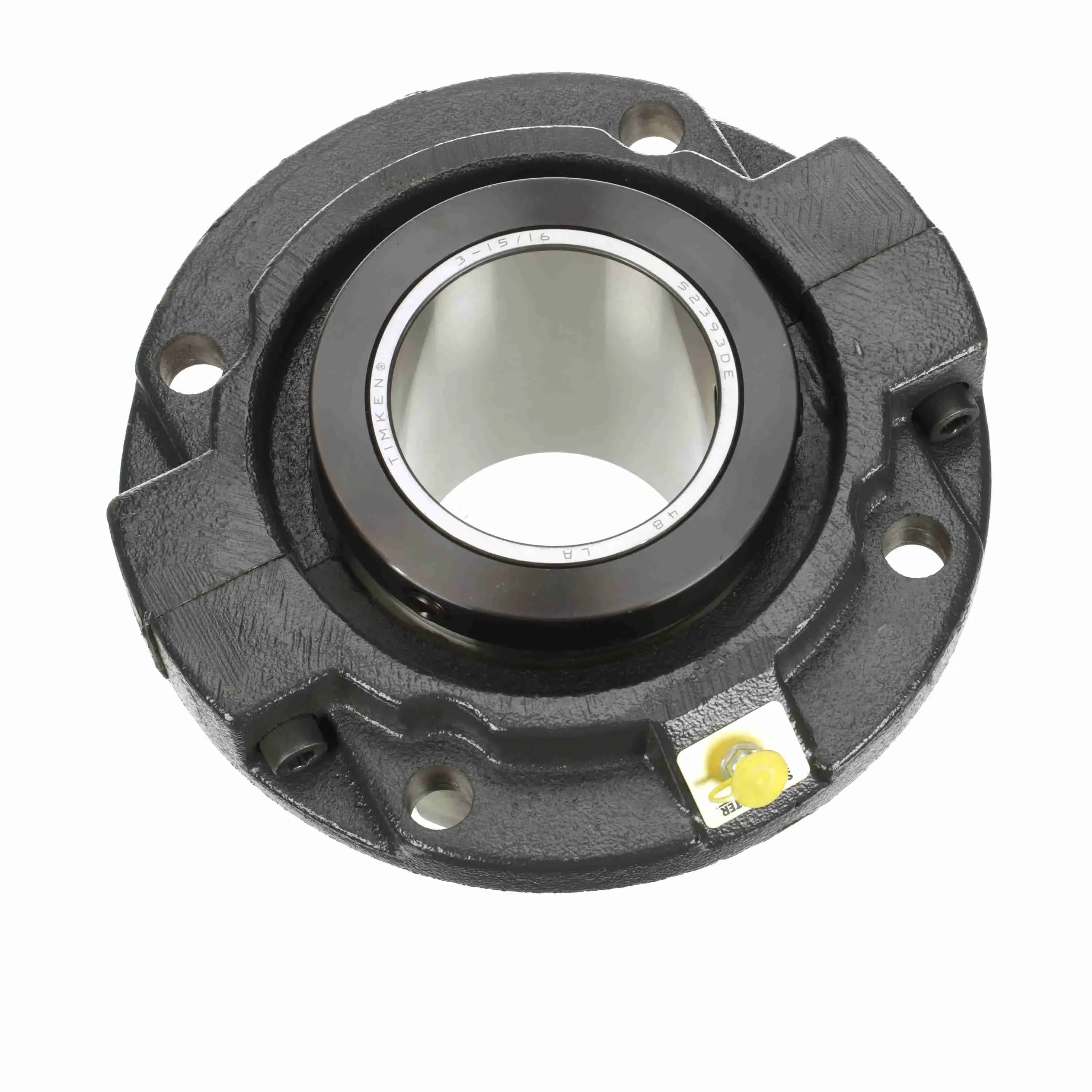

SEALMASTER RFP 315 550341 Flange Bearing, 4 Bolt, Tapered Roller, 3 15/16 Inch Bore, Set Screws, Circular
Get it by Tuesday, Dec 23
10.00% off
€5,376.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Dia. | 9.375" |
| Bolt Circle Diameter | 9.375" |
| Bolt Size | 3/4" |
| Bore Dia. | 3 15/16" |
| Bore Diameter | 3 15/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 3.813" |
| Closure | Double Sealed |
| Collar Outer Dia. | 6" |
| Collar Outer Diameter | 6" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 20980 lbf. |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 15/16" |
| Foot Height | 0.938" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 6.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Outside Dia. | 10 7/8" |
| Housing Outside Diameter | 10 7/8" |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| I.d. | 3 15/16" |
| Included Bearing | Rfp-315 |
| Includes | Set Screw |
| Includes Mounting Hardware | Yes |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 6 1/4" |
| Inner Ring Width | 5.937" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-315 |
| Internal Clearance | Standard |
| Length | 11" |
| Load Direction | Radial, Thr.Ust |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1250 RPM |
| Maximum Misalignment Angle | 3° |
| Maximum Speed | 1250 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 9 3/8" |
| Mount Hole Center-to-center Length | 9 3/8" |
| Mounting Bolt Size | 3/8" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 10 7/8" |
| Overall Length | 10 7/8" |
| Pilot Configuration | With Pilot |
| Pilot Diameter | 8 1/8" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Rolling Element Rows | 2 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Series | Rfp |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3 15/16" |
| Static Radial Load Capacity | 9800 lbf. |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 24.84 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |

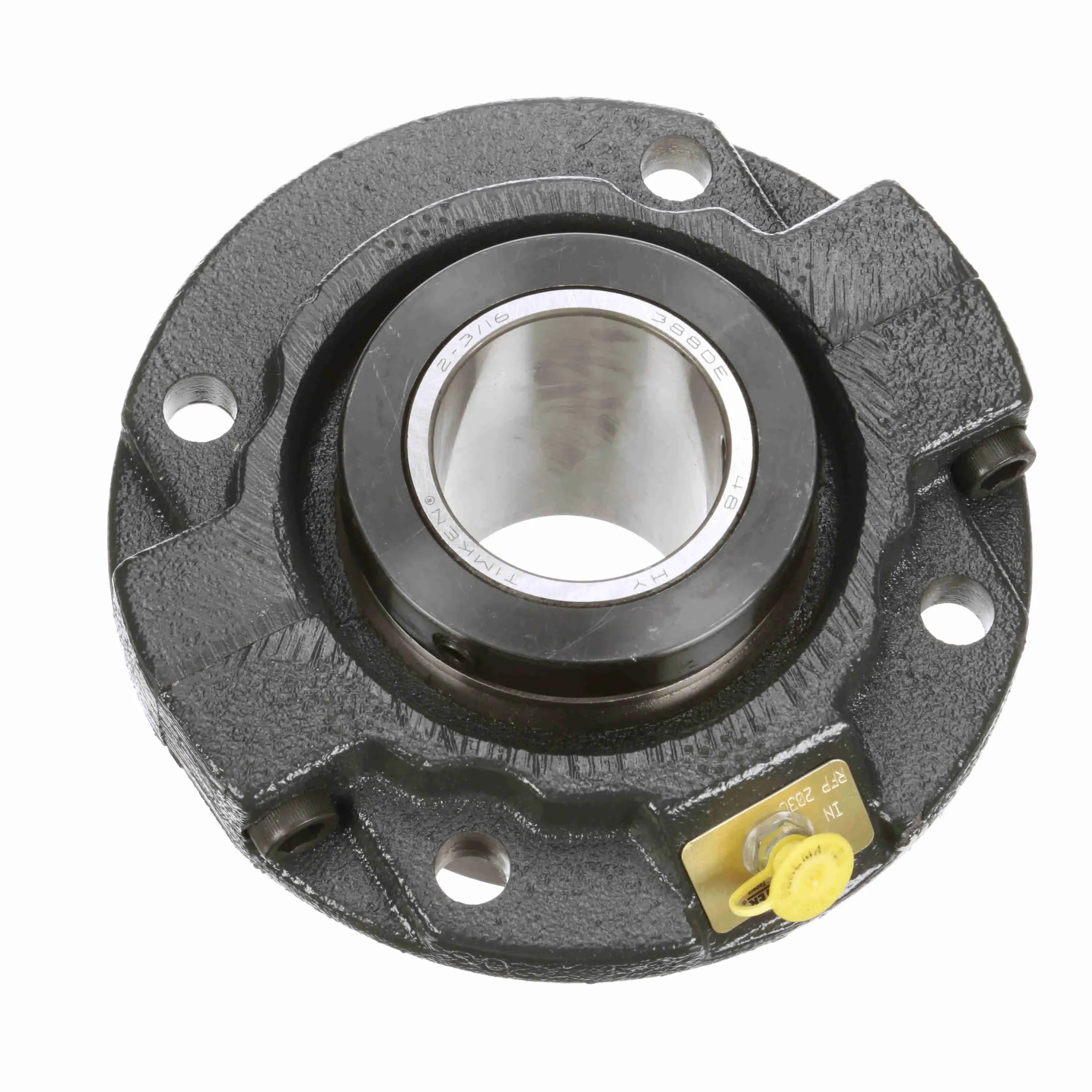

RFP 203C | 2 3/16" | Cast Iron | - | €1,112.63 | |
 |
RFP 70MM | - | - | - | €1,800.85 | |
 |
RFP 212C | 2 3/4" | Cast Iron | - | €3,285.94 | |
 |

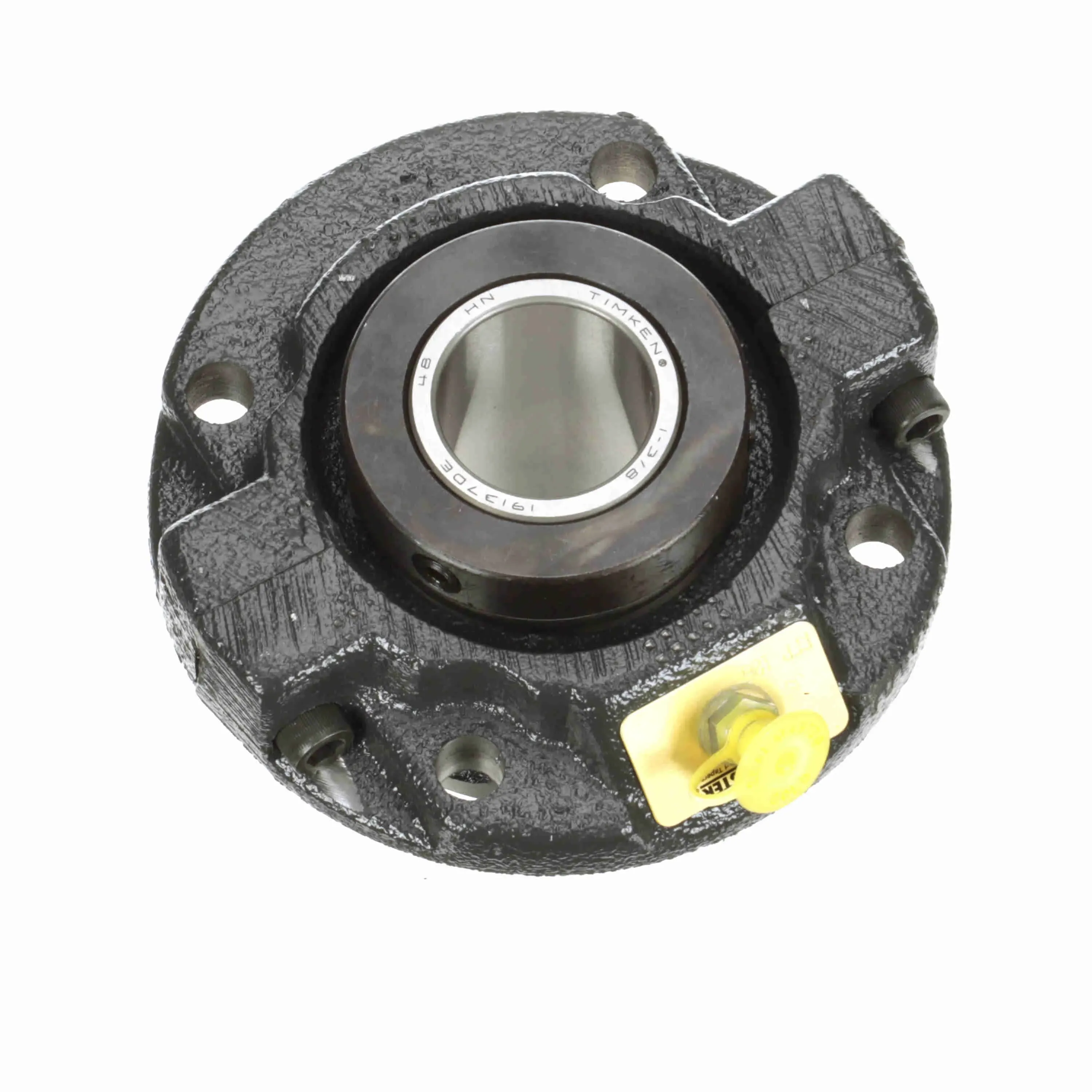

RFP 106 | 1 3/8" | Cast Iron | - | €6,005.55 | |
|
RFP 208C CR | - | - | - | €1,168.00 | |
|
RFP 400C CR | - | - | - | €3,912.08 | |
 |

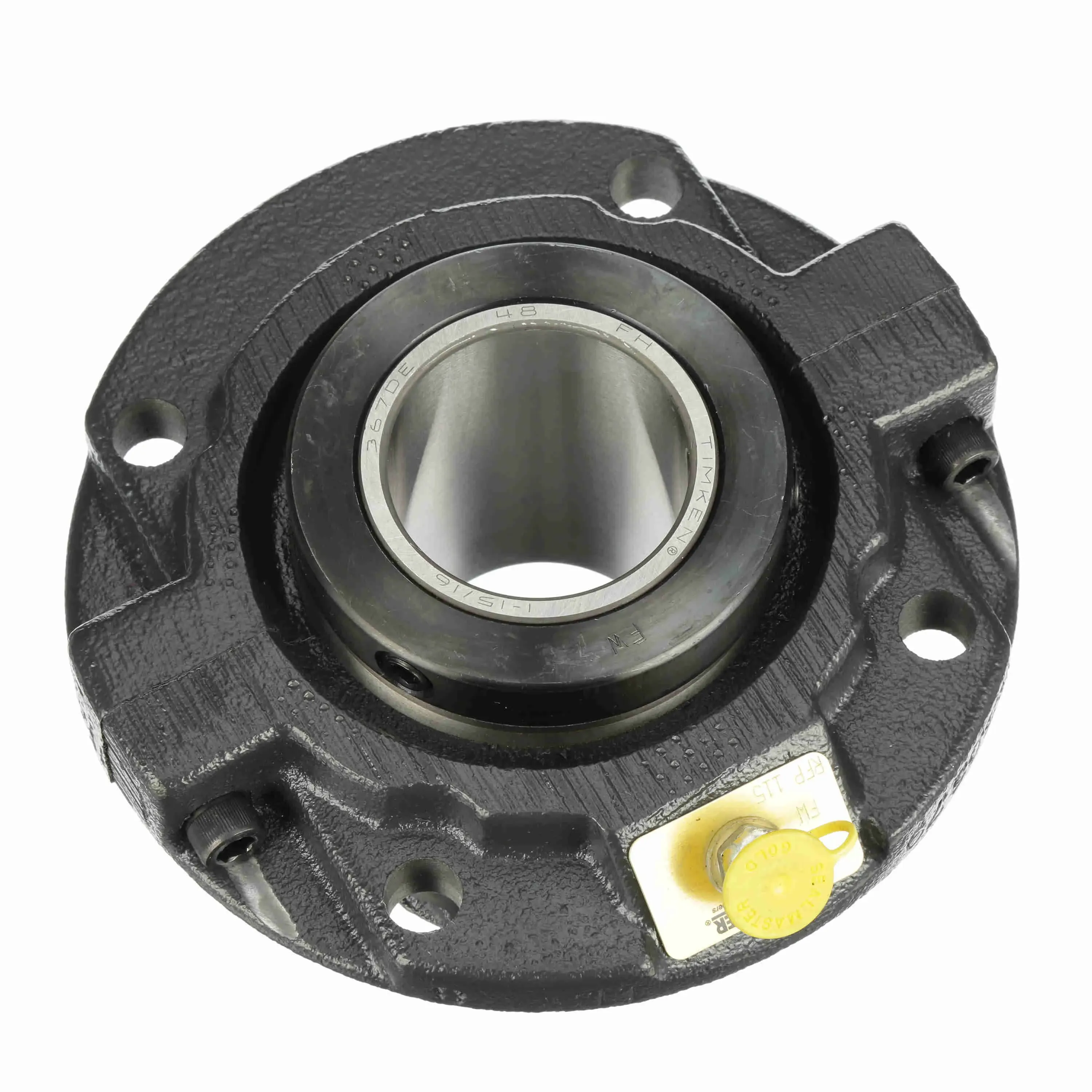

RFP 115 | 1 15/16" | Cast Iron | - | €1,642.00 |
