SEALMASTER RFP 104C 559900 Tapered Roller Bearing, 1-1/4 Inch Bore, 4-Bolt Piloted Flange Mount
Item: BD7BZDModel: RFP 104CCross Ref: 559900
7 In Stock
Ships within 2 days via
€836.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bolt Center Dia. | 4 1/8" |
| Bolt Size | 3/8" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Centerline To Front Face | 1 7/8" |
| Collar Outside Dia. | 2 1/4" |
| Duty Series | Standard , Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.438" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 3.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 2 3/4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI 104C |
| Inside Dia. | 1 1/4" |
| Internal Clearance | Standard |
| Length | 6.38" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 4000 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Length | 5" |
| Pilot Configuration | With Pilot |
| Pilot Dia. | 3 3/8" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Flinger | No |
| Series | Rfp |
| Shaft Size | 1 1/4" |
| Width | 6.38" |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 16.21 |
| Ship length (cm) | 16.21 |
| Ship width (cm) | 9.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Shaft Size | Seal Flinger | Housing Color | Bearing Insert Finish | Pilot Dia. | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RFP 203C | 2 3/16" | - | 2 3/16" | No | Gray | Uncoated | 5" | 4 1/4" | €1,112.63 | |
|
RFP 212C | 2 3/4" | - | 2 3/4" | No | Gray | Uncoated | 6 3/8" | 8.63" | €3,285.94 | |
 |
RFP 106 | 1 3/8" | - | 1 3/8" | Yes | Gray | Uncoated | 3 5/8" | 3.63" | €6,005.55 | |
 |
RFP 315 | 3 15/16" | - | 3 15/16" | Yes | Gray | Uncoated | 8 1/8" | 6.63" | €5,973.78 | |
 |
RFP 115 | 1 15/16" | - | 1 15/16" | Yes | Gray | Uncoated | 4 1/2" | 3.63" | €1,642.00 | |
 |
RFP 108 | 1 1/2" | - | 1 1/2" | Yes | Gray | Uncoated | 4 1/4" | 3.63" | €1,744.17 | |
 |

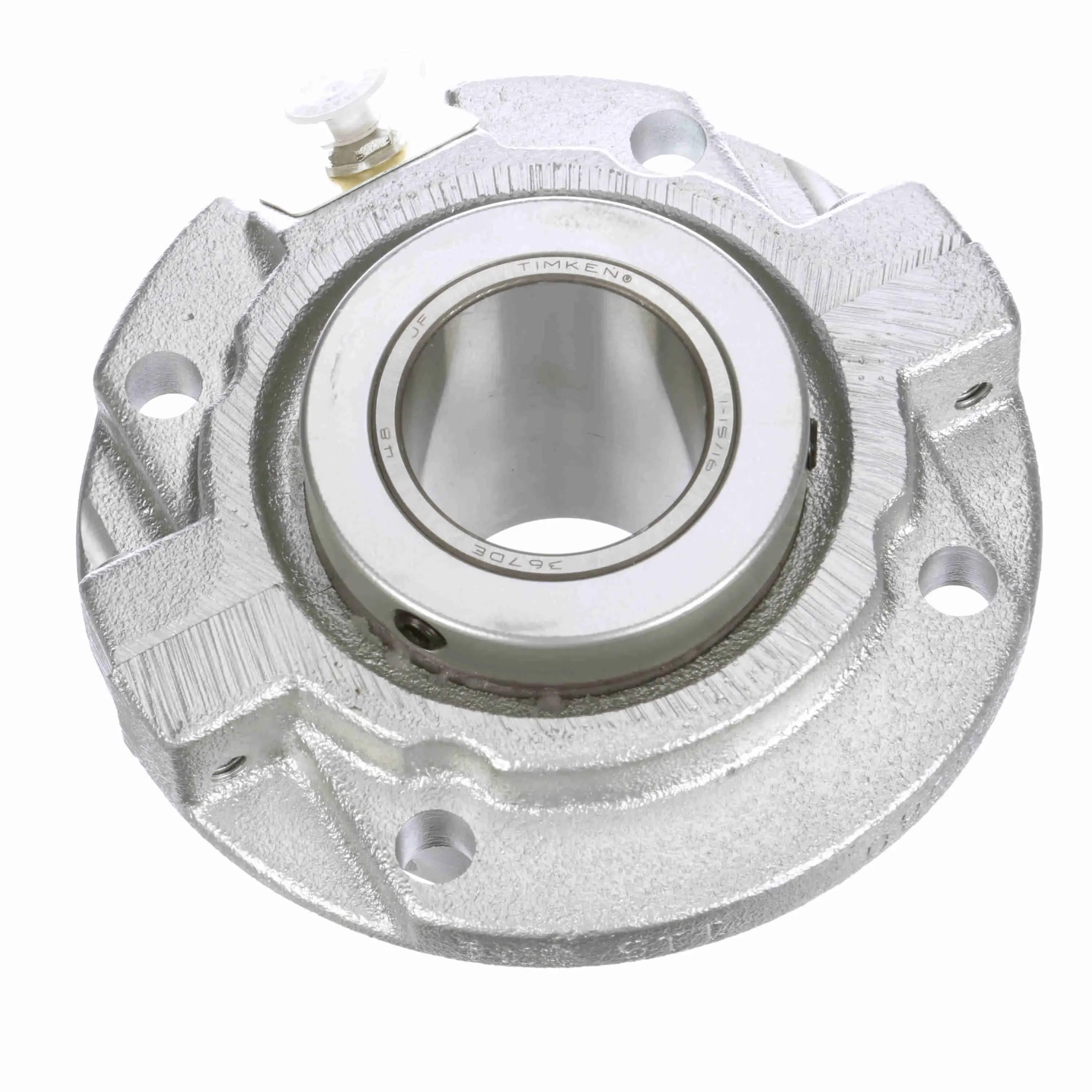

RFP 115C CR | 1 15/16" | - | 1 15/16" | No | Silver, Gray | Uncoated | 4 1/2" | 3.63" | €1,402.05 |
