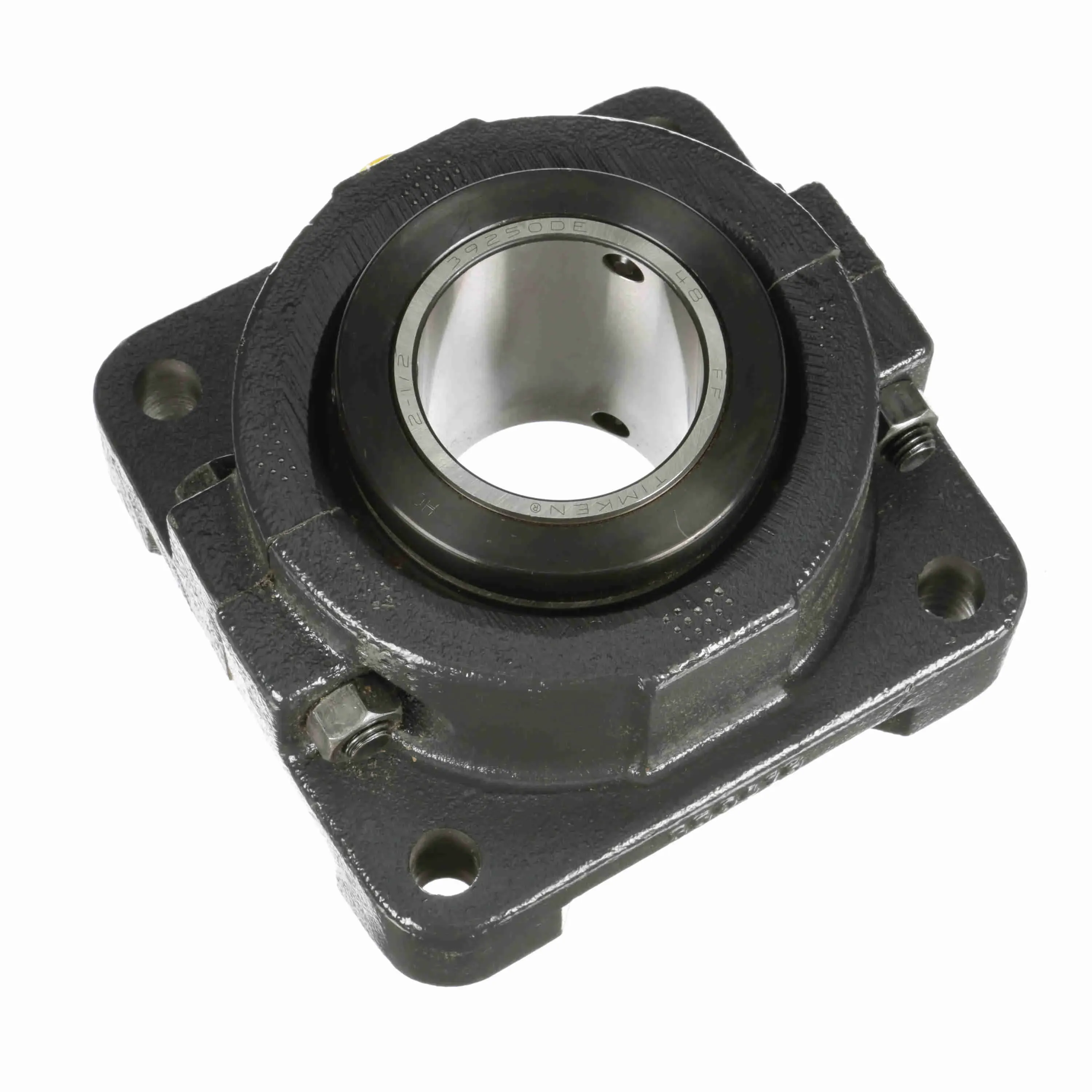

SEALMASTER RFB 208C 559888 Tapered Roller Bearing, 2-1/2 Inch Bore, 4-Bolt Flange Mount
Get it by Thursday, Dec 18
€1,188.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bolt Center-to-center Length | 5 3/8" |
| Bolt Size | 5/8" |
| Bore Dia. | 2 1/2" |
| Bore Shape | Straight |
| Centerline To Front Face | 2" |
| Collar Outer Dia. | 3.938" |
| Collar Outer Diameter | 3.938" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 1/2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4 1/4" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Width | 6 7/8" |
| Htc | 8483.20.4080 |
| I.d. | 2 1/2" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-208C |
| Internal Clearance | Standard |
| Length | 7 1/4" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 2000 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.188" |
| Overall Length | 6 7/8" |
| Pilot Configuration | No Pilot |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | Rfb |
| Shaft Size | 2 1/2" |
| Width | 7 1/4" |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 10.8 |
| Country of Origin | US |
