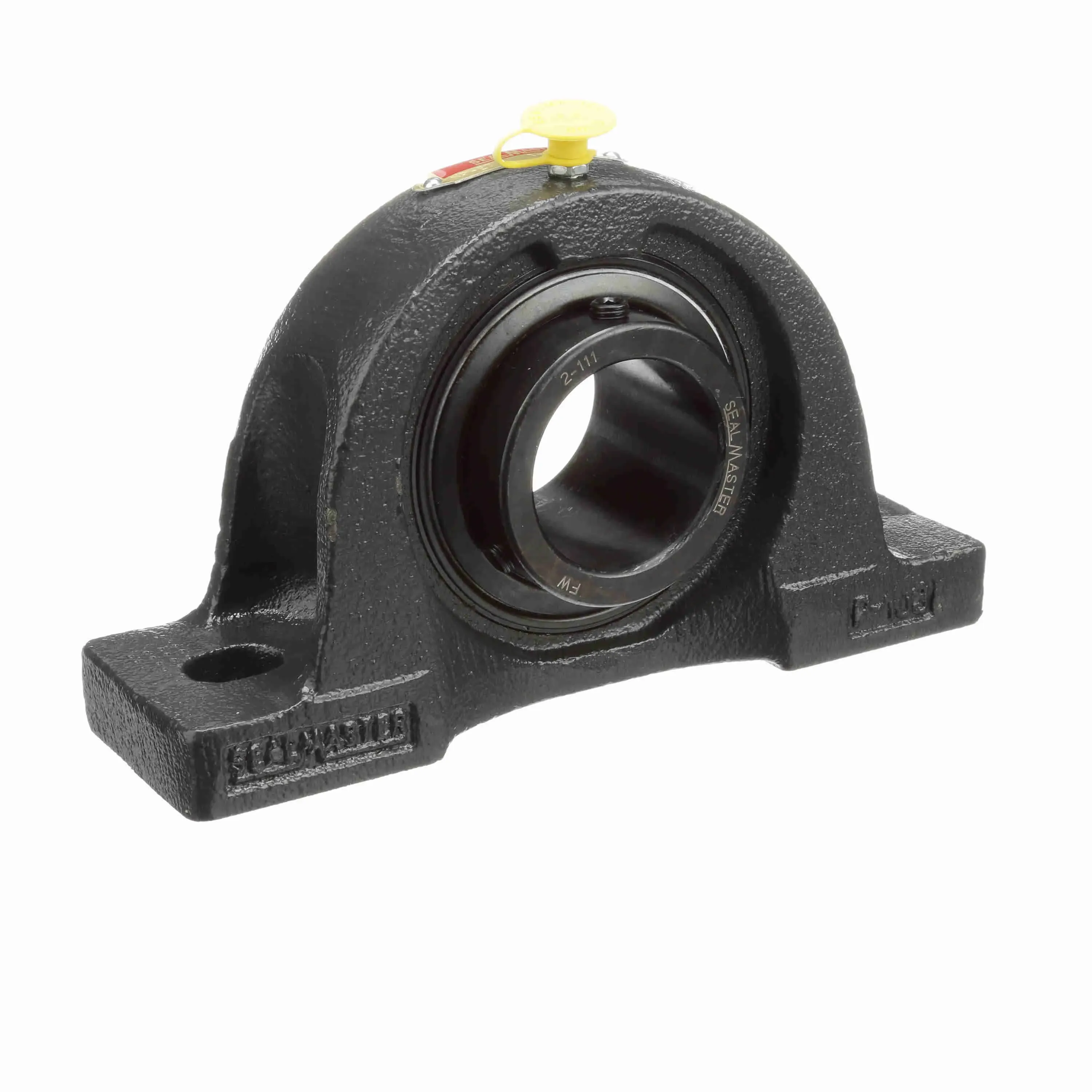

SEALMASTER NP-27 700192 Pillow Block Bearing, 1 11/16 Inch Bore, Cast Iron, Set Screws, 2 1/8 Inch Shaft Ht
Item: BF8HABModel: NP-27Cross Ref: 44A402 / 700192
7 In Stock
Ships within 2 days via
5.00% off
€502.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Base Height | 0.69" |
| Base Length | 7 1/2" |
| Base To Center Height | 2.13" |
| Base Width | 2.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 1/2" |
| Bore Dia. | 1 11/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.188" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 7901 lbs. |
| Dynamic Radial Load Capacity | 7901 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.69" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-111 |
| Inside Ring Outside Dia. | 2.063" |
| Length Through Bore | 1.938" |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 6.06" |
| Max. Misalignment Angle | 2° |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3800 RPM |
| Max. Temp. | 220°F |
| Min. Bolt Spacing | 5 11/25" |
| Min. Temp. | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center To Center Length | 6 3/64" |
| Mounting Bolt Size | 1/2" |
| Mounting Surface To Shaft Center Height | 2 1/8" |
| Mounting Type | Bolt Through |
| No. Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 1/4" |
| Overall Length | 7 1/2" |
| Overall Width | 2.13" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 125 lbs.-in. to 165 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Static Radial Load Capacity | 5139 lbf. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0994 cPS |
| Vibration Frequency Outer Ring Defect | 0.0673 cPS |
| Vibration Frequency Roller Spin | 0.0417 cPS |
Shipping Info:
| Ship weight (kg) | 2.95 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 19.84 |
| Country of Origin | MX |
Product Variants
| Product | Model | Overall Height | Bearing Insert Material | Bore Dia. | Overall Length | Overall Width | Bearing Insert Type | Shaft Locking Type | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | 7" | Alloy, Steel | 2 7/8" | 13" | 3 1/2" | Radial Ball | Set Screw | Pillow Block, Two Bolt | €1,785.96 | |
 |
NP-20 | 3 3/4" | Steel | 1 1/4" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €451.83 | |
 |
NP-31 CXU | 4 14/25" | Steel | 1 15/16" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €245.70 | |
 |
NP-23 CXU | 3 3/4" | Steel | 1 7/16" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €176.72 | |
 |
NP-32RC | 5" | Steel | 2" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €394.97 | |
|
NP-32 CXU | - | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | 5" | Steel | 2 3/16" | 8.63" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €289.44 |
