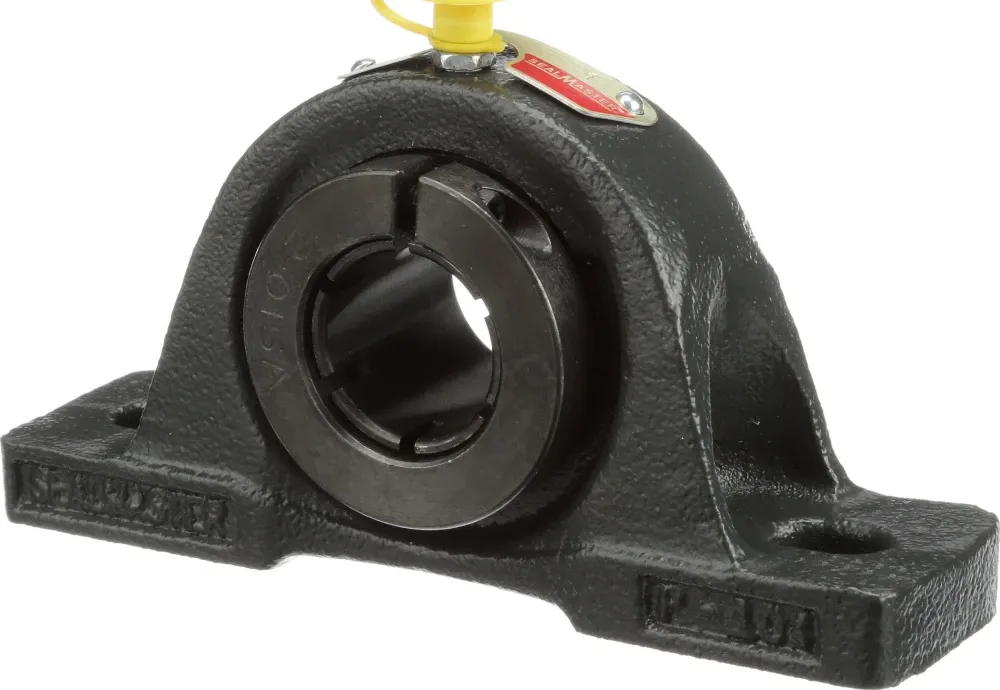

SEALMASTER NP-23T XLO Pillow Block Bearing, 2 Bolt, 1.43 Inch Dia, Skwezloc Locking, Oil Soaked Felt Seal
Item: BE6UHMModel: NP-23T XLO
7 In Stock
Ships within 2 days via
€310.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 6.56" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | PPS |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/25" |
| Duty Series | Standard |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 6.81" |
| Housing Base | Solid |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Pillow Block |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-17T XLO |
| Inside Ring Outside Dia. | 1.851" |
| Length | 4.38" |
| Length Through Bore | 1.81" |
| Locking Collar Outside Dia. | 2.62" |
| Locking Device | Skwezloc Concentric |
| Locking Type | Concentric |
| Lubricant | Oil Coated Only No Factory Grease Fill |
| Max. Bolt Spacing | 5.31" |
| Max. Operating Temp. | 250°F |
| Max. Speed | 1850 RPM |
| Min. Bolt Spacing | 4.69" |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 3/4" |
| Overall Length | 6.56" |
| Overall Width | 1 22/25" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Standard Felt Seal |
| Shaft Size | 1 7/16" |
| Size Code | 2-17 |
| Static Radial Load Capacity | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.007 Hz |
| Vibration Frequency Inner Ring Defect | 0.091 Hz |
| Vibration Frequency Outer Ring Defect | 0.06 Hz |
| Vibration Frequency Roller Spin | 0.039 Hz |
| Width | 2.06" |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 16.67 |
| Ship width (cm) | 4.45 |
Product Variants
| Product | Model | Overall Height | Bearing Insert Material | Bore Dia. | Overall Length | Overall Width | Bearing Insert Type | Shaft Locking Type | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | 7" | Alloy, Steel | 2 7/8" | 13" | 3 1/2" | Radial Ball | Set Screw | Pillow Block, Two Bolt | €1,785.96 | |
 |
NP-20 | 3 3/4" | Steel | 1 1/4" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €451.83 | |
 |
NP-31 CXU | 4 14/25" | Steel | 1 15/16" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €245.70 | |
 |
NP-23 CXU | 3 3/4" | Steel | 1 7/16" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €176.72 | |
 |
NP-32RC | 5" | Steel | 2" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €394.97 | |
|
NP-32 CXU | - | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | 5" | Steel | 2 3/16" | 8.63" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €289.44 |
